Choosing types of asphalt testing should come from the fundamentals. You don’t need to be a civil engineer to notice when asphalt fails. For instance, like potholes, surface cracks, or grooves worn deep into the road, signs that the asphalt mix wasn’t properly tested or didn’t meet the expected standard.
In critical infrastructure like highways and runways, asphalt failure poses serious safety risks and can lead to major budget overruns. That’s quite highlighting the importance of testing, and especially when it comes to choosing the right asphalt tester.
Here, Qualitest will walk you through the types, standards, and the common equipment of asphalt testing. Be sure to read on to learn how to choose the method that fits your needs best.
Why Asphalt Testing Is Important
Asphalt is one of those materials we encounter every day. From the roads we drive on to the runways that support massive aircraft landings, asphalt plays a pivotal role in keeping people and goods moving safely and efficiently.
Given how critical this material is, it’s easy to see how much abuse it takes. Think about a busy construction site, where heavy trucks, machinery, and constant movement create intense pressure and surface stress. Add in heat, rain, UV exposure, and thermal expansion, and you’ve got a material that’s under attack from all angles.
Without proper testing, asphalt can shift, crack, or develop grooves that compromise safety and performance. This is where advanced testing methods, such as Dynamic Shear Rheometer (DSR) testing step in.
DSR helps assess how asphalt behaves under repeated stress and varying temperatures, mimicking real-world traffic loads. It measures the material’s viscoelastic properties, offering insight into how well the asphalt can resist deformation and fatigue cracking, especially under high-heat conditions.
But not every project requires the same types of asphalt testing. That’s why identifying the use case is essential. Are you evaluating road surface durability in a tropical climate? Or checking load-bearing consistency for airport tarmacs?
Each scenario may require different properties to be measured. Take examples, like density, hardness, viscosity, elasticity, or consistency. These properties call for specific testing methods and equipment.
Types of Asphalt Testing
There are many ways to evaluate asphalt quality, but before diving deeper into it, now we’re going to learn how these tests are generally classified. In most cases, the types of asphalt testing fall into three categories: based on the material being tested, the environmental conditions it's exposed to, and the specific performance property being measured.
Let’s break each group down to see what kind of insights they offer.
Material-Based
This group of tests focuses on the composition and structural behavior of asphalt and its components: it can be the bitumen, aggregates, or asphalt mixtures. These tests focus on how the materials are structured and whether they meet expected standards for quality and performance.
1. Bitumen Penetration Test
Take an example of a bitumen penetration test that measures how deep a standard needle penetrates bitumen under controlled conditions. It helps classify bitumen hardness and indicates its suitability for specific climates, softer binders for cold, harder for hot.
2. Marshall Stability Test
This test is commonly used in mix design, and used to determine the load-bearing capacity of asphalt mixtures. It’s especially useful when evaluating pavement durability for roads expected to handle heavy traffic.
Check our reliable Marshall Stability Tester here.
3. Aggregate Crushing Value (ACV)
ACV is often used to evaluate how the stone inside the asphalt can hold up under pressure. By applying compressive force to coarse aggregates, the test helps ensure that your base materials won’t crumble over time, even under continuous loading from vehicles.

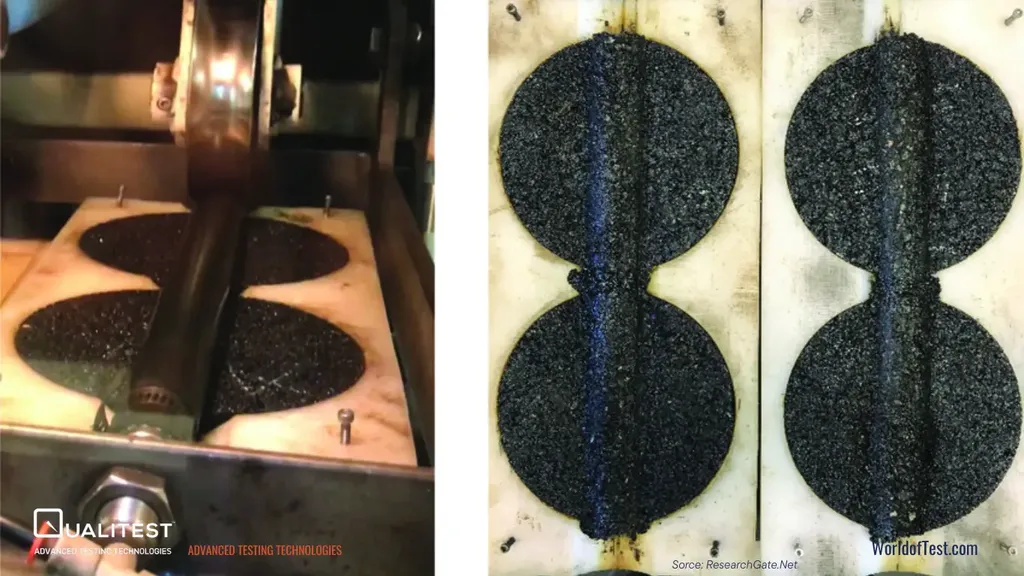

Environment-Based
Source: ResearchGate.net
These simulations test how asphalt performs under specific climate and weather conditions. Environment-based tests help predict how asphalt will respond to long-term exposure to temperature swings, moisture, and other environmental stresses.
1. Dynamic Shear Rheometer (DSR)
DSR tests how the binder responds to stress and strain under varying temperatures and loading frequencies. You can use this test in evaluating resistance to rutting (those tire grooves you see on old roads) and fatigue cracking.
2. Moisture Susceptibility Test (Tensile Strength Ratio)
This test measures the loss of strength in asphalt due to moisture damage. It compares the strength of dry versus moisture-conditioned samples to assess how vulnerable the mix is to stripping or cracking over time.
3. Thermal Stress Restrained Specimen Test (TSRST)
This test evaluates how asphalt behaves under extreme cold by simulating temperature drops while restraining specimen movement. If you're building in sub-zero climates, this test is a must to predict thermal cracking risk.
Related Content to Read: Why Material Testing Is Required: Key Reasons and Industry Benefits
Purpose-Based
Sometimes the testing is required to help us understand a specific performance property like durability, strength, or flexibility. These tests are often selected based on design goals or project-specific requirements.
1. Superpave Gyratory Compaction Test
It’s commonly designed for performance-based pavement design. It helps to simulate traffic compaction to evaluate the volumetric properties of asphalt mixes. Using this test, you can ensure that the pavement can endure actual traffic loads over time.
2. Indirect Tensile Strength Test (IDT)
Here, a cylindrical sample is compressed across its diameter to evaluate its tensile strength. IDT is commonly used to predict how likely the mix is to crack, especially under repeated or cyclical stress.
3. Softening Point Test (Ring and Ball Method)
This test is used to determine the temperature at which bitumen softens under heat. It helps in selecting the right grade of binder for specific temperature zones.
Standards and Specifications
Standards define the performance thresholds that materials must meet to pass inspection and qualify for use. Therefore, understanding the standards behind types of asphalt testing helps to ensure consistency and reliability across the entire testing process.
Below are key standards and specifications commonly followed in asphalt testing across various applications:
A. ASTM International (American Society for Testing and Materials)
ASTM provides some of the most widely used protocols in the world for asphalt testing, particularly in North America. These include methods like ASTM D6927 for Marshall Stability, ASTM D5 for Bitumen Penetration, and ASTM D6373 for Superpave Performance Grading.
B. AASHTO (American Association of State Highway and Transportation Officials)
Heavily used by U.S. state DOTs, AASHTO standards align closely with ASTM but are tailored for transportation infrastructure. Tests such as AASHTO T 283 (Moisture Susceptibility) or T 315 (Dynamic Shear Rheometer) are often used for assessing roadway durability under real-world conditions.
C. ISO (International Organization for Standardization)
ISO standards like ISO 10306 (for road surface characteristics) provide globally recognized frameworks. These standards are useful for international projects where it requires compliance across borders.
What to Consider in Choosing the Right Asphalt Testing Method
Now after we’ve got various types of asphalt testing, it’s time to learn how to pick the right one. Some names are available on the internet if you’re looking for the most commonly used or the advanced ones.
However, the approach here should match your materials, your conditions, and the quality standards you’re aiming to meet. So, to help you make the right call, here are some key factors to consider when selecting an asphalt testing method:
- Performance and Repeatability: Select methods that deliver consistent, repeatable results even under variable conditions. Especially when you’re comparing different types of asphalt testing, the method’s precision can make or break your quality control.
- Surface Type and Application: Different surface uses require different performance expectations. A loading dock or an industrial access road, for example, will need asphalt testing that focuses on load-bearing strength and rutting resistance.
- Project Scope and Scale: How big is your project? Larger-scale applications usually demand more comprehensive types of asphalt testing, such as performance grading, moisture susceptibility, or fatigue analysis.
- Material Properties to Be Measured: Align your method with the material property you're trying to evaluate. If you're measuring density, viscosity, or temperature sensitivity, you'll need a test specifically designed for that, like the Gyratory Compactor for density or DSR for rheological behavior.
A Case Study
Take example, you’re in charge of material selection for a municipal road upgrade in a cold-climate region, somewhere that sees harsh winters, snow plows, and heavy deicing practices. The concern is to get a well-performed asphalt under extreme temperature drops and against moisture damage.
So, how do we determine what types of asphalt testing are necessary to meet these demands?
1. Risk of Thermal Cracking in Cold Weather
When asphalt contracts too much under freezing conditions, it becomes brittle and prone to cracking. You need to understand how it behaves when temperatures drop dramatically.
This test evaluates low-temperature cracking potential by cooling the specimen while it’s restrained, mimicking how asphalt behaves in the field during winter.
2. Moisture-Induced Damage
In regions with snow and slush, moisture infiltration is inevitable. If not properly tested, this can lead to stripping, where the binder loses adhesion to aggregates.
This measures the retained strength of asphalt after moisture conditioning. TSR is so helpful in ensuring asphalt holds up over time.
Final Thoughts
At last, knowing the types of asphalt testing and how to pick the suitable one can make a real impact, both on project success and everyday road use. That’s why it’s worth approaching your testing choices with a comprehensive mindset and partnering with Qualitest, who truly knows the field.
If you’re in the process of building or expanding your testing capabilities, we invite you to explore our full catalog of asphalt testing equipment. Or, if you’d prefer tailored guidance, click here to get a recommendation from our team of experienced specialists.
