How Slab Compaction Matches Actual Roadways

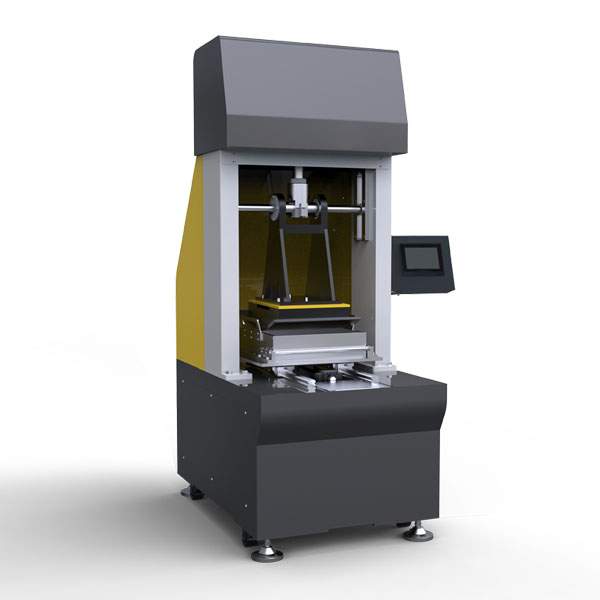

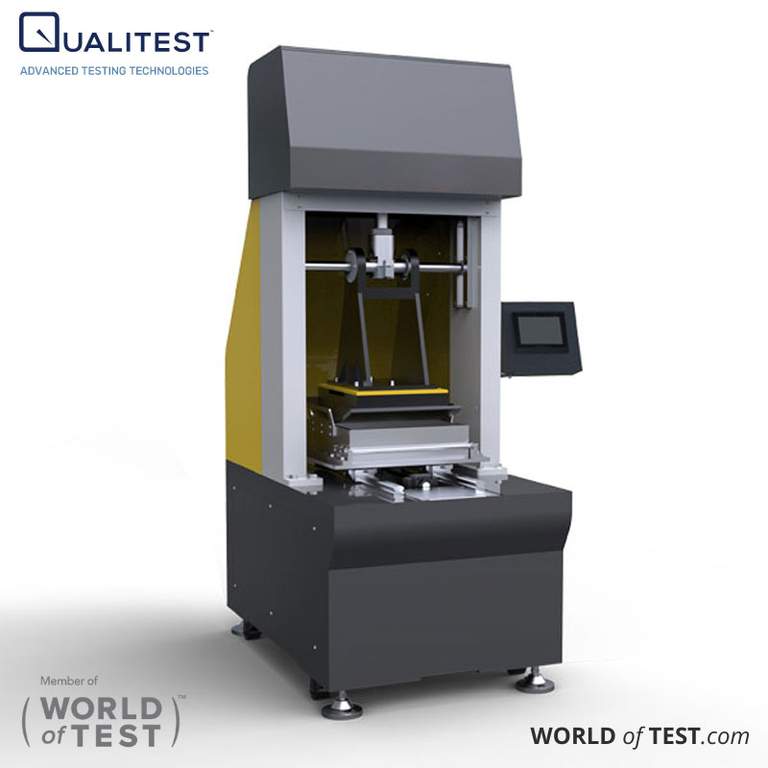

The Asphalt Slab Roller Compactor QualiASRC™ utilizes a horizontal kneading methodology to establish realistic aggregate interlocking, yielding the natural stone-on-stone contact points and air void distribution found on actual highways. By mirroring actual paving rollers, this system yields flat, consistent test slabs that behave exactly like actual highway lanes, providing highly reliable, structurally authentic specimens for Hamburg wheel-tracking and friction testing.
Controlling the Vital Variables of Compaction
Producing these ideal test specimens requires adjusting a few critical physical variables, which the Asphalt Slab Roller Compactor QualiASRC™ manages with extreme precision.
The Compaction Force (Pressure & Passes)
How hard the 535-millimeter-radius steel roller (available in widths of 260, 300, or 400 millimeters) presses down and the number of times it passes back and forth dictates how tightly packed the stones get.
This setup utilizes a sophisticated pneumatic air system (monitored by a pressure sensor accurate to thirty Newtons) to apply a steady downward force, ranging from zero up to thirty kilonewtons. The machine automatically stops after a specific count of rolling cycles or exactly when the slab reaches your target thickness, hitting that theoretical air-void percentage with an accurate height-stopping precision of 0.1 millimeters.
The Roller Speed (Kinematics)
How the hot aggregate particles slide and lock together depends heavily on how fast the heavy metal wheel rolls over them. A smooth-running, responsive servo motor moves the test mold back and forth at speeds reaching up to three hundred millimeters per second, proving the theoretical concept that closely mimicking the slow, deliberate crawl of massive paving machinery prevents unnatural aggregate fracture.
Keeping It Hot (Thermodynamics)
Liquid asphalt binder gets stiff and uncooperative if the mixture cools down too quickly, ruining the ideal compaction window. The system uses high-precision PWM modulation for PID temperature control to keep the roller heated to your exact specified sweet spot, which spans from ambient room conditions up to a blistering two hundred degrees Celsius. This ensures the black, gooey mixture stays at the perfect viscosity for uniform packing.
The Shaking Action (Dynamic Vibration)
Because hot asphalt acts like a thick, rubbery substance that constantly pushes back under pressure (functioning as a Kelvin/Kelvin-Voigt body), adding the optional roller vibration pump to the Asphalt Slab Roller Compactor QualiASRC™ mimics the dynamic action of full-size vibratory road rollers. This high-energy shaking motion shakes the trapped air pockets right out of stiffer, stone-heavy mixtures.
Comparing Dynamic and Static Compaction Modes
Choosing between static and vibratory modes alters the internal structure of the compacted slab. Static rolling is excellent for evaluating standard volumetric designs (how much space the air and binder take up), while vibratory rolling provides the energy needed to compact highly stone-resistant mixtures. A highly adaptable Asphalt Slab Roller Compactor allows laboratories to switch between these modes or combine them, accommodating a wide range of testing specifications.
Comparing Lab Compaction Methodologies
When you compare how the QualiASRC™ produces perfectly flat slabs to other common ways technicians compress asphalt in a laboratory, the theoretical differences are undeniable:
- The Heavy Drop Hammer (Marshall): Relies on a heavy metal weight violently slamming down on the mix. While it works fine for quick, basic quality checks, vertical impact energy completely fails to replicate the horizontal, forward-and-backward kneading action of actual field rollers.
- The Spinning Squeezer (Gyratory): Great for packing mix into tall, confined cylindrical molds to measure air voids, but completely useless for replicating the exceptionally large, wide, and flat surface orientations required for advanced wheel-tracking and long-term fatigue testing.
- The Asphalt Slab Roller Compactor QualiASRC™: Delivers true, undeniable rolling action that creates massive, perfectly flat, highly uniform slabs. This is the absolute best theoretical and practical method for producing laboratory specimens, ensuring your highly researched pavement materials behave exactly like in-place roads and perform predictably under the heaviest daily traffic loads.
