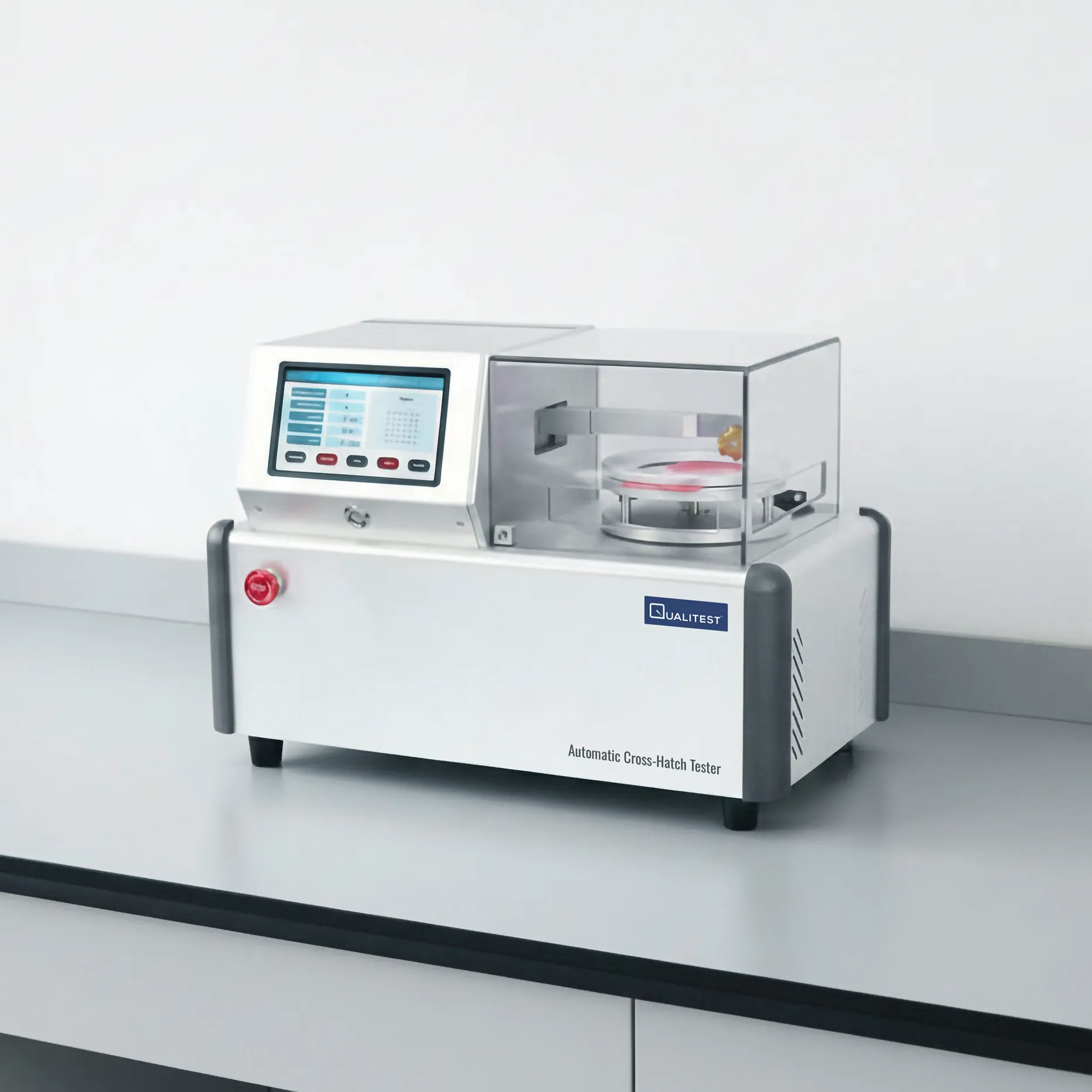

Automatic Cross-Hatch Tester - Cross-Cut Adhesion Tester

Cross-Hatch Tester, Cross-Cut Adhesion Tester

As a crucial method for assessing the adhesion between coatings and substrates, the cross-cut method has seen widespread use. While the traditional manual approach is simple and convenient, variations in operator cutting speed and force can lead to inconsistent test results across different testers. The latest ISO 2409 standard clearly stipulates the use of automatic cross-hatch adhesion testers with motor drive whenever possible to ensure uniform and consistent cutting.

Cross-Hatch Tester, Cross-Cut Adhesion TesterCross-Hatch Tester, Cross-Cut Adhesion Tester

Automatic Cross-Hatch Tester - Cross-Cut Adhesion Tester Features

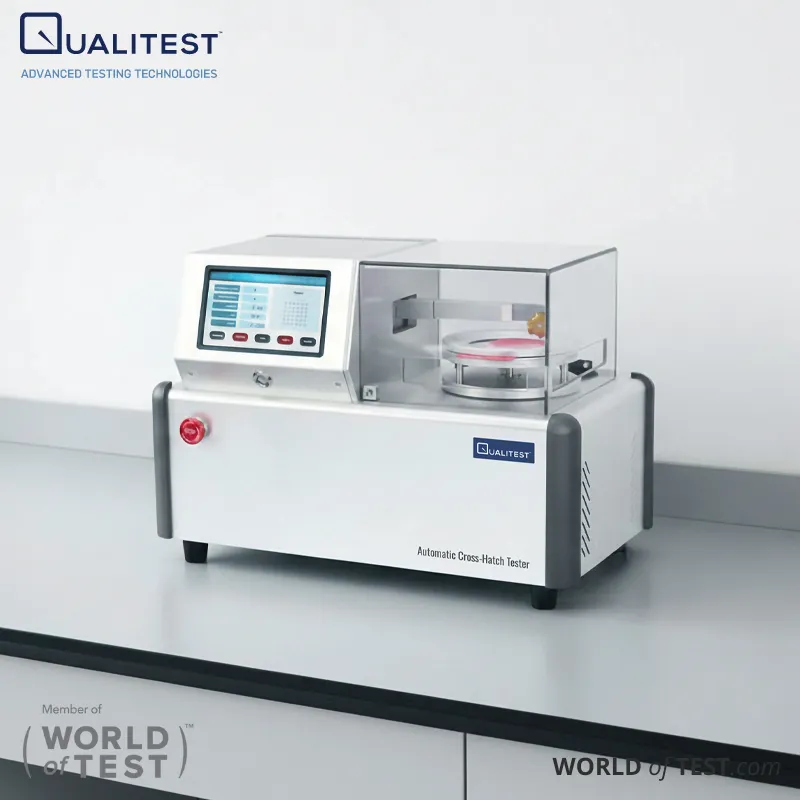

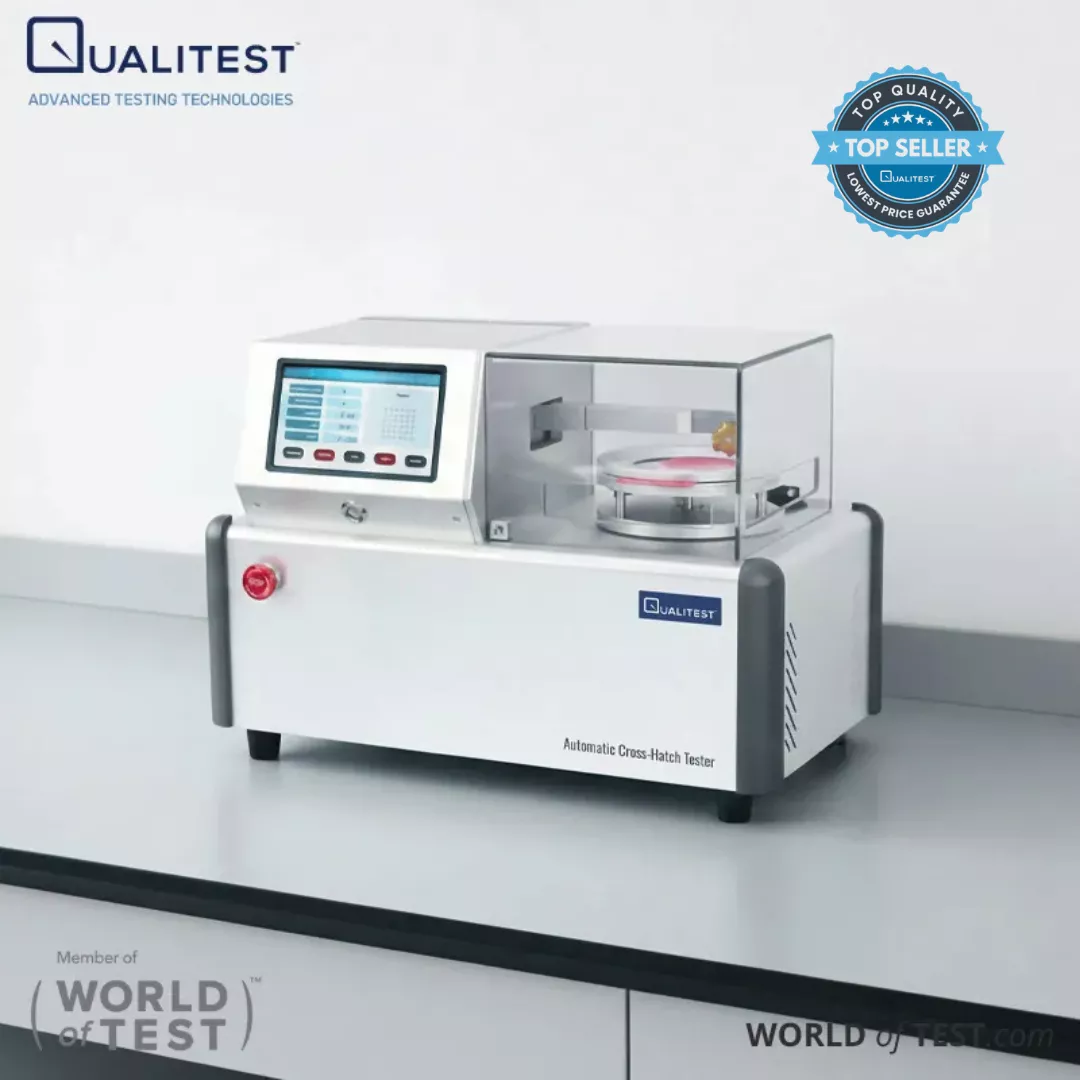

The Automatic Cross Hatch Tester (also known as Cross-cut Adhesion Tester0 is an automated cross-cutting instrument offered by Qualitest in accordance with the latest ISO 2409 and ASTM D3359 standards. Setting it apart from similar products on the market, it features the following advantages:

  • Features a 7-inch industrial-grade full-touch screen for easy editing of cutting parameters and clear, intuitive parameter display.
  • Allows for the adjustment of cutting speed, cutting load, cutting intervals, and the number of cuts (both landscape and portrait).
  • Automatically compensates for load force during cutting to maintain a constant load and consistent coating depth.
  • Simplifies the process with automatic clamping of test samples.
  • After completing a cutting direction, the working platform automatically and precisely rotates 90° to ensure complete vertical crossing of cutting lines, avoiding inaccuracies from manual rotation.
  • Offers optional test tips (Φ 0.5mm, Φ 0.75mm, Φ 1mm) or other specialized tips for testing scratch resistance, scratch hardness, and writing effects in accordance with standards like Opel (GME 60280 / GMW14688), among others.

Automatic Cross-Hatch Tester - Cross-Cut Adhesion Tester  Automatic Cross-Hatch Tester - Cross-Cut Adhesion Tester Technical Specifications:

Test Plate Size150mm×100mm×（0.5-20）mm
Setting Range of Cutter Load5N ~ 50N
Cutting Speed Setting Range5mm/s ~ 45mm/s
Setting Range of cutting intervals0.5mm～5mm
Power supply220V, 50/60Hz (110V available upon request)
Max. Power80W
Weight30KG
Dimensions540mm×335mm×380mm （L×W×H)
