Automatic Film Applicator

Automatic Film Applicator
Parent Product
Flexible Packaging & Film Testing Equipment
Product Categories
Flexible Packaging & Film Testing Equipment
Color, Paint & Coating Testing Equipment

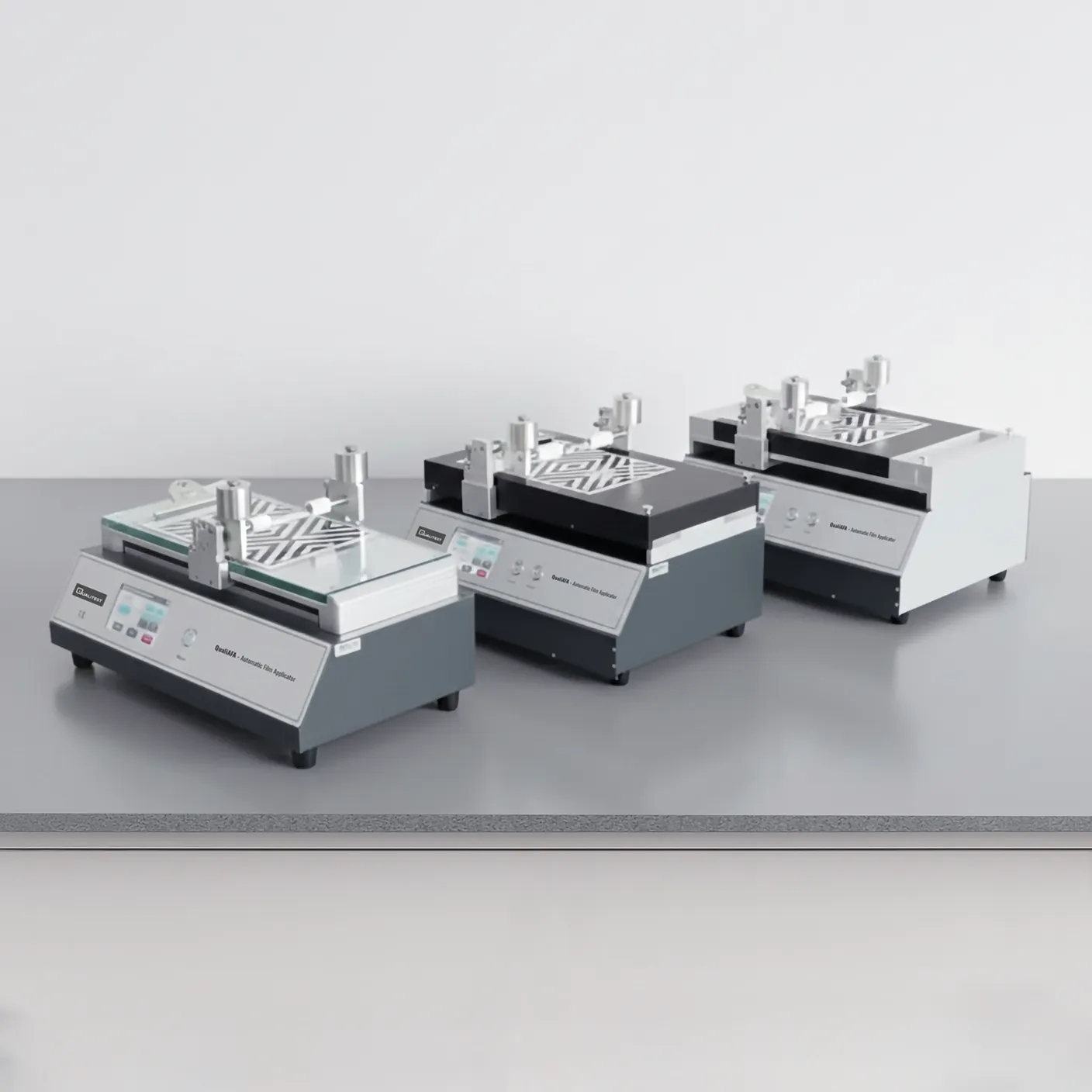

The Automatic Film Applicator QualiAFA series, enables experimental chemists to easily apply precise coatings on various substrates, significantly reducing and eliminating errors caused by manual application. This tool's performance is primarily affected by the shear rate and the downward force exerted on the applicator. It substantially enhances the consistency of paint film applications.

Automatic Film Applicator Type



Automatic Film Applicator

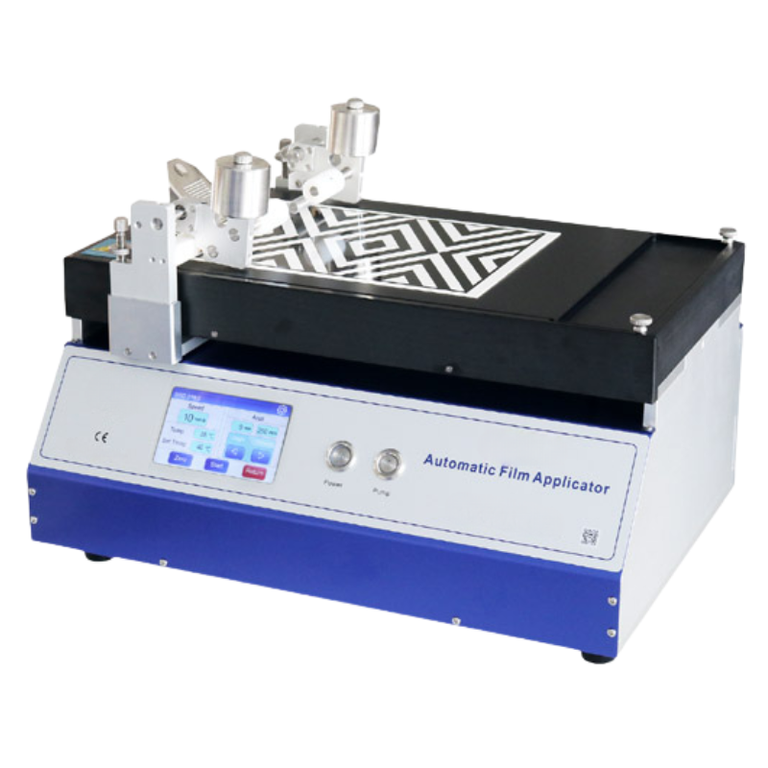

QualiAFA-III (With Heating)

 Automatic Film Applicator

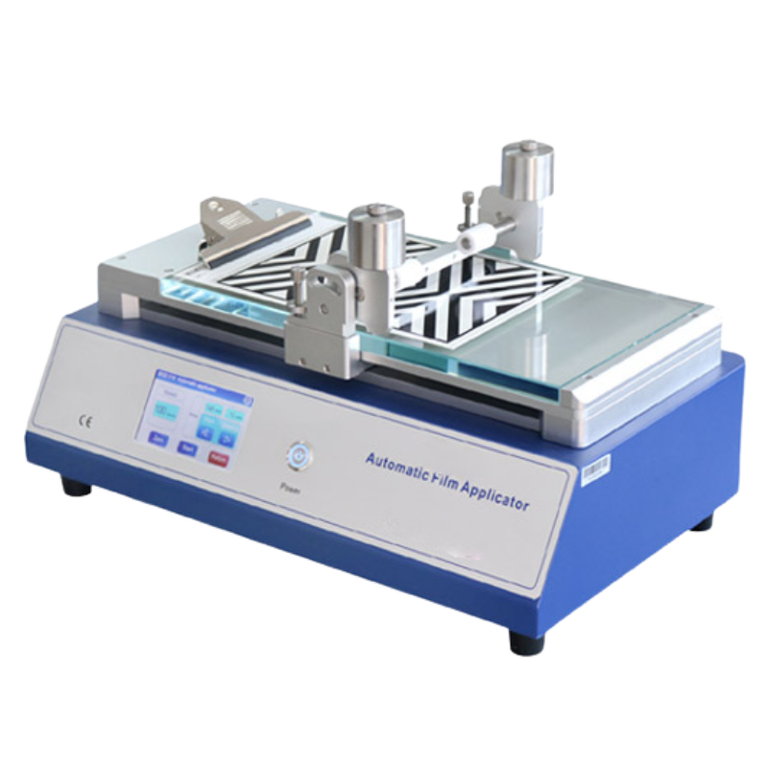

QualiAFA-IV (Touch screen)

 Automatic Film Applicator

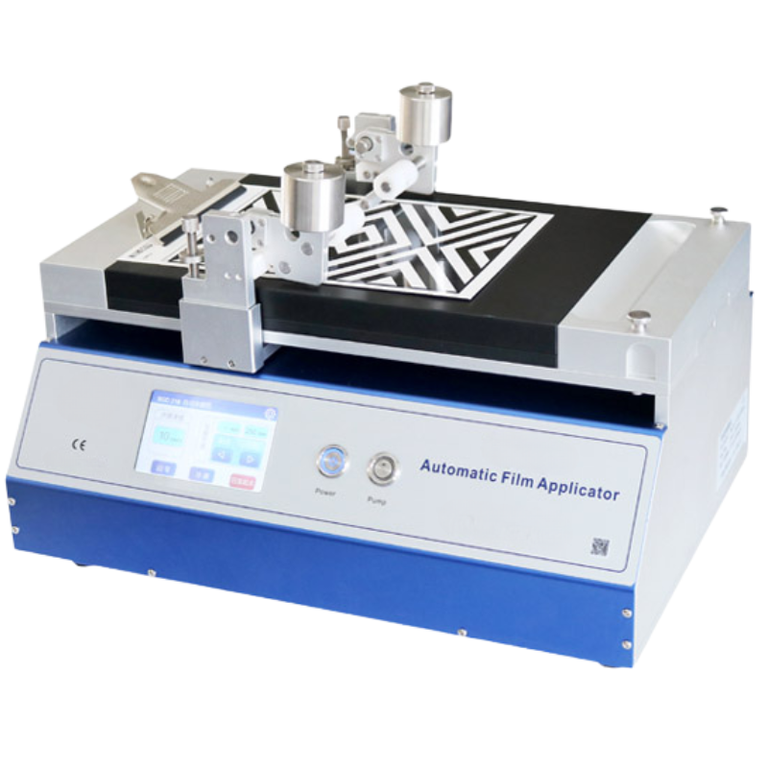

QualiAFA I

QualiAFA I, II, and III Models: Feature a specially machined vacuum suction-gas plate with high smoothness (the entire plate's flatness is less than 5 microns) and special hardening treatment, ensuring a smooth and secure adsorption of all substrate types.

QualiAFA IV Model: Comes with a specially machined glass plate with high smoothness (the entire plate's flatness is less than 20 microns), which is also easy to clean.

  • An optimally designed vacuum plate ensures uniform suction power distribution (exclusive to QualiAFA I, II, and III Models).
  • An external vacuum pump eliminates all vibration from the traditional in-machine pump structure (exclusive to the QualiAFA I, II, and III Models).

These enhancements make the QualiAFA Automatic Film Applicator Series, essential tools for achieving precise and reproducible coating applications.

Automatic Film Applicator Features:

The QualiAFA range is the latest automatic film applicators, offering improvements over traditional products with features such as:

  • Adjustable variable speed: from 5mm/s to 500mm/s, allowing for a wide range of application speeds.
  • A high-precision linear guide bar ensures more stable drawdown speeds.
  • The height of the applicator pusher is adjustable to accommodate different substrates.
  • A well-designed bracket that is easy and simple to operate, allowing for the application of any load on easily bent substrates.
  • Users can freely set the starting point, making it suitable for substrates of various sizes.
  • Four selectable application distances, providing flexibility in coating range.
  • Compatibility with all types of our applicators and wire bars, offering versatility.
  • Enhanced repeatability for film application:

Automatic Film Applicator Technical Specifications:

Ordering Information →

Technical Parameters ↓

QualiAFA-I

QualiAFA-II

QualiAFA-III
(With Heating)

QualiAFA-IV
(Touch screen)

Method of fixing substrate

Vacuum adsorption

Clamp

Application Platform

Hard anodic oxidation aluminum with vacuum holes

Glass

Drawdown vacuum bed Size

360mm×250mm

490mm×250mm

360mm×250mm

400mm×220mm

Drawdown vacuum bed Size with a hole

290mm×190mm

410mm×190mm

290mm×190mm

----

Max. application Length

250mm

375mm

250mm

280mm

Adjustable Draw down Speed

5mm/s～500mm/s

2mm/s～100mm/s

5mm/s～500mm/s

Carriage Holder Weight

500g×2pcs (1KG or 1.25KG is optional)

Total Power

370W

750W

50W

Temperature Range

----

RT+5℃～100℃

----

Temperature Uniformity

----

±5℃

----

Power Source

220V；50Hz (110V available upon request)

Weight

40KG

46KG

42 KG

25 KG

Overall Size (No vacuum pump)(L×W×H, mm)

500×345×340

635×345×340

500×345×340

550×320×340
