Automatic Microbial Growth Curve Analyzer – QualiMGCA™ Auto

Automatic Microbial Growth Curve Analyzer
Parent Product
Life Science Equipments
Standards
IEC 61010-1
IEC 61326-1
ISO 7218
View PDF

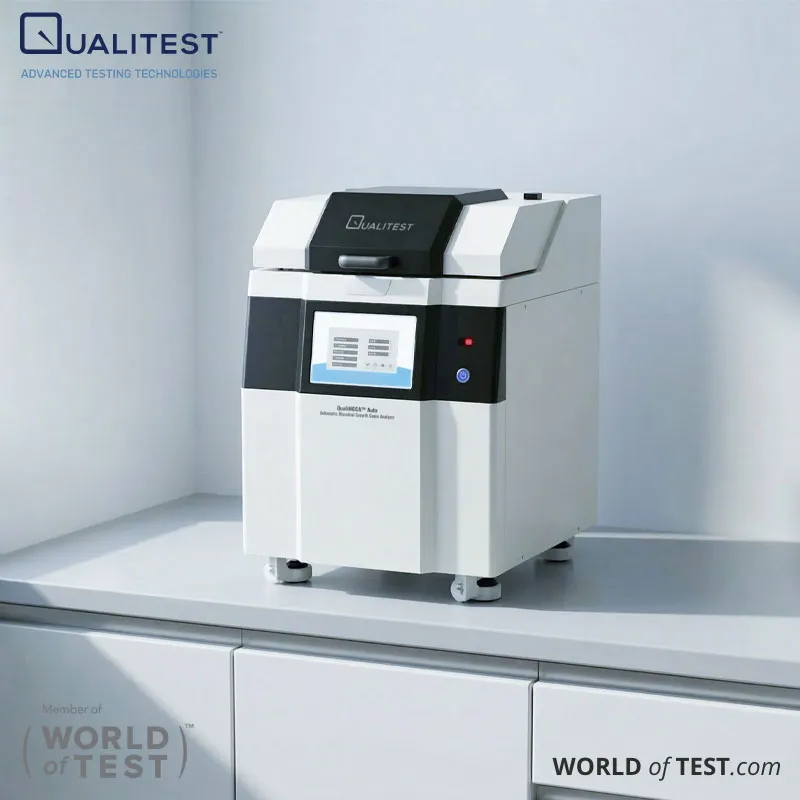

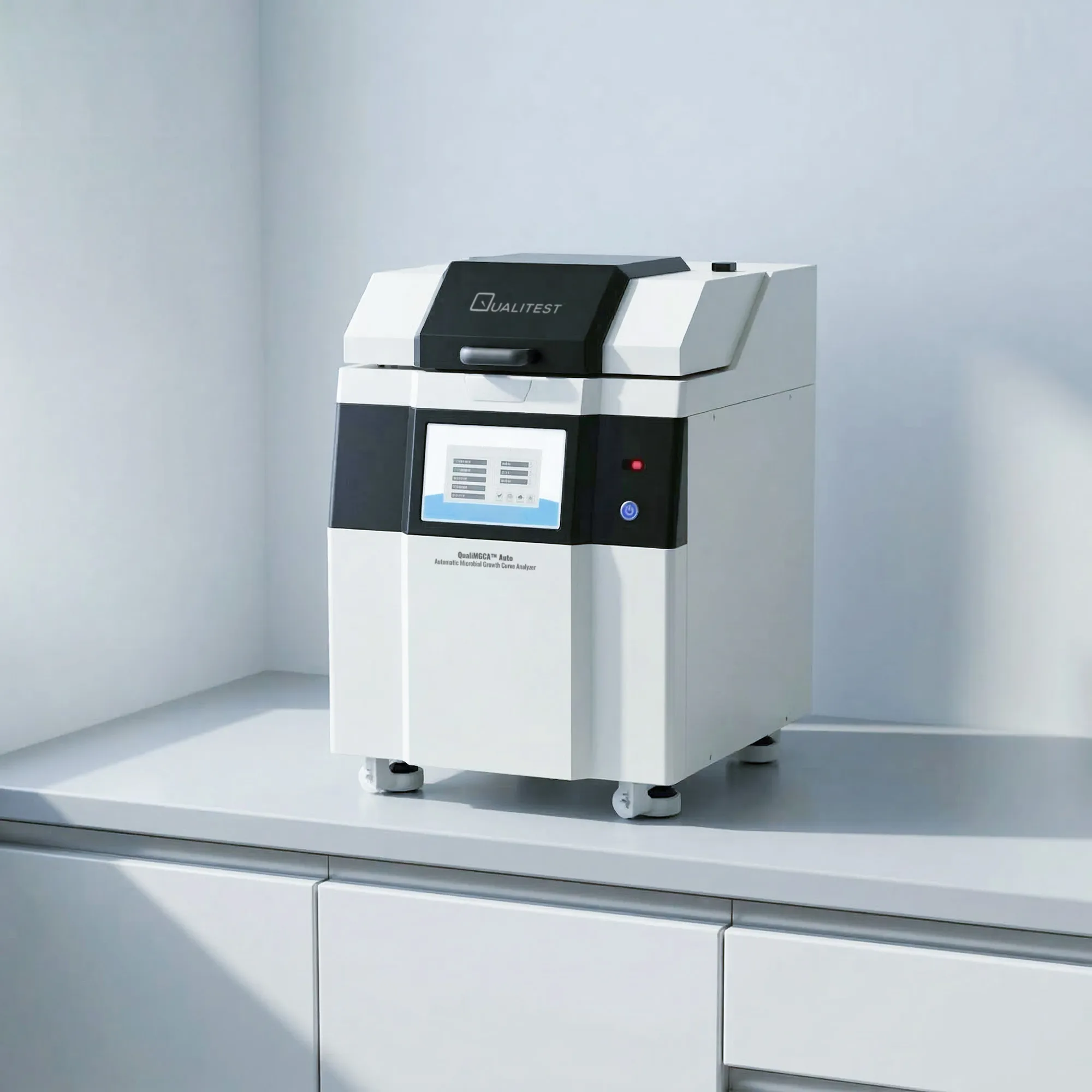

Automatic Microbial Growth Curve Analyzer – QualiMGCA™ Auto

A Microbial Growth Curve Analyzer automates incubation, shaking, and optical growth tracking so you can generate repeatable growth curves without manual sampling. QualiMGCA™ Auto runs up to 36 samples in parallel, measuring QualiMGCA™ Auto at 600 nm on a programmable schedule while controlling temperature and agitation for stable cultivation conditions.

The system is designed for real-time, long-duration monitoring with reduced contamination risk. A sealed cultivation approach and non-sampling detection help protect sample integrity, while automated curve plotting supports fast comparison between strains, media, inhibitors, and process conditions.

Automatic Microbial Growth Curve Analyzer – QualiMGCA™ Auto Applications

  • Fermentation screening and optimization Track growth kinetics across multiple formulations to compare lag phase, growth rate, and stationary phase timing under controlled temperature and shaking.
  • Drug toxicity and antimicrobial evaluation Quantify growth inhibition by monitoring OD600 trends over time, making it easier to compare dose-response behaviors across test groups.
  • Microbial metabolism and stress studies Evaluate the impact of environmental or chemical factors on growth dynamics using scheduled measurements and stable incubation control.
  • Enzyme and bio-product development Screen strains and process parameters with parallel cultivation to identify candidates that reach target biomass faster or sustain growth longer.
  • Anaerobic and aerobic organism research Supports both anaerobic and aerobic microorganisms, enabling side-by-side testing workflows when combined with proper sample handling and consumables.
Automatic Microbial Growth Curve Analyzer – QualiMGCA™ Auto

Standards

  • IEC 61010-1 – Safety requirements for electrical equipment for measurement, control, and laboratory use.
  • IEC 61326-1 – EMC requirements for electrical equipment for measurement, control, and laboratory use.
  • ISO 7218 – General requirements and guidance for microbiological examinations (good practice for microbiology labs).

Automatic Microbial Growth Curve Analyzer – QualiMGCA™ Auto Key Features

  • Parallel throughput for faster screening: measures and plots growth curves for up to 36 channels in one run.
  • Configurable detection schedule: adjustable measurement interval from 5 to 360 minutes to match fast or slow-growing organisms.
  • OD600 monitoring at 600 nm: supports growth tracking with an OD600 range of 0–5.
  • Stable cultivation control: temperature control from 4–45°C with programmable shaking (50–250 rpm).
  • Long-duration studies: supports extended cultivation runs up to 1600 hours for slow kinetics and stability testing.
  • Controlled access: permission management support for multi-user lab environments.

Theory and Method

QualiMGCA™ Auto builds growth curves by repeatedly measuring optical density at 600 nm and mapping OD versus time. OD600 is commonly used as a biomass proxy for many microorganisms in liquid culture, enabling non-destructive trend monitoring.

A typical workflow:

  1. Load cultures into tubes (with appropriate caps/closures for your protocol).
  2. Set the measurement interval and total run time.
  3. Run controlled temperature and shaking to maintain consistent growth conditions.
  4. The analyzer automatically records OD600 and generates growth curves for comparison across all channels.

Automatic Microbial Growth Curve Analyzer – QualiMGCA™ Auto Technical Specification

SpecificationQualiMGCA™ Auto
Number of channels36
Applicable microorganismsAnaerobic and aerobic microorganisms
Detection interval5–360 minutes (adjustable)
OD600 range0–5
Measurement wavelength600 nm
Temperature range4–45°C
Shaking speed range50–250 rpm
Culture volume2–10 mL
Culture timeUp to 1600 hours
Permission managementAvailable
Power (listed)110 V / 60 Hz
