The QualiScribe™ 100 Method: Engineered Consistency for Standard Compliance

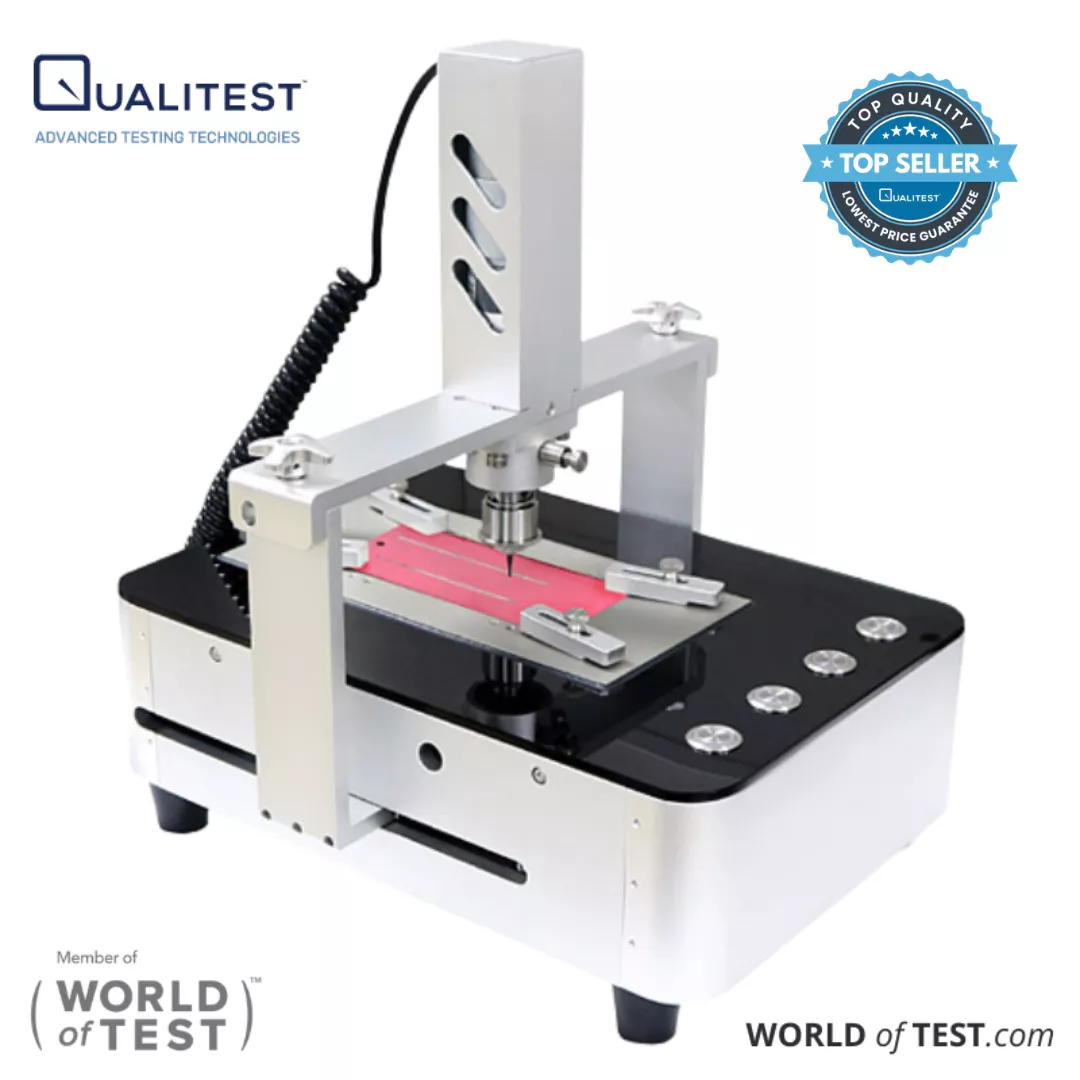

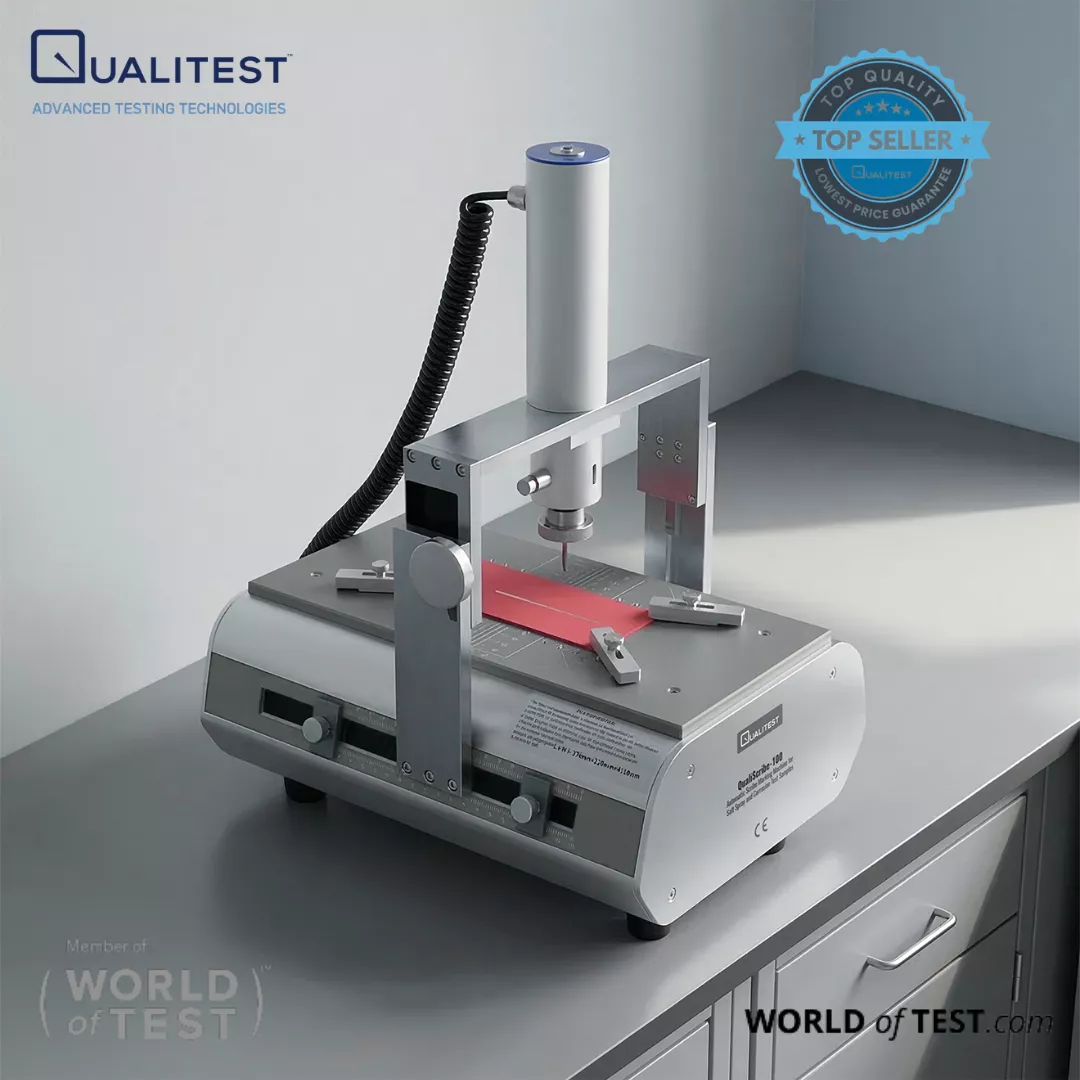

The QualiScribe™ 100 Automatic Scribe Marking Machine completely eliminates human error by swapping hand-cutting for a controlled, highly repeatable mechanical routine. This specialized Scribe Marking Machine for Salt Spray and Corrosion Test protocols applies three critical engineering principles to preserve that essential paint-to-metal connection:
1. Rotary Milling Principle
Rather than dragging a static blade that plows brutally through multiple paint layers, this Scribe Marking Machine uses a rotary cutting principle. The unit mills a cleanly swept, 2mm-wide vertical scratch with wonderfully sharp, well-defined edges, avoiding the micro-fractures caused by dragging static blades.
2. Surface-Tracking Floating Blade
Since test panels are rarely completely flat, the Quali-Scribe100 features a floating cutting blade that physically tracks the natural surface bumps. This ensures the blade easily handles materials from 0 to 5mm thick and cuts just deep enough (from 0 to 2000µm) to fully expose the steel base without slicing deep into the underlying metal, fully satisfying standard procedures like ASTM D1654.
3. Calibrated Dimensional Control
A built-in scale indication allows easy physical adjustments for various scratch sizes across a 0 to 150mm working distance. It prepares samples for neutral salt spray tests (such as ASTM B117) with absolute dimensional consistency, which is strictly mandatory if your testing facility performs advanced electrical inspections like Electrochemical Impedance Spectroscopy (EIS).
