Salt Spray Chamber: How the QSST Fog Cabinet Series Accelerates Corrosion Testing
A salt spray chamber compresses what would take years of atmospheric exposure into hours or days, which lets a plant verify a plating or paint process before it ships a single non-conforming batch. The QSST series of salt spray chambers from Qualitest delivers that capability across four working volumes from 108 L to 800 L, with full compliance to ASTM B117, ISO 9227, JIS Z 2371, ASTM B368, and ASTM G85.
The following sections cover the working principle, the four test methodologies the QSST cabinet supports, and the selection logic for matching a model to your throughput, utility supply, and specimen geometry.
How a Salt Spray Chamber Works
A salt spray chamber accelerates corrosion by holding coated specimens inside a sealed cabinet filled with a fine 5% sodium chloride fog at 35 °C. The chloride ions break down passive oxide films, the warm humid atmosphere sustains a continuous electrolyte layer on every surface, and electrochemical attack proceeds orders of magnitude faster than natural exposure.
The corrosion mechanism: aqueous electrochemistry under chloride attack
Salt spray testing relies on aqueous electrochemical corrosion, not chemical etching. Three conditions must coexist on the metal surface for the reaction to run, and the chamber engineers all three at once: a continuous electrolyte film, dissolved oxygen, and an aggressive ion species.
The salt fog condenses into a thin film of brine on every exposed surface. Sodium chloride dissociates into Na⁺ and Cl⁻ ions, which makes the film conductive and lets micro-galvanic cells form between heterogeneous areas of the metal. At anodic sites, the metal loses electrons and dissolves:
Fe → Fe²⁺ + 2e⁻
At cathodic sites, dissolved oxygen accepts those electrons:
O₂ + 2H₂O + 4e⁻ → 4OH⁻
The Fe²⁺ ions diffuse through the film and react with hydroxide and atmospheric oxygen to form hydrated iron oxides, the red rust visible on a failed panel. Chloride ions are the accelerator. They penetrate the passive oxide layers on steel, aluminum, and zinc and disrupt the protective film that would otherwise slow attack in pure water. Holding the cabinet at 35 °C raises the reaction kinetics roughly two to three times above room-temperature rates.
A coating delays this chain by physically separating the metal from the electrolyte, by oxidizing sacrificially first, or by releasing inhibitor ions. The chamber compresses the time to first visible failure into a window the QA team can act on within a single shift.
How the chamber generates the fog
The QSST atomizing tower produces fog by Bernoulli atomization, not by boiling or ultrasonic methods. Clean compressed air at 0.07 to 0.17 MPa accelerates through a venturi-style glass nozzle. The high-velocity air stream creates a localized pressure drop that lifts salt solution up an adjacent feed tube. The two streams collide at the nozzle tip and shear the solution into micron-scale droplets that disperse evenly through the working chamber.
Three engineered conditions keep the fog uniform and corrosive enough to comply with standards:
- Saturation tower preheating. The humidifying tower heats the compressed air to roughly 47 °C and saturates it with water vapor before atomization. Without this step, drier air evaporates droplets at the nozzle and concentrates the solution unevenly across the chamber.
- V-shaped sealing cover. The 100° roof angle on the QSST cover drives condensate back to the walls rather than letting drops fall onto specimens, which would rinse the surface and invalidate the test.
- Calibrated collection rate. ASTM B117 and ISO 9227 require the fog to settle at 1.0 to 2.0 mL per hour per 80 cm² of horizontal area, averaged over at least 16 hours. The QSST includes tapered fog collectors with 100 mm funnels and graduated cylinders so the operator verifies the rate at every shift. This is the single most important field check for chamber compliance.
Test Methods the QSST Series Supports
The same cabinet hardware runs four distinct test methods by changing solution chemistry and, in one case, chamber temperature. Each method targets a different family of coatings.
Neutral Salt Spray (NSS), per ASTM B117 and ISO 9227
The default method. The chamber sprays 5% NaCl solution at pH 6.5 to 7.2 and holds the working room at 35 °C ± 2 °C. NSS applies to bare metals, zinc and zinc-alloy plating, conversion coatings, anodic oxide layers, and organic paint or powder systems. Typical acceptance windows run 24 to 1,000 hours depending on the coating specification.
Acetic Acid Salt Spray (AASS), per ISO 9227
The salt solution is acidified with glacial acetic acid to pH 3.1 to 3.3 while temperature stays at 35 °C. The lower pH accelerates attack on decorative copper, nickel, and chromium plating and on certain anodic and organic coatings over aluminum.
Copper-Accelerated Acetic Acid Salt Spray (CASS), per ASTM B368 and ISO 9227
The operator adds copper(II) chloride dihydrate to the acidified solution at 0.26 g/L and raises the working room to 50 °C, which falls inside the QSST temperature range. CASS is the most aggressive of the three and is typically used for thick decorative chrome plating on plastic, automotive trim, and high-tier nickel-chrome systems where a 22-hour CASS exposure substitutes for a much longer NSS test.
Modified salt fog procedures, per ASTM G85 and ASTM D1735
ASTM G85 covers cyclic and modified variants such as the dilute electrolyte cyclic fog test and the SO₂-supplemented salt fog. ASTM D1735 specifies water fog exposure for coating water-resistance evaluation. The QSST atomizing system and programmable timer support these cycles when a test plan calls for them.
How to Select a QSST Salt Spray Chamber Model
Three inputs drive the model choice: the largest specimen batch you need to test at once, the methods you will run, and the utility supply available at the site. The detailed specification table is published above; the practical selection logic is as follows.
- QSST-108L (108 L working volume, up to 28 panels). R&D laboratories, in-process audits, fastener and small-component QC. The 600 × 400 × 450 mm working room handles standard 150 × 70 mm panels and small assemblies. Manual cover, 2.2 kW load.

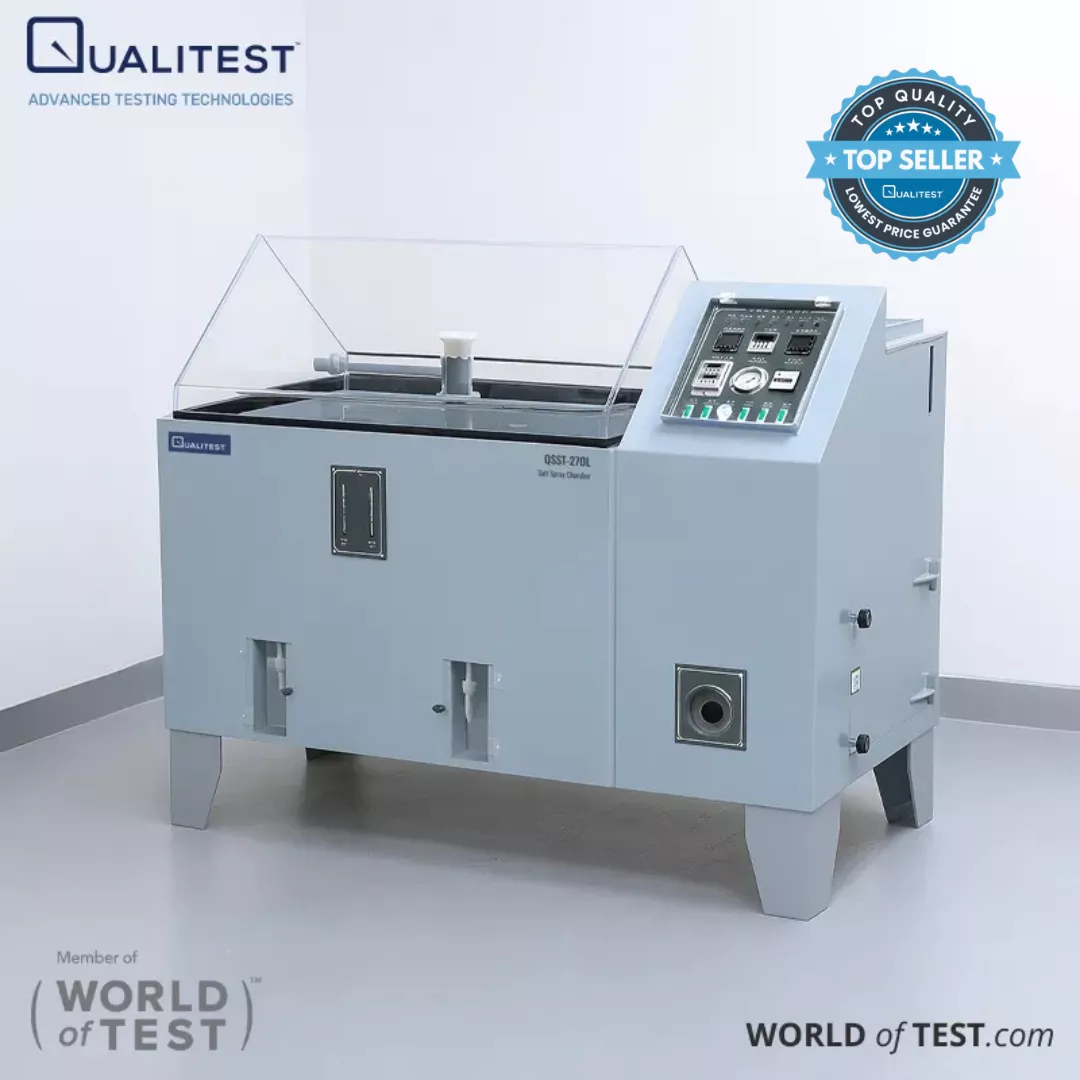

- QSST-270L (270 L, up to 70 panels). Production QC for plating and paint shops with steady throughput. Same 2.2 kW load as the 108 L unit but with 2.5 times the panel capacity, which suits rolling 96-hour NSS cycles across rotating batches.
- QSST-480L (480 L, up to 108 panels). High-volume automotive, hardware, and architectural-coating manufacturers. The pneumatic cover reduces operator strain on shift changes. 3.8 kW load and 25 L per day salt solution consumption.
- QSST-800L (800 L, up to 120 panels). Large parts such as automotive sub-assemblies, structural fasteners in bulk, and white-goods enclosures. The 1600 × 800 × 1000 mm working room and pneumatic cover handle the duty cycle of a dedicated test laboratory.
Before specifying any model, confirm three site conditions: the largest single specimen geometry must fit the working room with 15° to 30° tilt clearance, the compressed-air supply must deliver oil-free and water-free air at 0.4 to 0.8 MPa and 1 to 2 m³/h, and demineralized water for the saturation tower must be available at 30 to 40 L per day. The chamber will not hold a compliant fog without those utilities.
For real-world atmospheric correlation, salt spray testing alone is not sufficient. Pair the QSST with a cyclic corrosion test cabinet when the program goal is service-life prediction rather than process control.
Industries and Applications
The QSST salt spray chamber series supports quality programs in:
- Automotive and transportation. Body panels, fasteners, fuel-system components, brake hardware, trim, and underbody parts exposed to road salt.
- Aerospace and defense. Coated alloys, plated fasteners, and assemblies qualified to MIL-STD and prime-contractor specifications.
- Construction and architectural hardware. Galvanized steel, powder-coated extrusions, and anodized aluminum used in coastal or industrial atmospheres.
- Electronics and electrical. Connector platings, enclosure coatings, and PCB conformal coatings audited for marine and humid service.
- General manufacturing. Plating lines, paint shops, and electrocoat lines that monitor pretreatment chemistry through 96 to 240-hour acceptance gates.
Frequently Asked Questions
What does a salt spray chamber test?
A salt spray chamber tests the corrosion resistance of coatings and surface treatments on metallic substrates. It exposes specimens to a controlled 5% sodium chloride fog at 35 °C, then operators inspect the panels at set intervals for rust, blistering, undercutting, or coating delamination against a pass-fail specification defined in the product drawing.
Is a salt spray chamber the same as a fog cabinet?
Yes. Salt spray chamber, salt spray tester, salt fog cabinet, and fog apparatus refer to the same equipment class defined by ASTM B117. ISO 9227 calls the same apparatus a salt spray cabinet. The four terms appear interchangeably across datasheets, quality specifications, and procurement documents.
What is the difference between NSS, AASS, and CASS tests?
NSS uses neutral 5% NaCl at 35 °C for general metals and coatings. AASS acidifies the same solution to pH 3.1 to 3.3 at 35 °C for decorative copper-nickel-chromium plating. CASS adds copper(II) chloride to the acidified solution and raises the temperature to 50 °C, which is the most aggressive of the three and targets thick chrome plating on plastic and high-spec automotive trim.
How long should a salt spray test run?
Test duration depends on the coating specification, not the apparatus itself. Typical NSS cycles run 24, 48, 96, 240, 480, or 1,000 hours. A 22-hour CASS exposure is roughly equivalent in severity to several hundred hours of NSS on decorative chrome systems. The pass-fail criterion comes from the product drawing or process specification.
Does the QSST chamber predict real-world service life?
No. ASTM B117 explicitly states that salt spray results do not correlate to outdoor exposure in any general way. The QSST is a comparative quality-control tool: it ranks coatings against an internal baseline and detects process drift in plating, painting, and pretreatment. Use cyclic corrosion testing when the program needs service-life prediction.
What utilities does a salt spray chamber require?
Each QSST model needs three site utilities. First, a 220 V (110 V optional) electrical supply matched to the 2.2 to 3.8 kW rated load. Second, an oil-free and water-free compressed-air supply at 0.4 to 0.8 MPa with 1 to 2 m³/h flow. Third, a demineralized water source for the saturation tower at 30 to 40 L per day. Salt solution at 5% NaCl is consumed at 15 to 25 L per day depending on model size.
Why does the salt solution need to be 5% NaCl exactly?
The 5% concentration is the value all major standards (ASTM B117, ISO 9227, JIS Z 2371) fix to make results comparable across laboratories. Higher concentrations slow corrosion because oxygen solubility drops in stronger brine, and lower concentrations under-stress the coating. The 5% mass fraction sits near the peak corrosivity for steel.
