Bally Leather Flexing Tester

Bally Leather Flexing Tester
Product Categories
Textile Testing Equipment
Standards
SATRA TM55
DIN 53351
ISO 5402
BS 344-1
JIS K 6545
EN 13512
ISO 17694

Bally Leather Flexing Tester

JIS-K6545, BS EN-344

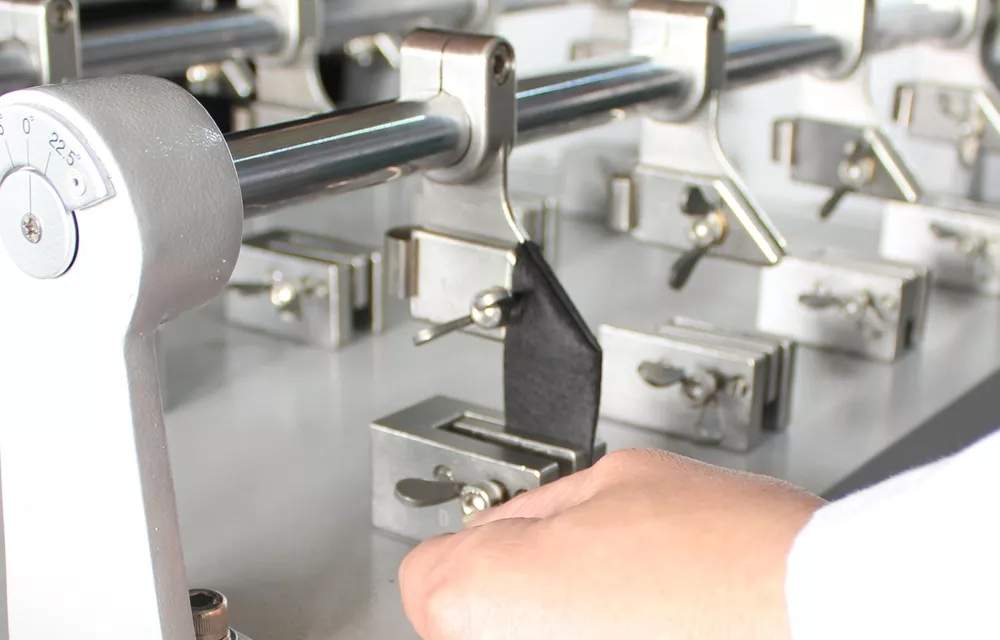

The Bally Leather Flexing Tester is used to test the flexing-resistance of leather for production of vamp, clothing materials, or bags. The test is run with a speed of 100CMP and flexing angle of 22.5°.

The Bally Leather Flexing test is conducted till the piece of leather cracks. The time taken is recorded for flexing-resistance. It has a memory function and can test more than one specimen at a time. Custom-made number of specimens for test is also available.

The Bally Leather Flexing test can also be done the above method for fixed times and note if it has cracked.

Bally Leather Flexing Tester Bally Leather Flexing Tester
Technical Specification of the Bally Leather Flexing Tester
Grip (Optional) A type 6 sets, B type 12 sets.
Test piece 45 x 70 mm
Flexing angle 22.5° ± 5°
Counter May set up 6 numbers, LCD display, switches off automatically. 0~99,999,999
Other inclusions Attached with angle regulation zero-returning device (enclosed with indication needle) and protection guard
Dimensions (WxDxH) 80 x 46 x 43 cm (31.5” x 18” x 16.9”)
Weight A type 60 kg, B type 78 kg
Power 1 Phase, 110V/60 Hz or 220V/50 HZ or others.
