Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150 Series

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150
Parent Product
Basic Video Measuring Machine (VMM)
Standards
ANSI/ASME B89.4.1
ISO 10360-7
ISO 14253-1
ISO 14978

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150

Vision Measuring Machine (VMM) performance does not have to be complicated for daily QC checks. The QualiVMM™ Basic 150 Series is a manual video measuring platform designed for reliable 2D measurement of parts on a stable granite structure. A precision stage, optical scale feedback, and iMeasuring software support consistent inspection results for routine manufacturing work.

This series uses a granite base and column for stability, plus a low-backlash motion structure designed to keep return error within 2 μm. A zoom lens and high-resolution color camera help deliver clear images for edge detection and feature measurement. Programmable LED surface and transmissive lighting make it easier to handle different part finishes and materials.

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150 Applications

  • Incoming inspection for machined parts
    • Check hole positions, slot widths, step features, and part-to-part variation before production starts. Manual control fits teams that need dependable measurements without full CNC automation.
  • Production QC for stamping and small metal components
    • Confirm profiles, radii, and edge geometry on parts that move quickly through the line. Consistent lighting and clear imaging help reduce operator subjectivity.
  • Plastic parts and molded components
    • Measure critical dimensions on molded parts where flash, texture, or reflectivity can affect visibility. Adjustable surface and transmissive illumination improves contrast for cleaner edge finding.
  • Electronics and small assemblies
    • Verify connector housings, small brackets, and fixture details using the camera and zoom optics. The workbench layout supports stable fixturing for repetitive checks.
  • Toolroom and calibration support
    • Use the system for quick dimensional checks of gauges, templates, and reference parts. Repeat accuracy is listed at 2 μm to support consistent daily verification routines.
Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150 Series

Standards

  • ISO 10360-7: Defines the protocols for acceptance and periodic reverification of CMMs equipped with imaging or video-based probing systems.
  • ISO 14253-1: Establishes the decision rules for determining part conformity or nonconformity, ensuring measurement uncertainty is properly accounted for.
  • ISO 14978: Provides the general concepts and essential requirements for Geometrical Product Specification (GPS) measuring equipment.
  • ASME B89.4.1: Sets the standard methods for evaluating and documenting the performance of coordinate measuring machines.

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150 Key Features

  • Granite base and column for stable measurement behavior
    • The structure is designed to support day-to-day repeatability and minimize vibration sensitivity.
  • Low return error stage design
    • A polished rod and fast-lock mechanism are specified to keep table return error within 2 μm.
  • Optical scale feedback with precision worktable
    • The system uses a high-precision optical ruler and worktable design, with accuracy listed within ≤3.0 + L/200 μm. maging for measurement tasks**
  • Programmable LED lighting for different part surfaces
    • 3-ring LED surface lighting plus transmissive LED parallel illumination help tl light is available for challenging finishes.
  • Measuring software
    • iMeasuring software for measurement gs used in QC and inspection environments.
  • Imaging for measurement tasks
    • Zoom optics and a high-resolution color digital camera support sharp images with minimal distortion.

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 150 Technical Specification

SpecificationQualiVMM™ Basic 150
Product TypeManual Video Measuring System
Granite Worktable (mm)310 × 220
Glass Stage (mm)179.5 × 129.5
X/Y Travel (mm)150 × 100
Linear Scale Resolution (X/Y)0.5 μm
Base and ColumnHigh-precision granite
Measurement Accuracy (E1x,y)* (μm)2.5 + L/200
Repeatability (μm)2
Illumination (software controlled)3-ring single-zone LED cold surface light; transmissive LED parallel light; optional coaxial light
Camera1/2.9" high-resolution digital camera, 1.6 Mpixel
Zoom Lens6.5× high-resolution zoom lens; optical 0.7×–4.5×; video 26×–172× (21.5" monitor)
Measuring SoftwareiMeasuring
Supported OSWindows 10/11 (32/64-bit)
Language OptionsEnglish, Simplified Chinese, Traditional Chinese (other languages optional)
Operating Conditions20°C ±2°C; <1°C/hr change; 30–80% RH; vibration <0.02 g, 15 Hz
PowerAC 220V / 50Hz; or 110V / 60Hz

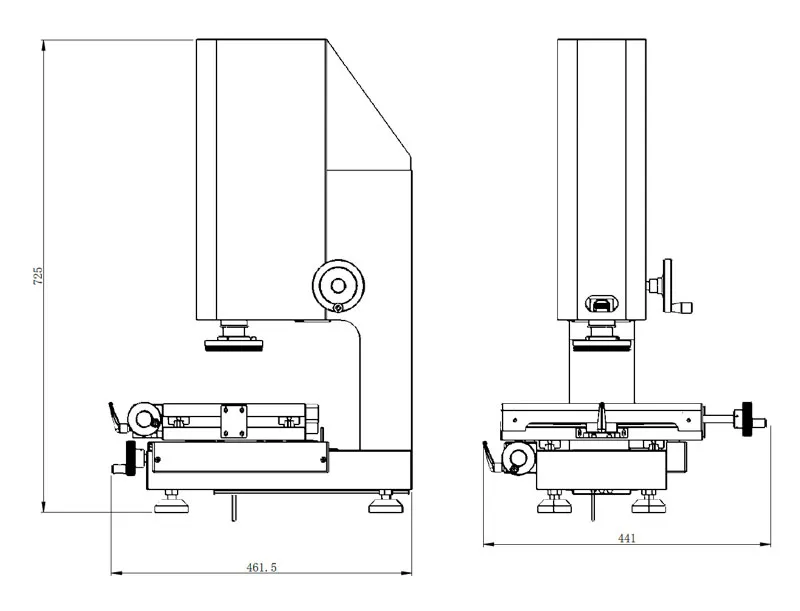

Dimensions (W × D × H, mm)462 × 441 × 725
Weight (Gross / Net, kg)60 / 48

* L = measured length (mm).

Measuring Range by Model

Travel Range (X × Y × Z, mm)ModelCode #X Travel (mm)Y Travel (mm)Z Standard Travel (mm)Z Max Custom Travel (mm)
150 × 100 × 100QualiVMM™ Basic 150525-020D150100100—
200 × 100 × 100QualiVMM™ Basic 200525-020E200100100200
250 × 150 × 200QualiVMM™ Basic 250 Series525-020F250150200300
300 × 200 × 200QualiVMM™ Basic 300 Series525-020G300200200400
400 × 300 × 200QualiVMM™ Basic 400 Series525-020H400300200400
500 × 400 × 200QualiVMM™ Basic 500 Series525-020J500400200400
