Measurement Principles & Image Modeling
Looking for a way to eliminate hand-gauge errors from your daily inspection routines? The QualiVMM™ Basic Series translates physical parts into digital coordinates through precise optical projection theory.
By passing light through 6.5X zoom lenses, the system captures clear boundary images, allowing the iMeasuring software to apply sub-pixel edge detection calculations for micrometer-level accuracy. Explore the core mathematical methods that make this contact-free measurement process possible below.
| Metrological Concept | Operational Function |
|---|
| Projection Modeling | Transforms solid shapes into flat pictures the computer can mathematically analyze |
| Sub-Pixel Edge Detection | Pinpoints physical material boundaries far better than the camera's raw pixel grid limitation |
| Uncertainty Calibration | Calculates exactly how much statistical trust you can place in your final numerical results |
Calibration & Coordinate Transformations
To ensure the iMeasuring software yields strictly reliable numbers, a high-quality Basic Vision Measuring Machine undergoes a thorough calibration process. It separates the internal optical characteristics (like how light waves bend through the curved glass lenses) from the external physical setup (how your parts sit flatly on the glass stage). The software runs complex coordinate calculations to guarantee the on-screen digital image corresponds perfectly with the physical piece of metal or plastic.

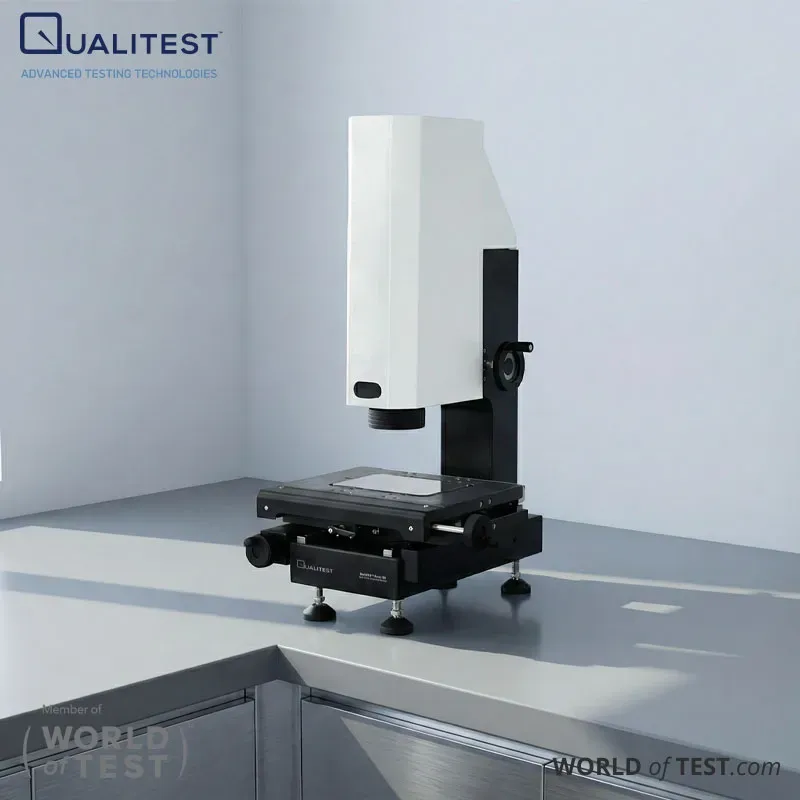

However, these theoretical spatial transformations are completely useless without an incredibly stable physical foundation. That is why the entire QualiVMM™ Basic Series lineup is built on a heavy, vibration-absorbing slab of dark granite.
This natural stone platform refuses to expand when your inspection room gets uncomfortably warm, which successfully eliminates thermal distortion errors. Even the compact, manual QualiVMM™ Basic 200 Series uses reliable optical scale feedback to keep the physical stage movement perfectly aligned with the theoretical coordinate grid.
Error Compensation & Precision Control
Theoretical uncertainty models show that inconsistent illumination and tiny positioning flaws are primary sources for optical measurement deviations. A Basic Video Measuring Machine manages these frustrating optical variables through smart hardware and software coordination.
Illumination Control
By tweaking the built-in, software-controlled LED bulbs, the system creates highly defined contrast on shiny reflective metals or dull dark plastics. This strict lighting methodology ensures the digital edge-detection algorithms are never fooled by irritating optical glare.
Positioning Compensation
Theoretical studies emphasize that tiny mechanical positioning errors can entirely throw off your coordinate data. Relying on high-grade mechanical guides keeps stage movement tracking in a straight line without any physical slop, whether you utilize the shorter travel limits of the 150 Series or the extended travel ranges of the QualiVMM™ Basic 300 Series.
Metrological Uncertainty Evaluation
By combining smart mathematical processing with heavy stone bases and adaptable LED illumination, these systems squeeze statistical measurement uncertainty down to tiny fractions of a millimeter. As your daily inspection demands inevitably grow, you can seamlessly add contact probing options with 3D measurement software to cross-verify the optical metrology results.
