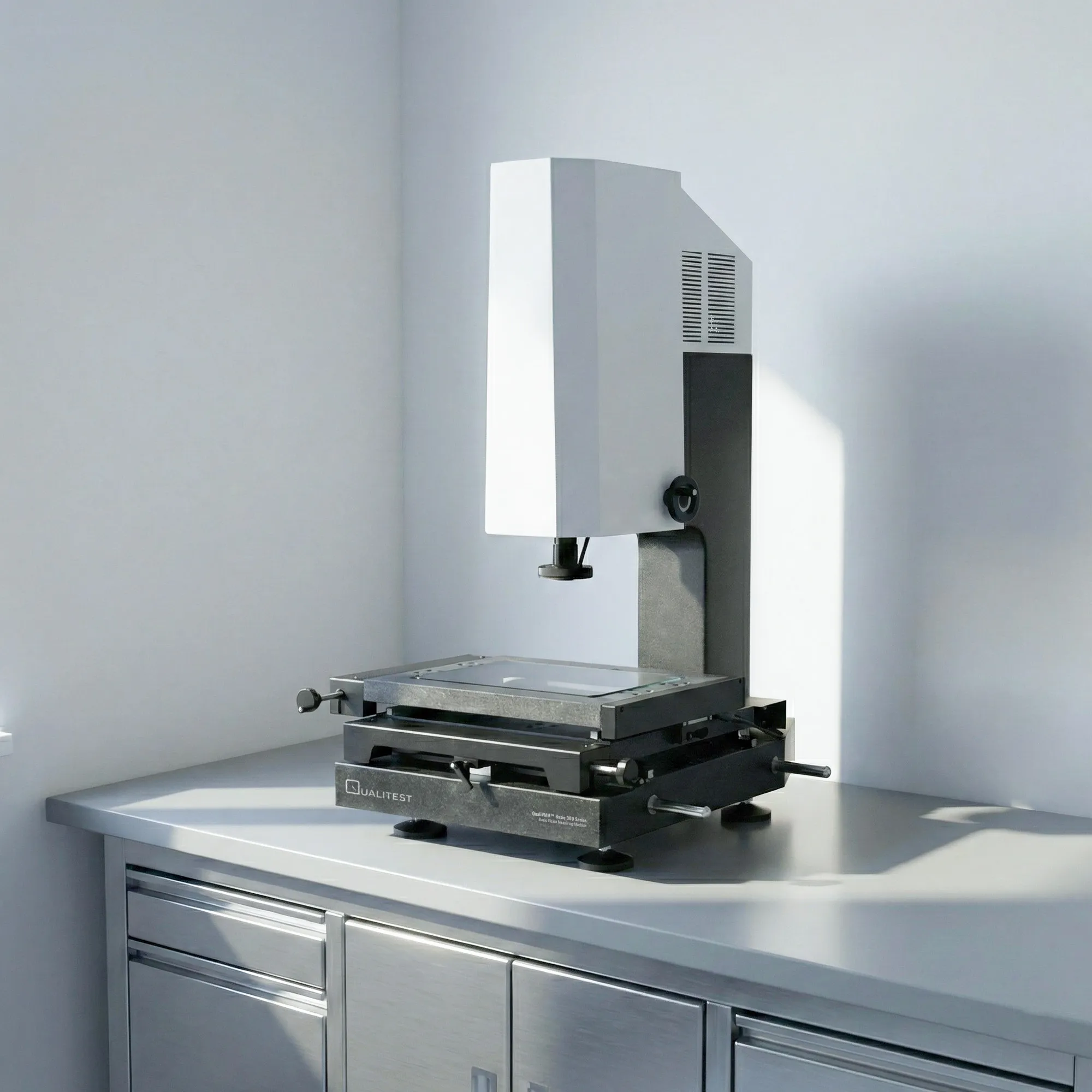

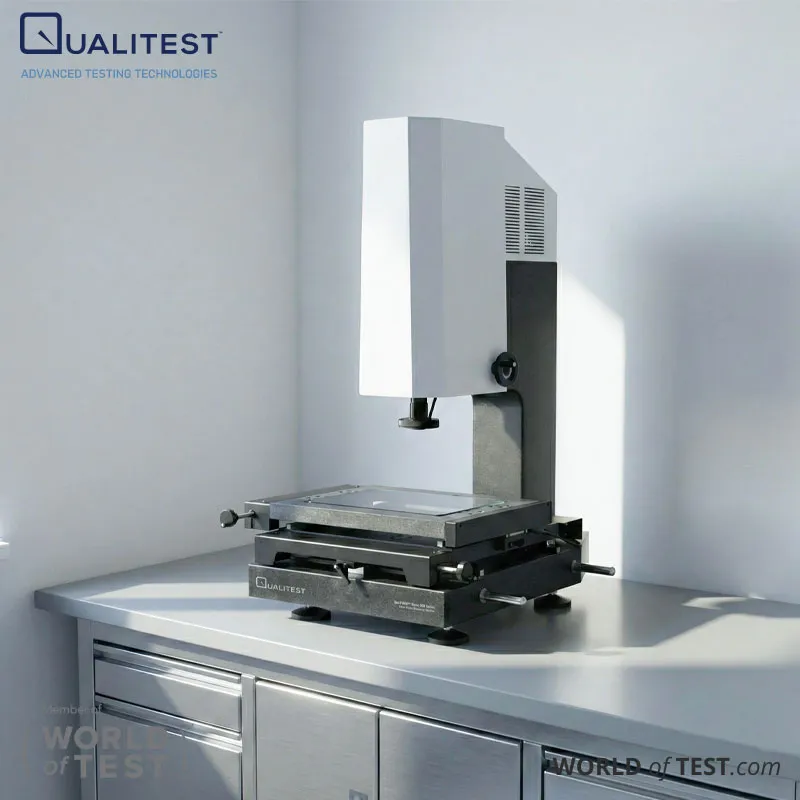

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 300 Series

Basic Vision Measuring Machine (VMM) – QualiVMM™ Basic 300 Series Applications

• Incoming inspection for machined components
  • Verify key dimensions on turned or milled parts before releasing them to production, using consistent optical measurement and documented results.
• In-process QC on stamped and laser-cut parts
  • Check profiles, hole patterns, edge quality, and feature spacing to reduce rework and catch drift early.
• Plastic and molded part measurement
  • Measure ribs, bosses, slot widths, and critical openings where contact methods risk deforming softer materials.
• Electronics and precision hardware
  • Inspect connectors, small fixtures, and precision assemblies where vision-based edge detection improves repeatability on small geometries.
• Tooling, fixtures, and gauges
  • Confirm fixture dimensions and alignment features during maintenance and verification checks to keep lines running consistently.

Standards

• ISO 10360 series (Acceptance and reverification tests for VMMs) ISO 10360 provides a recognized framework for acceptance and reverification testing of coordinate measuring systems.
• ISO 10360-7 (Imaging probing systems / vision measuring instruments) This part is widely referenced for testing non-contact VMMs equipped with imaging probing systems such as video/vision measurement.
• ISO 14253-1 (Decision rules for proving conformance/nonconformance) Defines decision rules that account for measurement uncertainty when declaring conformance to tolerances.
