Benchtop Thermal Camera Analyzer - QualiTCA™ 25B

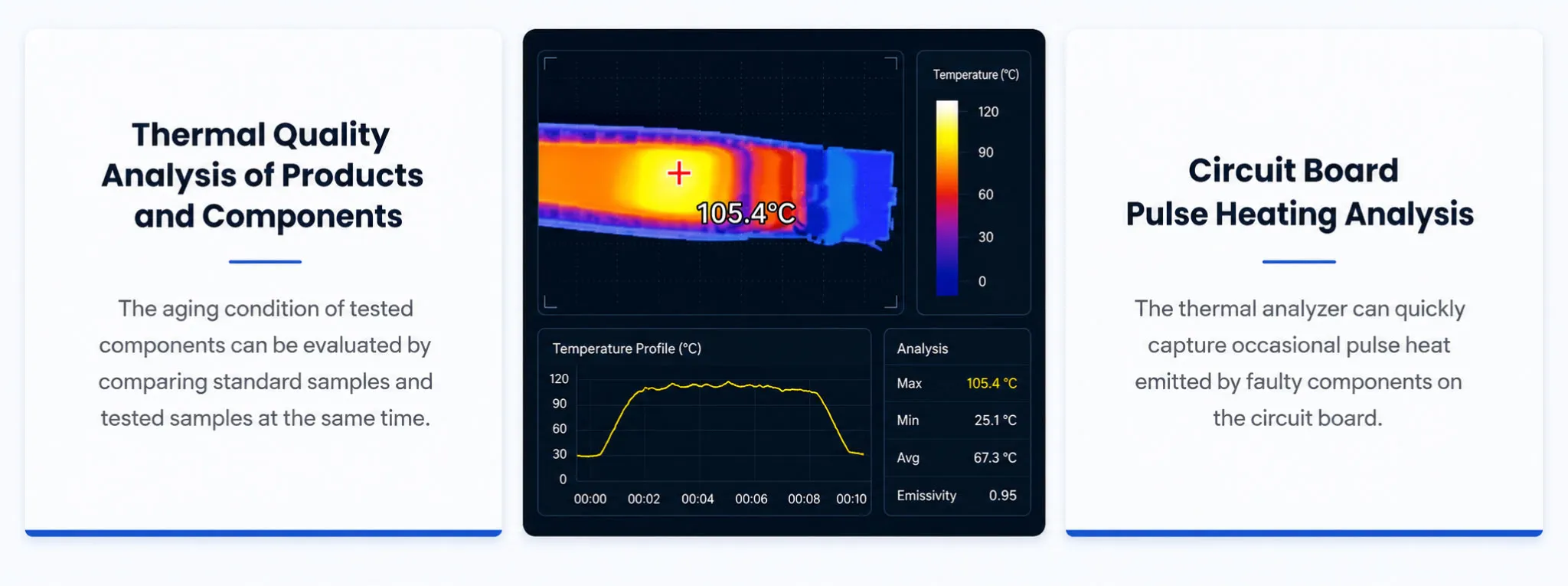

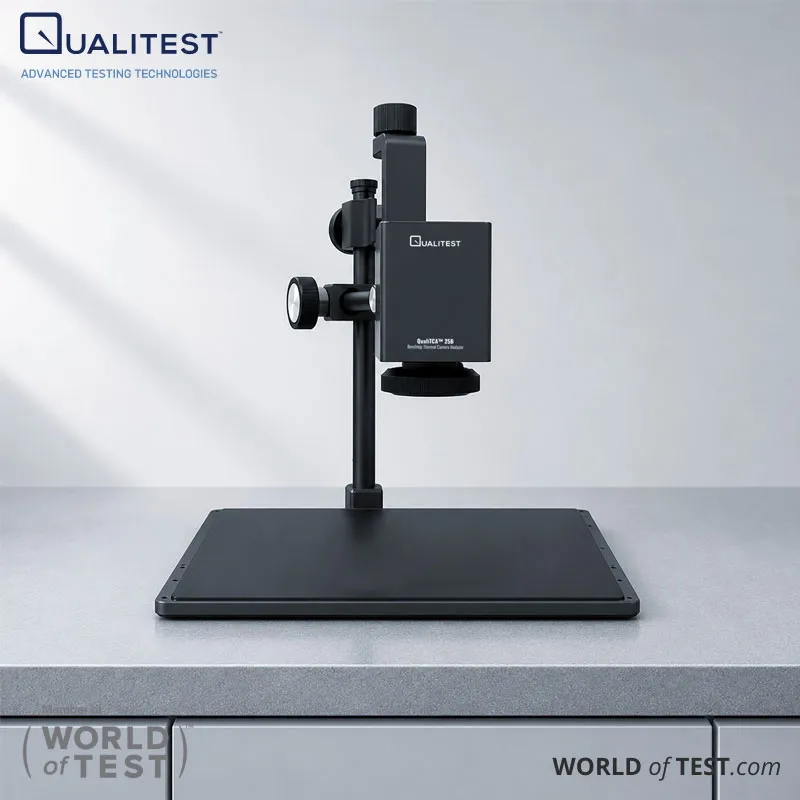

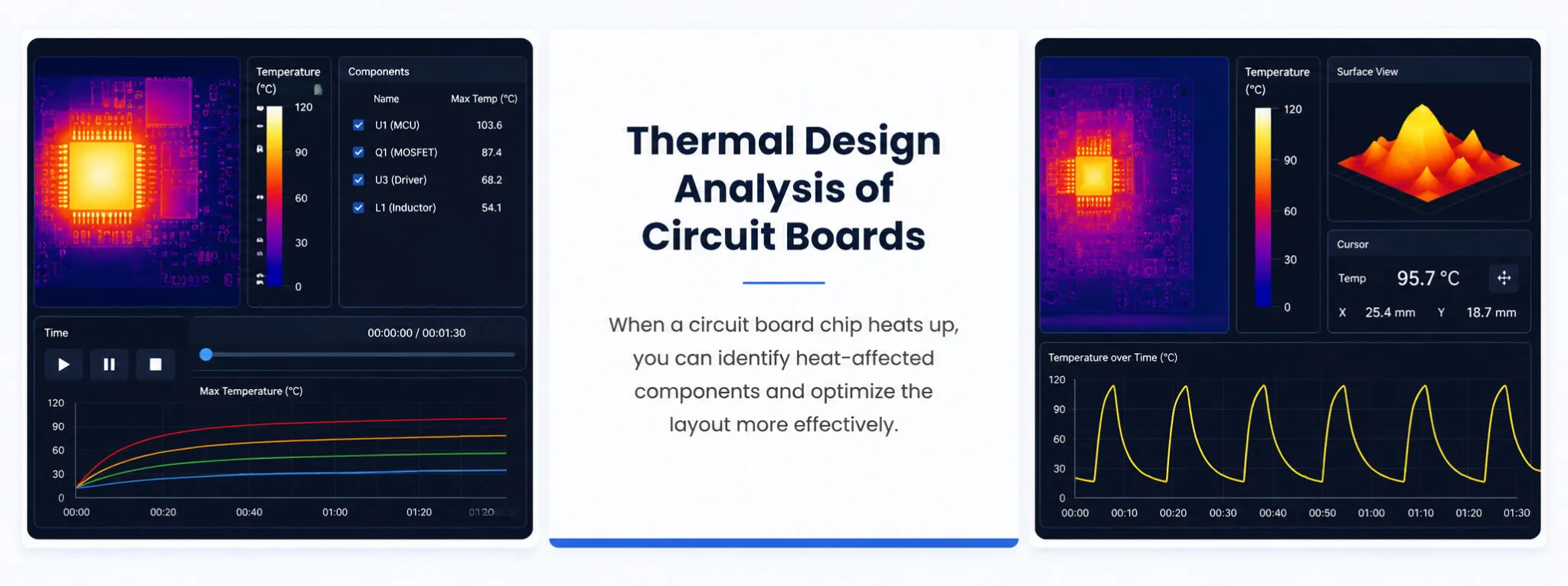

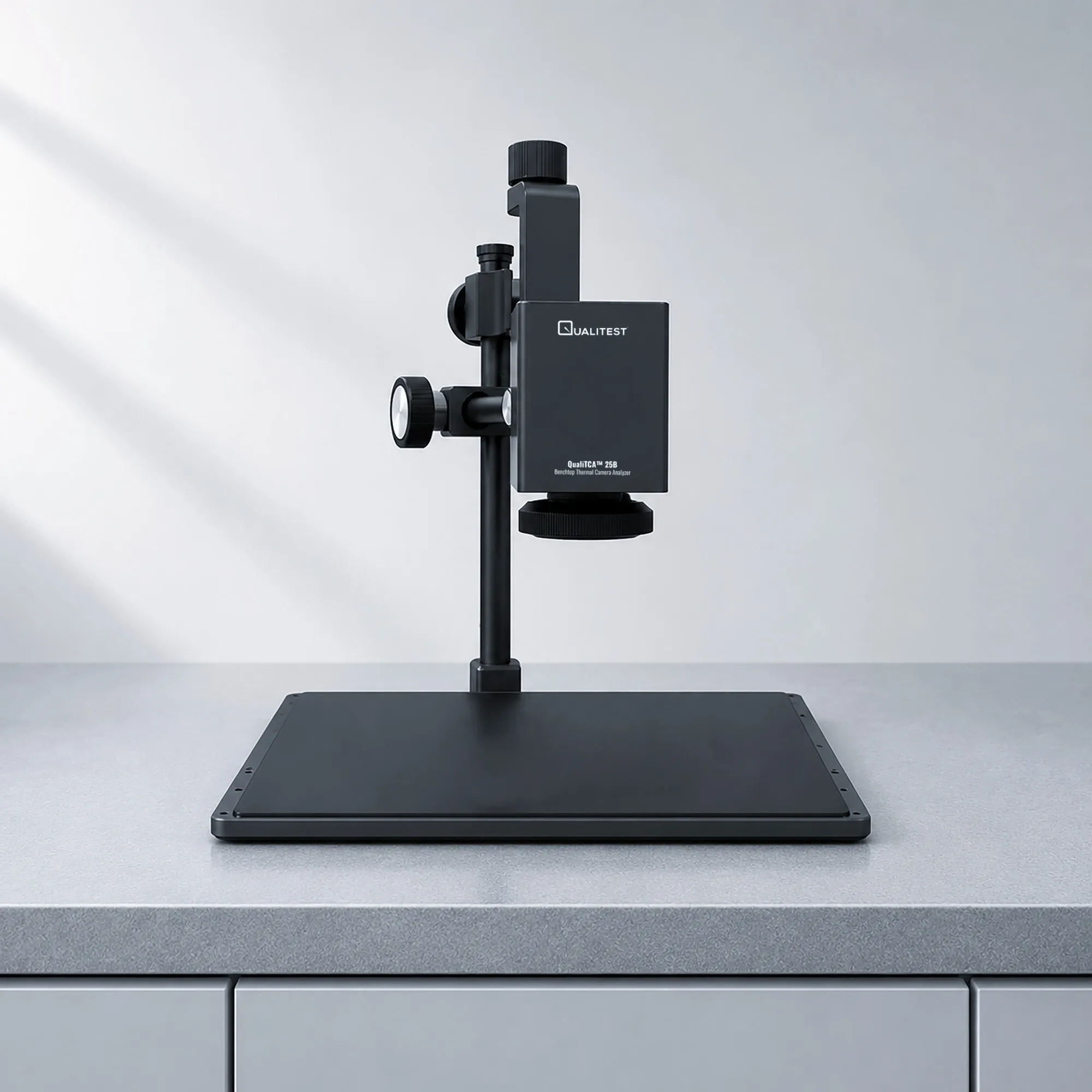

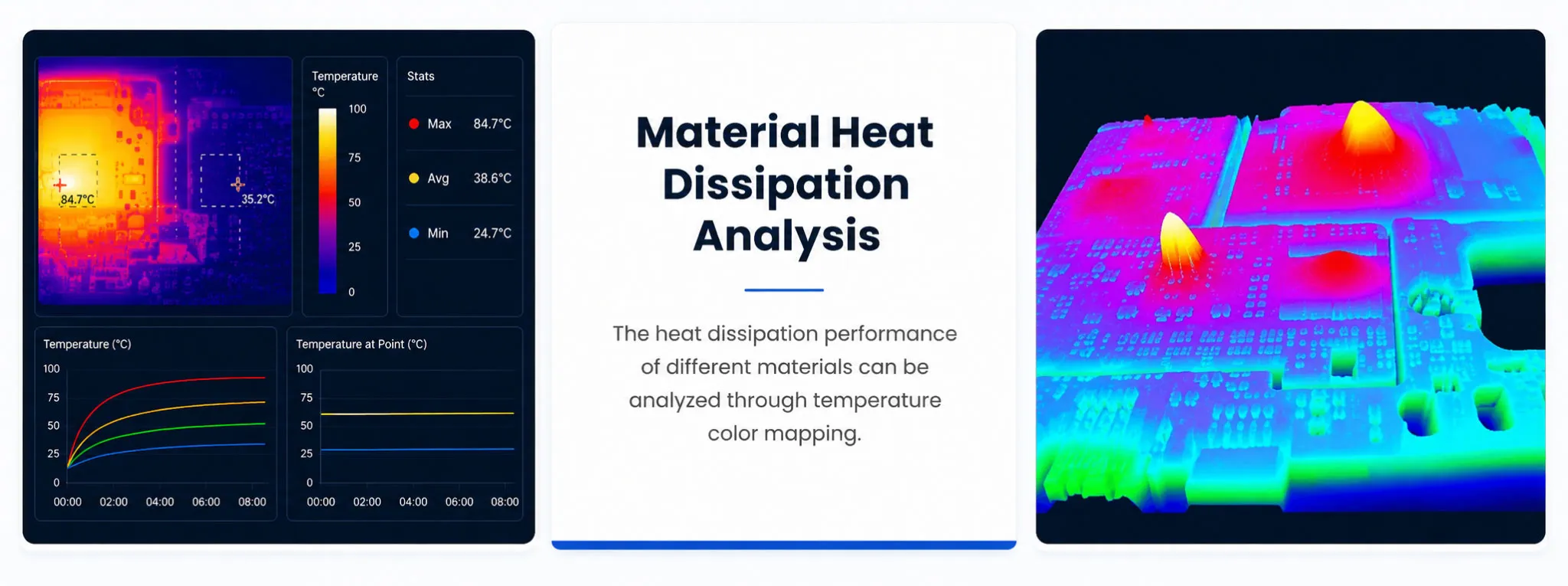

Benchtop Thermal Camera Analyzer - QualiTCA™ 25B is a benchtop thermal camera analyzer built for electronics repair technicians and materials engineers. It includes every diagnostic function of the QualiTCA™ 25A for circuit board repair, then adds thermal analysis data recording for materials, heat sinks, and heating elements. A 256×192 thermal sensor reads temperatures from -10°C to 550°C (14°F to 1022°F), covering electronics work and higher-temperature material testing. A multi-axial bracket with four adjustment knobs lets an operator angle the camera without repositioning the stand.

Focal length adjusts down to a 20mm minimum observation distance, with a maximum recommended distance of 1000mm, so the same unit handles both close component-level inspection and a wider board view. Two boards can be joined on the base to expand the floor area for a larger assembly. An external USB temperature sensor displays ambient temperature alongside the thermal reading. The camera streams full-screen temperature video at an 80ms data recording interval for smooth playback.

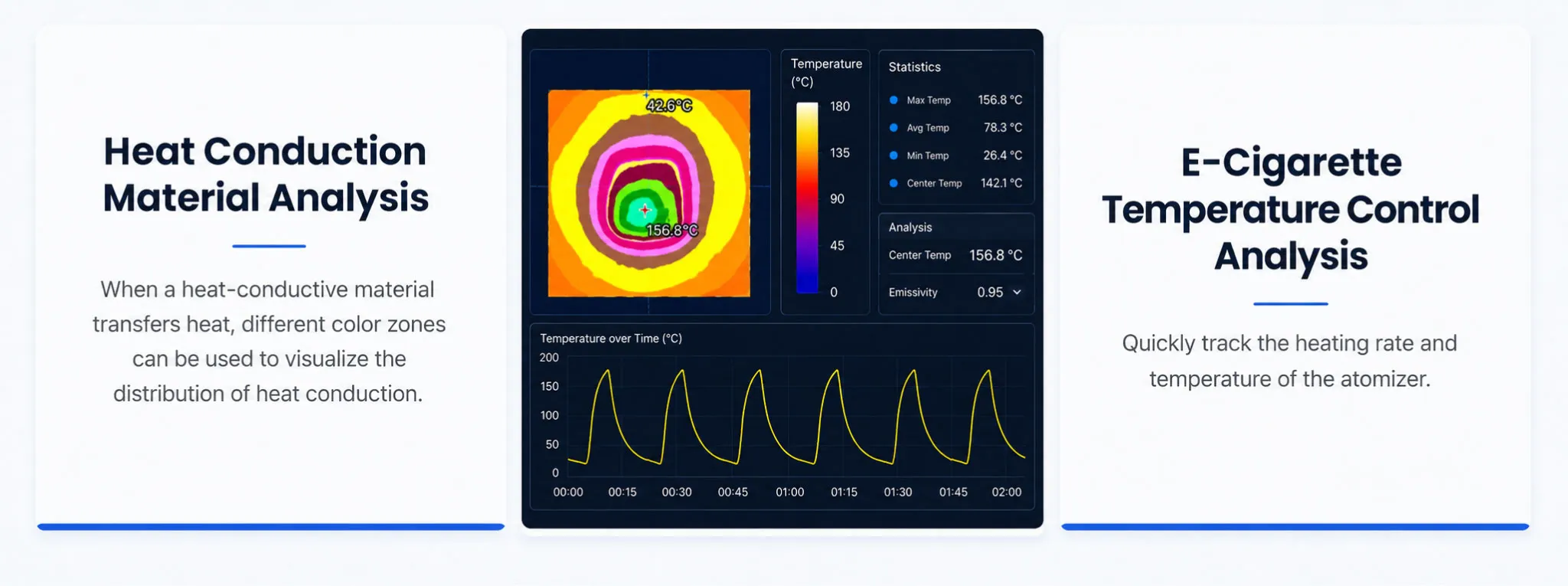

The included Professional Edition software runs on Windows 10 or 7 with an Intel i3 processor and 4GB of memory or better, updating automatically or on demand over the internet. Adjustable emissivity from 0.1 to 1.0 lets an operator correct readings for different material surfaces. Configurable sampling from 1 to 20 frames per second balances file size against smooth playback. Optional accessories, including an atomizer test fixture, an automatic heating test bench, and an experiment box, extend the QualiTCA™ 25B to specialized testing setups.
