Black Test Corner - QualiHSA™ BTC

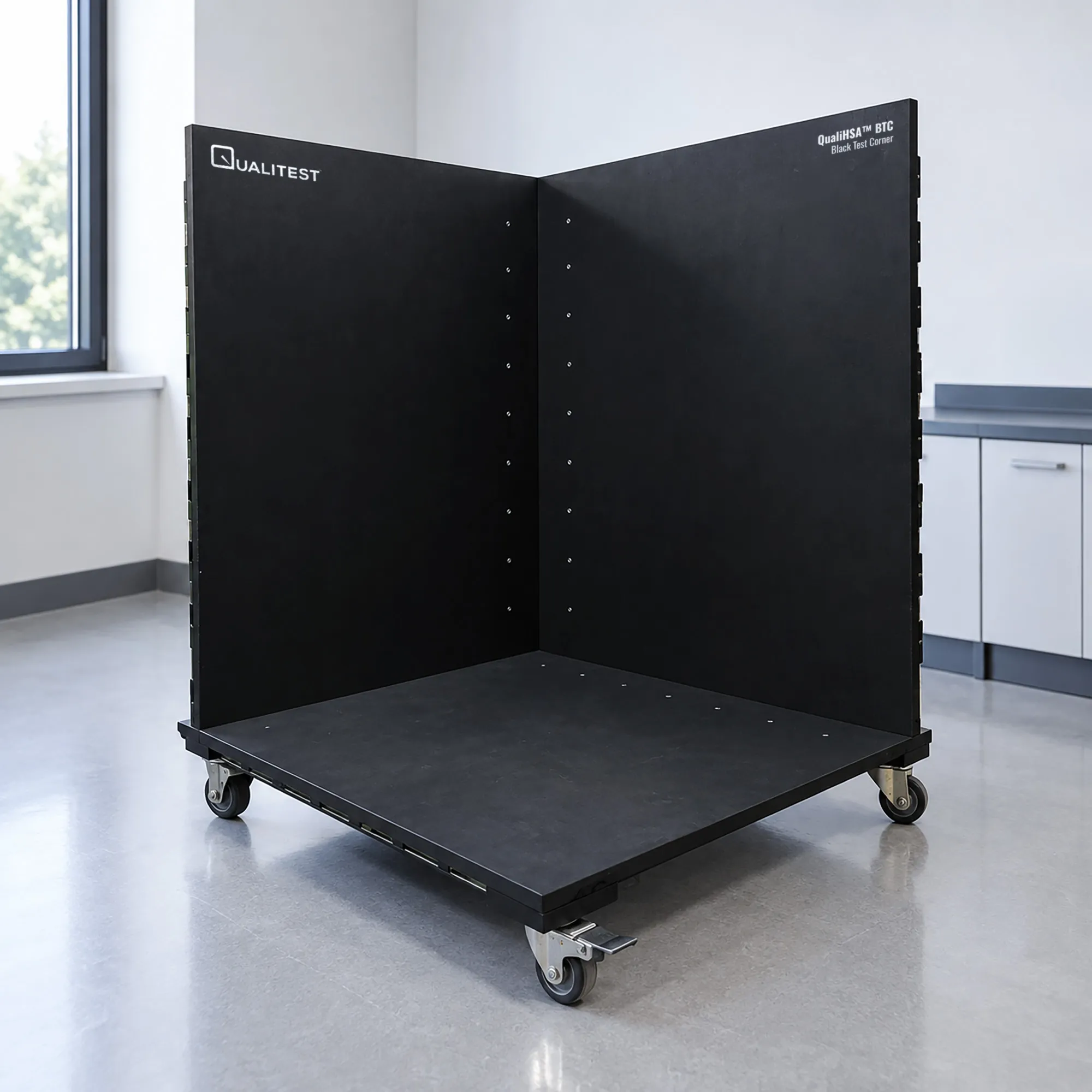

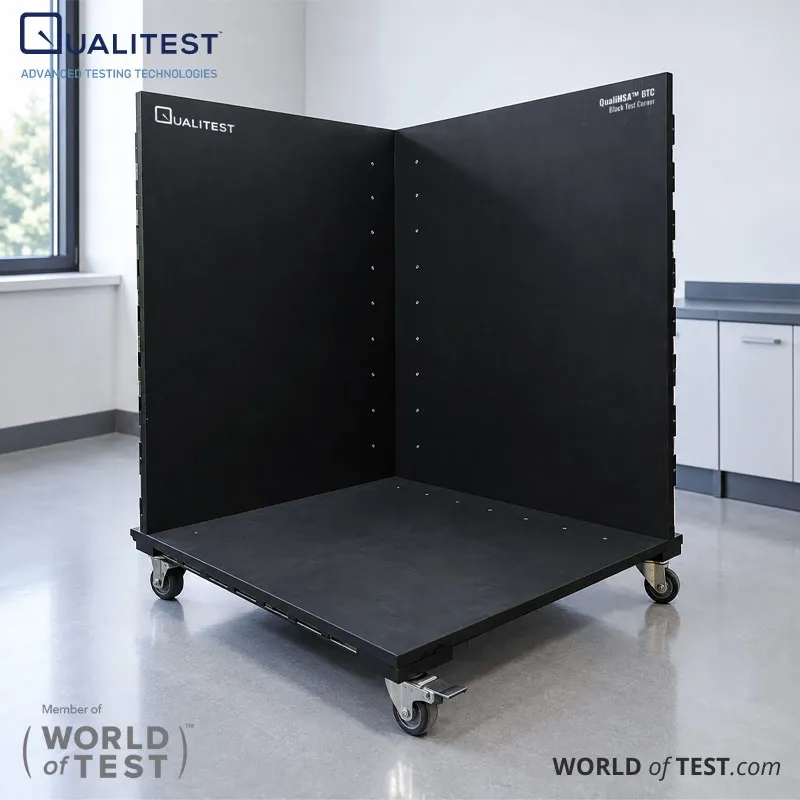

Black Test Corner QualiHSA™ BTC reproduces the matte black plywood enclosure that IEC 60335-1 specifies for appliance temperature rise testing. Laboratories place the appliance inside the corner, operate it under normal or fault conditions, and record how far the surrounding surfaces heat up. Fine-wire K-type thermocouples bonded to blackened brass discs sit flush with each panel and feed a numbered connector bank. Test engineers gain a repeatable worst-case installation environment for safety evaluation.

Three standard sizes cover most appliance categories: 600 × 600 × 800 mm, 800 × 800 × 1000 mm, and 1000 × 1000 × 1000 mm. Each unit uses plywood panels around 20 mm thick, finished in matte black on the test face and gray-faced board at the rear. Measuring points follow a 100 mm grid set 100 mm back from the panel edges, supplied in 20, 32, or 48 point layouts. Four casters let a single technician reposition the corner between test bays.

Appliance manufacturers, in-house safety labs, and third-party certification houses use the QualiHSA™ BTC to qualify products against heating and abnormal operation requirements. The fixture stays passive, so it needs no electrical supply and no service beyond periodic thermocouple checks. Panel sizes, point counts, and grid spacing can be built around a specific product family. Design teams also run the corner during development, well before a formal certification submission.

Black Test Corner - QualiHSA™ BTC Applications

The QualiHSA™ BTC supports heating and abnormal operation testing across the appliance categories that manufacturers ship into North America and Europe. Any product intended to sit against a wall, on a floor, or inside a cabinet belongs in a test corner at some point in its safety program.

  • Household Appliance Manufacturing: temperature rise verification on kettles, toasters, coffee makers, and other small kitchen appliances before design freeze
  • Third-Party Certification Laboratories: repeatable heating-clause setups that support safety files submitted to certification bodies
  • Space Heating Products: convection heaters, oil-filled radiators, and fan heaters evaluated against wall and floor surfaces at close spacing
  • Built-In and Wall-Mounted Appliances: extractor hoods, wall ovens, and hand dryers fixed to the corner panels the way the installation instructions describe
  • Motor-Operated Appliances: vacuum cleaners, food processors, and portable tools checked for casing and winding heat under continuous load
  • Consumer Electronics and IT Equipment: power supplies, chargers, and set-top boxes assessed for surface heating in confined placements
  • Abnormal Operation and Fault Testing: blocked airflow, stalled motor, and disabled control scenarios monitored for wood surface temperature
  • Contract Manufacturers: pre-compliance screening that catches thermal problems before a client submits the product for certification
Black Test Corner

Standards

The QualiHSA™ BTC is designed to align with the test corner construction described in the heating clause of IEC 60335-1. Panel thickness, surface finish, measuring disc geometry, and thermocouple type all follow that description.

  • IEC 60335-1 - Household and Similar Electrical Appliances: Safety: Part 1: General Requirements

Black Test Corner - QualiHSA™ BTC Key Features

The QualiHSA™ BTC keeps the construction details that decide whether a heating test is defensible, while staying simple to move and maintain. Every panel, disc, and lead is arranged for fast setup and clean channel mapping.

  • Matte Black Plywood Panels: roughly 20 mm plywood finished in matte black on the test face, matching the surface condition the standard describes
  • Gray-Faced Rear Board: laminated backing that protects each panel from moisture and handling damage in a busy laboratory
  • Three Standard Footprints: 600 mm, 800 mm, and 1000 mm builds cover small counter appliances through floor-standing units
  • Flush Brass Measuring Discs: 15 mm diameter, 1 mm thick discs sit level with the surface, so they read wall temperature rather than air temperature
  • Fine-Wire K-Type Thermocouples: wire under 0.3 mm in diameter keeps conduction error low and gives fast response at every point
  • Numbered Connector Bank: each thermocouple lands on a matched plug and socket, so the operator maps channels to a data logger without tracing wires
  • Selectable Point Density: 20, 32, or 48 measuring points, with other counts available for unusual product shapes
  • 100 mm Measuring Grid: points spaced 100 mm apart and set 100 mm in from the panel edges for consistent coverage
  • Four Casters: one technician can roll the corner between test bays or move it aside when the floor space is needed
  • Custom Build Service: panel sizes, point layouts, and connector arrangements made to a laboratory's own specification

Theory and Method

An appliance pushed against two walls loses far less heat than the same appliance sitting in open air. The corner geometry blocks convective airflow on two sides, traps the rising plume near the ceiling, and returns radiant energy toward the appliance and the adjacent panels. Test standards therefore fix the corner as the reference worst case for installed products. Measuring surface temperatures inside that geometry tells engineers whether wooden surroundings in a real kitchen or living room would reach an unsafe temperature.

Matte black paint gives the plywood an emissivity close to unity, so the panels absorb nearly all radiant energy striking them instead of reflecting part of it away. A glossy or light surface would reflect radiation, run cooler, and understate the thermal load a dark cabinet or dark wall would actually see. The black finish removes that variable and makes results comparable between laboratories. Plywood around 20 mm thick supplies the thermal mass and conductivity that the standard assumes.

Each measuring point uses a blackened brass disc 15 mm across and 1 mm thick, set flush with the painted face. The disc averages heat over a defined area, which cuts scatter between repeat runs. A K-type thermocouple bonded behind the disc carries wire under 0.3 mm in diameter, so the leads drain almost no heat from the junction. All leads terminate at a numbered connector bank, letting the operator patch any point to a data logger.

Black Test Corner - QualiHSA™ BTC Technical Specifications

ParameterSpecification
Available Sizes (W × D × H)600 × 600 × 800 mm; 800 × 800 × 1000 mm; 1000 × 1000 × 1000 mm
Panel MaterialPlywood, approximately 20 mm thick
Test Face FinishMatte black paint
Rear Face FinishGray-faced sheet board
Thermocouple TypeK-type
Thermocouple Wire DiameterLess than 0.3 mm
Thermocouple TerminationLeads routed to a common terminal bank with matched thermocouple plugs and sockets
Measuring Disc MaterialBrass
Measuring Disc Dimensions15 mm diameter, 1 mm thick
Measuring Point Count20, 32, or 48 points (other counts available)
Measuring Point Layout100 mm × 100 mm grid, 100 mm from panel edge
MobilityFour casters
Power SupplyNot required (passive test fixture)
Data AcquisitionConnects to a user-supplied temperature recorder or data logger
CustomizationPanel sizes, point counts, and layouts built to order

Size Configurations

ModelOverall Dimensions (W × D × H)Typical Use
QualiHSA™ BTC-600600 × 600 × 800 mmSmall countertop and handheld appliances
QualiHSA™ BTC-800800 × 800 × 1000 mmMid-size kitchen, heating, and motor-operated appliances
QualiHSA™ BTC-10001000 × 1000 × 1000 mmLarge floor-standing and wall-mounted appliances
