Household Appliance Safety Testing Equipment

Appliance Safety Testing Equipment Range

Three fixtures cover the thermal and mechanical clauses that appliance programs hit most often. Each targets a different failure mode.

Black Test Corner (QualiHSA™ BTC)

A matte black plywood corner that reproduces the worst-case installation environment for temperature rise testing under the heating clause. Fine-wire K-type thermocouples sit behind flush brass discs on a 100 mm grid, supplied in 20, 32, or 48 point layouts across three standard sizes. It suits labs qualifying appliances that sit against a wall, on a floor, or inside a cabinet.

Scratch Resistance Tester (QualiHSA™ SRT)

A hardened steel needle with a 40 degree apex and R0.25 mm tip, drawn under a 10 N load to check coatings acting as supplementary or reinforced insulation. PLC control and a 7-inch touchscreen hold scratch speed, length, and spacing, while automatic 90 degree indexing runs both scratch directions without reclamping. It suits coated printed board and enclosure work.

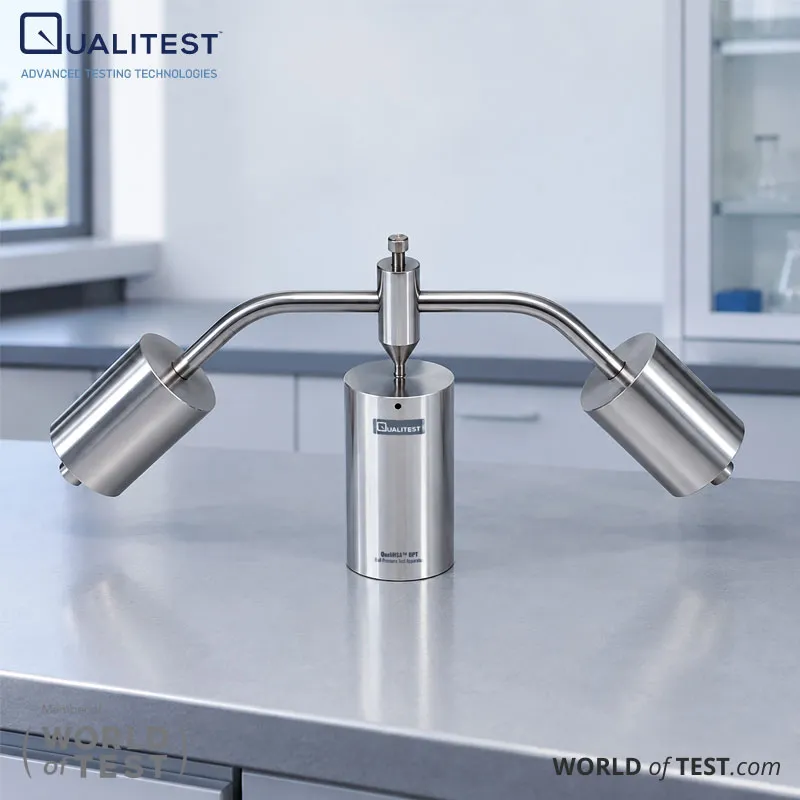

Ball Pressure Test Apparatus (QualiHSA™ BPT)

A 5 mm steel ball pressed into a heated specimen at 20 N inside a heating cabinet held at the temperature the product standard names. An indentation of 2.0 mm or less passes. Built entirely from stainless steel with a solid support cylinder, it suits molded insulating parts across appliance, luminaire, plug, and coupler programs.

How to Choose the Right Appliance Safety Testing Equipment

• For temperature rise and abnormal operation testing: choose the Black Test Corner, which reproduces the wall, floor, and ceiling arrangement the heating clause calls for.
• For coated printed boards used as insulation: choose the Scratch Resistance Tester, which holds the 10 N needle load at a controlled speed across every pass.
• For molded parts that must hold their shape at temperature: choose the Ball Pressure Test Apparatus, which works inside a heating cabinet you already own.
• For a full IEC 60335-1 bench: take all three, since heating, mechanical strength, and resistance to heat are separate clauses with separate fixtures.
• If floor space is tight: specify the 600 mm test corner and roll it between bays on its casters.
• If you outsource certification but want early answers: start with the ball pressure apparatus and the scratch tester, which catch material problems at the design stage.
