The Cement Compression Tester 300kN, Model Q-CemCT300, offers exceptional quality at a competitive price. Its rigid steel frame ensures stability during compressive strength tests on gypsum, mortar, cement, and light concrete. Meeting DIN EN 196 and DIN EN 7500-1 standards with German accuracy, it also complies with ASTM, ISO, and BS standards. Customizable force ranges (100kN, 150kN, 200kN) are available.

Cement Compression Tester 300kN

Cement Compression Tester 300kN

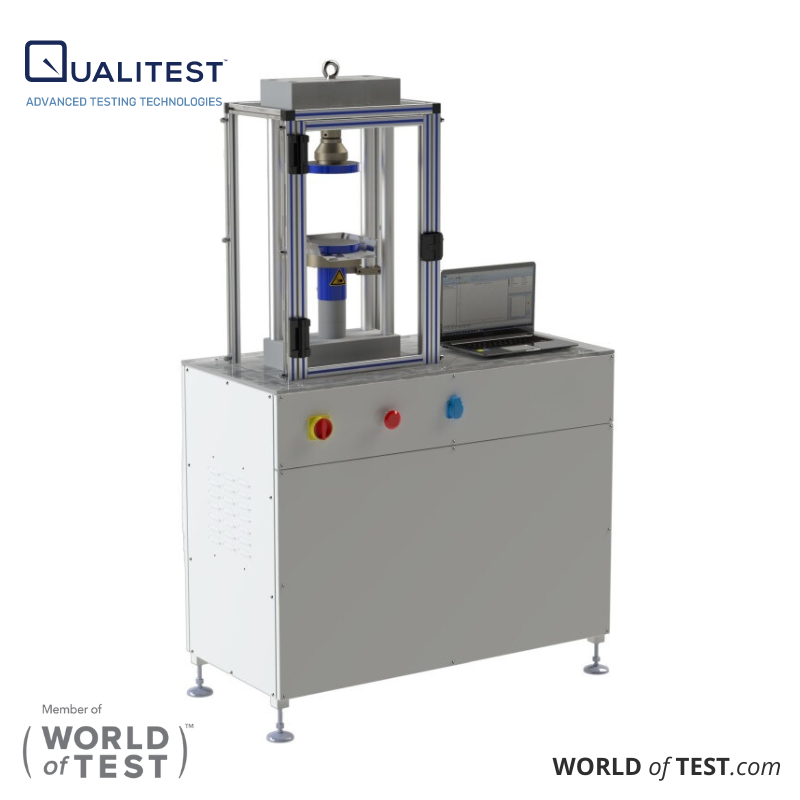

Cement Compression Testing Machine Model Q-CemCT300 is a top quality and yet cost-effective single-frame Compression Tester, suitable for compressive strength tests of gypsum, mortar, and cement samples, as well as light and aerated concrete.

The steel frame is extremely rigid, and the columns are tensioned without any movement. With access to both sides, the insertion of various test fixtures according to standards and type of material is possible.  The Top-rated Cement Compression Tester has been made according to DIN EN 196 and class 1 according to DIN EN 7500-1 with German accuracy.

Standards:

  • ASTM C109, ASTM C348, C349, DIN EN 196, 1015, ISO 679, BS 3892 (and more).

Other force ranges available upon request:

  • 100 kN
  • 150 kN
  • 200 kN

Cement Compression Tester 300kN Technical Specifications:

Force display range

0 - 300 kN (0-67,500 lb.f)

Force measuring range

6 - 300 kN, class 1

Stroke

60 mm

Test chamber height

max. 210 mm

Column spacing

front 280 mm

Machine platens dia

165 mm acc. to EN 196

Dimensions (W x D x H)

1200 x 570 x 1950 mm

Weight

420 kg

Voltage

3 ~ 400 V / 50 Hz / 1.1 kW

Other compression plates, and fixtures according to different standards are also available as options.

Safety

Plexiglass transparent protection shield as standard.

Controller

High-precision Doli EDC Controller provides fully automated test procedures with a predetermined rate of loading force-controlled tests (deformation and displacement-controlled tests require other optional accessories). Automatic break detection.
