Core Physics & The Standard Pendulum Method
The underlying physical science behind Charpy Impact Testers for Metals is exceptionally straightforward to grasp, as it essentially measures the exact quantity of kinetic force permanently lost when the heavily weighted swinging mass crashes completely through the supplied test specimen. There is zero room for vague guesswork in your high-volume quality control laboratory, as anyone managing non-stop production lines knows too well, and our QualiImpact™ M-Series systems are structurally engineered to make this physical testing process satisfyingly clear.
- The Action: A heavily weighted metal mass mounted on a swinging arm is physically raised to a precisely calibrated starting position, which is an exact 150° angle of release, and let go, allowing the heavy mechanical unit to strike a small, prepared metal bar featuring a specially machined tiny notch directly in the very center.
- The Math: The massive amount of physical energy soaked up by the sample is determined by visually tracking the exact stopping height the swinging arm reaches on the upward return follow-through. If the swinging follow-through is heavily restricted, the metal sample successfully resisted the sudden, violent force. Mathematically, we express this physical interaction as U = m g (h - h1), which simply compares the initial starting drop height with the post-impact finishing height.
- The Payoff: This exact measured value explicitly represents the structural metal's notch toughness. Our standard Quali-Impact M150, M300, and M450 testing units deliver highly reliable energy-breaking capacities of 150 J, 300 J, and 450 J to rigorously evaluate structural grade steels and high-strength industrial alloys. This fully verifies your heavy-duty building materials meet incredibly strict safety limits and global compliance benchmarks like ASTM E23 and ISO 148-1 before being approved for use in heavy structural construction.
Instrumented Testing & Fracture Mechanics
Standard-issue, traditional testing setups supply the basic, bare-minimum force numbers. However, our highly specialized, sensor-stuffed upgrade packages feature smart, incredibly precise strain gauges that catch every single micro-second of violently applied force, turning a simple "did it break or survive" testing machine into a highly flexible analysis system that explicitly explains exactly why and how the metal split apart. For testing facilities requiring maximum, granular detail, instrumented Charpy Impact Testers for Metals provide data layers far beyond standard energy values, strictly complying directly with ISO 14556 laboratory protocols.
- The Smart Striker: Instead of a simple, solid block of hardened steel, the physically swinging hammer features highly sensitive, carefully placed internal strain sensors. At the exact millisecond of physical contact, the internal electronic system captures the precise load pressure and material strain, translating a split-second, violent physical impact into a beautifully clear, highly detailed visual graph of force-time and energy-time traces.
- Splitting the Impact Phases: This specific, highly sensitive electronic setup allows your technicians to easily divide the total, entirely absorbed energy into three distinctly separate chapters: the exact fraction of a second when the crack first begins, how the structural failure slowly propagates, and the final, catastrophic moment of complete physical fracture.
- Deep-Level Data: Separating these physical, split-second phases yields highly technical engineering parameters, such as the incredibly specific JId and KJd values, that connect your raw, physical test numbers directly to advanced, deep-level fracture mechanics, permanently replacing basic visual guesswork with absolute scientific certainty.
System Geometry, Velocity & Calibration
To strictly ensure you receive completely identical, highly trustworthy numerical results during every single laboratory test run, the physical dimensions and mechanical calibration of Charpy Impact Testers for Metals must be mechanically aligned with extreme, zero-tolerance precision. The heavy-duty Quali-Impact Series achieves this absolute consistency by pairing highly specific mechanical supporting structures with specialized, low-friction moving components.
Specimen Dimensions & Notch Variables
The physical, kinetic energy absorbed by a supplied sample depends heavily on how physically wide the metal piece is. We accommodate this strict sizing perfectly with external specimen-centering devices and quick-change supporting anvils that massively speed up your daily testing workflow. Additionally, the precise physical shape of the machined notch completely alters the failure behavior, which is precisely why we provide easily interchangeable, hardened steel strikers for both heavily utilized V-notch and U-notch testing methods.
Pendulum Velocity & Frame Rigidity
Extensive, highly detailed laboratory testing absolutely proves that a highly stable, consistent impact speed produces the most consistently reliable energy readings. Our manual, bench-level testing systems deliver a strictly guaranteed impact velocity of 5.2 m/s. Furthermore, a massively heavy, one-piece rigid supporting frame actively neutralizes shaking vibrations and parasitic energy loss, making your final reported numbers incredibly reliable.
Striker Alignment & Measurement Calibration
The physical, swinging behavior of the heavy hammer can heavily influence the final force measurements, especially when dealing with brittle, highly fragile materials that snap apart incredibly easily. To strictly guarantee absolute, undeniable accuracy, these testing systems feature optimized, physically balanced hammer shapes for incredibly simple, highly reliable static calibration. Laboratory operators maintain complete, absolute physical control with a highly transparent, easy-to-read angle indicator boasting a remarkably fine 0.1° resolution for total, unwavering test repeatability.
System Configurations & Safety Enclosures
Rather than dealing with strictly academic, theoretical testing models, our industrial-grade testing configurations focus exclusively on what actually works inside a busy, high-volume material laboratory.
- Electronic Instrumented Upgrades: This highly requested technological addition provides a millisecond-by-millisecond electronic breakdown of applied force and kinetic energy, specifically identifying the exact, unseeable moment the internal metal crack initiates.

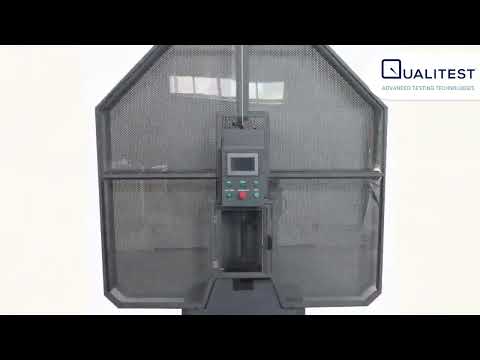

- Safety-First Interlocked Enclosures: This physically protective safety setup features a fully transparent, highly durable safety cage paired with an electrical safety door interlock. It completely refuses to open until the heavy, swinging pendulum completely rests, which fully protects your busy laboratory operators without annoyingly slowing down the daily testing throughput. Our scalable QualiImpact™ M-Series setups handle standard capacities of 150 J, 300 J, and 450 J, with options extending up to massive 750 J impact limits, to perfectly match your laboratory’s specific regulatory standards.
