Charpy Izod Pendulum Impact Tester for Plastics - QualiGIT™ Galaxy Series
Parent Product
Charpy & Izod Pendulum Impact Tester for Plastics
Standards
ASTM D256
ISO 179
ISO 180

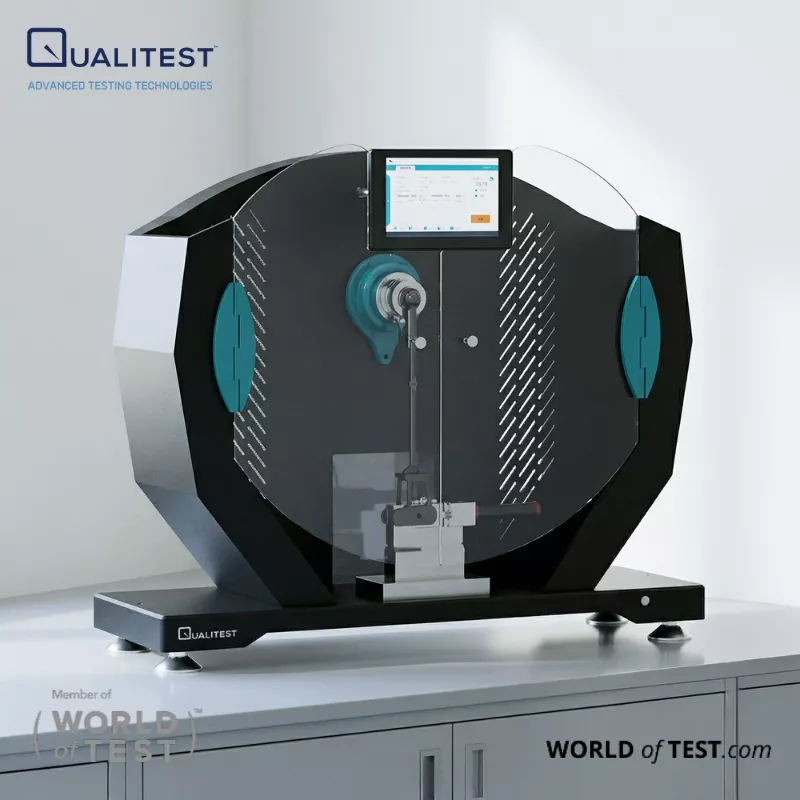

Charpy Izod Pendulum Impact Tester for Plastics - QualiGIT-Galaxy Series

Charpy Izod Pendulum Impact Tester for Plastics - QualiGIT™-Galaxy Series

Introducing the QualiGIT™-Galaxy Series, the latest breakthrough in impact testing technology for plastics. Designed to meet and exceed international standards ISO 179, ISO 180, and ASTM D256, this cutting-edge Charpy and Izod Pendulum Impact Tester is available in four different configurations with varying energy levels, making it the ideal solution for a wide range of testing requirements.

Since its recent launch, the QualiGIT™-Galaxy Series has quickly gained recognition for its unmatched precision, repeatability, advanced software, and superior design. Engineered for user-friendliness and built with the highest manufacturing quality, this model offers a 3-year warranty and comes at an unbeatable price, setting a new industry standard.

Charpy Izod Pendulum Impact Tester for Plastics - QualiGIT-Galaxy Series
Charpy Izod Pendulum Impact Tester for Plastics - QualiGIT-Galaxy SeriesCharpy Izod Pendulum Impact Tester for Plastics - QualiGIT-Galaxy SeriesCharpy Izod Pendulum Impact Tester for Plastics - QualiGIT-Galaxy Series

Why Choose the QualiGIT™-Galaxy Series Charpy Izod Pendulum Impact Tester ?

  • Complies with ISO 179, ISO 180, and ASTM D256 Standards
  • Superior Precision & Repeatability
  • Most Advanced Software & Smart Data Processing
  • Intuitive Touchscreen Control & PC Connectivity
  • Unmatched Safety Features & Ergonomic Design
  • Industry-Leading 3-Year Warranty
  • Best Value for Money

Upgrade your impact testing capabilities with the QualiGIT™-Galaxy Series Charpy Izod Pendulum Impact Tester—where precision, innovation, and affordability come together to deliver the best testing solution on the market.

Key Features & Advantages

1. Patented Pendulum Structure for Maximum Accuracy

  • Precision CNC-Machined Impact Pendulum: Designed in a single-piece structure for exceptional rigidity and zero vibration, ensuring the highest accuracy in every test.
  • Easy Installation: A lock-nut fixing mechanism allows for quick and secure setup.
  • Integrated Calibration Points: Built-in weighing and measurement points simplify the calibration process, enhancing accuracy and reliability.

2. Unparalleled Safety & Efficiency

  • Multi-Layered Safety Protection: Equipped with a protective door, access control switches, and a braking system, ensuring operator safety during testing.
  • Touchscreen Interface: Intuitive, high-resolution touchscreen control and display for effortless operation and real-time data visualization.

3. High-Precision Data Acquisition & Intelligent Analysis

  • Advanced Data Acquisition Processor: This system ensures exceptional measurement stability and accuracy.
  • Real-Time Impact Angle Display & Automatic Energy Calculation: The system instantly calculates impact energy and strength while correcting for friction energy loss and measuring the pendulum's oscillation period.
  • USB Data Transfer: Seamlessly export test results to a PC for further analysis and reporting.

4. Smart Connectivity & Scalable Functionality

  • Compatible with Smart Dimension Measuring Devices: Enables automatic collection and batch processing of specimen information, improving workflow efficiency.
  • Dual Control Options: Operate the system via PC or touchscreen with Remote Data Sharing (RDS) capability for enhanced usability.

Charpy Izod Pendulum Impact Tester for Plastics - QualiGIT™-Galaxy Series Technical Specifications

NameCharpy impact testerIzod impact tester
ModelQualiGIT™-C5JQualiGIT™-C50JQualiGIT™-I5.5JQualiGIT™-I22J
StandardISO 179ISO 179ISO180
ASTM D256		ISO180
ASTM D256
Impact energy (J)0.5, 1, 2, 4, 57.5, 15, 25, 501, 2.75, 5.511, 22 (Optional 5.5J)
Impact speed (m/s)2.93.83.53.5
DisplayTouch Screen
Starting angle150°
Support span62 mm62 mm——
Accuracy±0.1%
Energy loss0.5%—4%0.5%0.5%—2%0.5%
Distance between shaft and center of specimen230 mm395mm335 mm335mm
Included angle of striking edge(30±1) °(30±1) °——
Corner radius of viceR(1.0±0.1)mmR(1.0±0.1)mm——
Corner radius of striking edge(2.0±0.5) mm(2.0±0.5) mmR (0.8±0.2) mmR (0.8±0.2) mm
Voltage220 × (1±10%)VAC 50Hz 0.1kVA (110V is also available)
Single phase three wire
