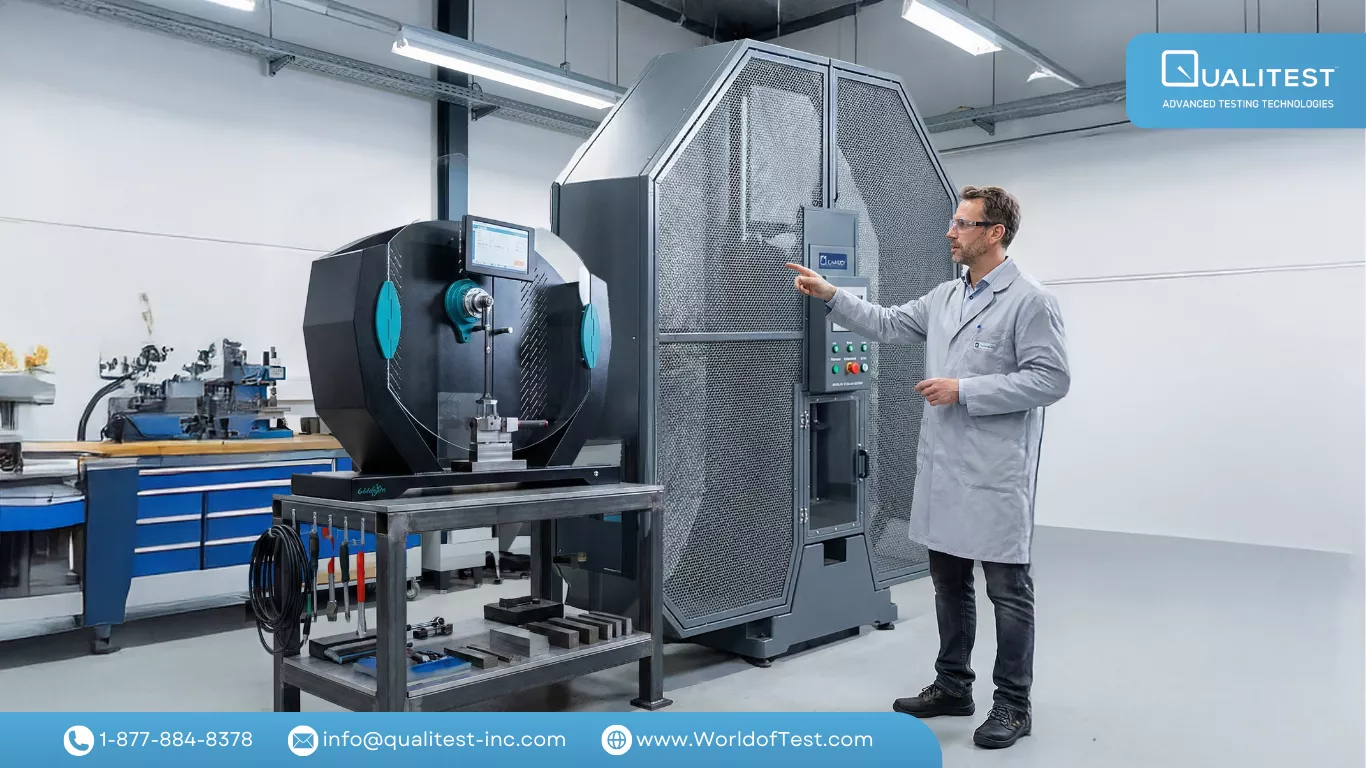

When you are testing the breaking point of heavy-duty steel or high-stress polymers, accuracy is the only thing that matters. The Charpy test remains the undisputed standard for measuring energy absorption, but it forces a tough decision for QA managers: the analog vs. digital charpy impact tester debate.
At Qualitest, we see this hesitation constantly. Do you stick with the time-tested mechanical setup, or do you authorize the budget for an advanced digital system? Both machines use a swinging arm to break a specimen (physics is physics, after all) but the experience of using them is night and day.
We are going to break down the specific differences, and share our candid perspective, to help you determine which instrument actually makes sense for your daily workload.
Key Takeaways
- Analog is best for budgets and durability: Mechanical testers like the Quali-Impact M-Series are cost-effective and rugged enough to survive harsh environments or educational settings where advanced data is not required.
- Digital ensures data integrity: By using high-resolution encoders, digital testers eliminate human reading errors and allow for instant data export to LIMS, which is crucial for strict quality audits.
- Motorization improves safety: Most digital models feature motorized pendulum returns. This significantly reduces operator fatigue and injury risk compared to manually resetting heavy pendulums on analog units.
- Volume dictates the choice: Labs doing occasional spot checks will find analog sufficient, whereas high-throughput manufacturers need the speed and automation of digital systems like the Quali-Impact Digital Series.
- Sample preparation matters most: Whether you choose analog or digital, valid results depend on precise specimen notches. A dedicated notch projector is essential for maintaining accuracy.
The Analog Charpy Impact Tester: The Enduring Standard
We are going to call it what it is: the analog tester is the reliable veteran of the testing floor. Technically speaking, an Analog Charpy Impact Tester is a traditional mechanical device used to measure the impact toughness of materials by recording the energy absorbed during fracture, typically using a pendulum and a dial or scale for reading results manually.
A perfect example of this is our Quali-Impact M-Series for metals, which strips away the digital extras to focus purely on mechanical compliance.
The Strong Points:
- Budget-Friendly: These units come with a price tag that is far easier to get approved. We often point educational institutions or smaller workshops toward the M-Series because it delivers the necessary data without draining the capital equipment budget.
- Mechanically Simple: Since there are minimal electronic components involved, the machine is essentially a sturdy assembly of metal and gears. In our experience, these units are incredibly tough and can tolerate dusty, non-climate-controlled shop floors without any complaints.
The Pain Points:
- Visual Interpretation Errors: You have to stand there and visually check where the needle stopped. We have seen plenty of inconsistencies arise because two different operators looked at the dial from slightly different angles. It is a genuine frustration for those managing strict audit trails.
- Manual Data Entry: You are required to write everything down and perform the calculations yourself. It is frankly a bit tedious and slows the entire testing process to a crawl.
Our View: We appreciate the straightforward nature of these mechanical systems. For example, if you run a small heat-treating shop that only needs to break five samples a week to satisfy a basic contract, the Quali-Impact M-Series is perfect. It is best suited for "pass/fail" spot checks rather than environments requiring pages of detailed statistical analysis.
The Digital Charpy Impact Tester: The Technological Step Forward
When you compare the analog vs. digital Charpy impact tester side by side, the digital version is like upgrading from a typewriter to a word processor.
A Digital Charpy Impact Tester enhances the traditional setup by integrating sensors such as optical encoders and digital data acquisition systems. This allows the machine to automatically record, display, and analyze impact energy and pendulum motion in real time, improving accuracy and data consistency (Kohne & Spiegel, 1994; Zheng et al., 2012).
Sophisticated units like our Quali-Impact Digital Series (for metals) or the QualiHIT and QualiGIT-Galaxy Series (for plastics) exemplify this shift.
The Strong Points:
- Undeniable Precision: The digital encoders track the swing angle with exceptional accuracy and calculate the Joules automatically. There is no guessing and no squinting at a dial.
- Advanced Data capabilities: Beyond just simple energy absorption, digital testers provide automated data collection and real-time graphical displays (Zheng et al., 2012). They offer more precise and detailed information, including velocity and kinetic energy curves, which can be useful for advanced material characterization (Kohne & Spiegel, 1994).
- Instant Connectivity: You can usually connect these systems straight to a PC or your Laboratory Information Management System (LIMS). We see this as a massive advantage for busy labs that need to generate a polished report the moment the test concludes.
The Pain Points:
- The Price Tag: We have to be realistic; these units cost significantly more. If your department is fighting for every dollar of the budget, getting a digital system approved by the finance team is going to be a harder battle.
- Electronic Sensitivity: Digital testers may require more careful handling of electronic components and software updates. While the mechanical frames are tough, screens and sensors do not like abuse. If your lab is incredibly dirty or has unstable power, you need to treat this machine with a bit more care than the analog tank.
Our View: To be direct, eliminating the "human factor" from reading results is the most significant advantage here. Research indicates that digital testers reduce human error and increase efficiency in testing (Zheng et al., 2012).
Picture an aerospace supplier who has to upload test results to a secure server instantly for a client in another country. That is where the Quali-Impact Digital Series shines. The confidence you get from knowing your data is pristine is usually worth the additional investment.
The Comparison: At a Glance
| Feature | Analog Charpy Tester | Digital Charpy Tester |
|---|
| Result Display | Mechanical Dial (Needle) | Touchscreen / PC Software |
| Accuracy | Subject to visual interpretation | High resolution (via Sensors) |
| Data Handling | Requires manual recording | Automatic storage & exporting |
| Pendulum Return | Manual (Operator cranks/lifts) | Motorized (Automatic Return) |
| Testing Volume | Slower pace | Continuous / High throughput |
| Initial Cost | More affordable | Higher investment |
Real-World Scenarios: Who Buys What?
Sometimes it helps to see where these machines actually live. Here are a few common situations we encounter to help you figure out where you fit in:
The University Lab (The Analog Fit)
An engineering professor needs to demonstrate the concept of fracture mechanics to students. They run the machine once a semester. In this case, the Quali-Impact M-Series is ideal. It is visual, mechanical, and fits the limited grant money perfectly.
The Pipe Manufacturer (The Digital Fit)
A factory is producing miles of steel pipeline for the oil and gas industry. They have to test coupons from every batch, every single shift, and the results need to be stored for 20 years for legal reasons. For them, the Quali-Impact Digital Series (specifically the 450J model) is the only logical choice. The speed and automatic data archiving save them hours of administrative work every week.
The Commercial Testing House (The Digital Fit)
This lab tests everything from car bumpers to bicycle frames for fifty different clients. Speed is revenue for them. They cannot waste time manually cranking a pendulum. A universal motorized unit like the QualiHIT Series allows them to test hundreds of plastic samples a day and email the PDF reports instantly.
The Metal Recycling Yard (The Analog Fit)
The environment here is rough. There is dust, temperature swings, and vibration from heavy machinery everywhere. They just need to verify that a batch of scrap metal is not too brittle before shipping it out. They do not need a USB port; they need a tank. The analog model survives here where sensitive electronics might struggle.
The Polymer R&D Center (The Digital Fit)
A team of scientists is formulating a new impact-resistant plastic for smartphones. They are looking for tiny improvements in toughness. A needle on a dial is not precise enough to show a 0.5 Joule difference, but the QualiGIT-Galaxy Series with its high-resolution encoder is designed exactly for this level of detail.
The Operational Reality: Safety and Maintenance
Here is something people often forget to mention in the analog vs. digital charpy impact tester conversation: the long-term impact on your team and your maintenance budget.
Safety and Fatigue: The Manual Problem
With most analog models, the operator has to physically crank or lift the heavy pendulum back to the starting position after every single break. Imagine a technician having to hoist a 30kg pendulum weight back up to shoulder height fifty times a shift.
We are telling you right now, if you are using a high-energy tester (like the massive 300J or 450J units for metals), your operators are going to be exhausted and sore by lunchtime. Plus, handling heavy weights manually always carries a slight safety risk.
The Motorized Advantage
Most digital systems, including our Quali-Impact Digital Series and QPI-D Series for plastics, are paired with a motor that retracts the pendulum for you. The moment the sample breaks, the machine applies the brakes and resets itself.
This is not just about saving muscle; it effectively cuts the cycle time in half. Instead of waiting for the pendulum to stop swinging or trying to catch it (which is risky), the system grabs it and returns it to the precise starting angle immediately. Your operators can move straight to the next sample without breaking their rhythm, which means you get significantly more data on the board in less time.
Maintenance: Counting the Cost
When you are looking at the quote, do not forget about the long-term picture.
Analog machines are purely mechanical. Your maintenance focus is mostly on bearing friction and ensuring the pointer mechanism isn't bent. They are durable, but if that dial gets knocked out of alignment, getting it back to zero can be a difficult task.
Digital machines are smarter. They feature self-diagnostic tools that alert you if the calibration is drifting. While digital testers may require more careful handling of electronic components and software updates, analog testers involve more mechanical upkeep (Kohne & Spiegel, 1994).
Even though digital units cost more upfront, we believe the time you save by avoiding re-tests due to calculation errors pays for itself rather quickly.
Ensuring Valid Results: Compliance and Preparation
Before you make a final choice, you must ensure the equipment actually follows the rules and that your specimens are up to the task.
The Regulations: Compliance is Key
At Qualitest, we ensure our equipment aligns with the major international standards:
- For Metals (Quali-Impact Series): ASTM E23, ISO 148, and EN 10045.
- For Plastics (QualiHIT / QualiGIT): ASTM D6110, ISO 179, and ISO 180.
It does not matter if you choose the dial or the screen because the physics behind our pendulums are strictly engineered to meet these specifications, ensuring your validation process remains secure (Kohne & Spiegel, 1994; Zheng et al., 2012).
The Critical Step: Specimen Preparation
We are going to be blunt: you can purchase the most expensive tester on the market, but if your sample is inconsistent, your data will be useless. We have seen too many labs spend a significant amount on a tester and then feed it poorly prepared samples. The geometry of the notch (V-notch or U-notch) changes the outcome entirely.
You absolutely need a high-quality optical check, such as our Q50X Series Charpy Impact Specimen Notch Projector. It is the only reliable way to verify that your notches are geometrically perfect before you destroy the sample.
Partner with Qualitest for Your Testing Needs
At Qualitest, we know that every laboratory operates differently. We are not just here to sell you a machine and disappear; we want to provide the solution that fits your specific challenges and your budget.
Whether you need the heavy-duty equipment for the steel industry with our Charpy Impact Testers for Metals (ranging from the manual M-Series to the fully automated Digital Series), or you need the versatile gear for polymers with our Charpy / Izod Pendulum Impact Tester for Plastics like the QualiHIT, we have the right option for you.
We have the cost-effective analog units for simple compliance checks and the advanced digital, motorized systems for labs that require constant throughput.
Ready to stop guessing and start testing with confidence? Explore our full range of impact testing solutions today and let our team help you find the exact setup required for your standards.
References
- Kohne, G., & Spiegel, F. (1994). An automated digital data collection and analysis system for the Charpy Impact Tester.
- Zheng, Y., Wang, J., Ye, Y., Jiao, J., Wang, G., Deng, Y., Qin, S., & Peng, Z. (2012). Design of a Digitalized Testing System for Simple Beam Charpy Impact Testing Machine. Advanced Materials Research, 430-432, 1536 - 1541.
