Charpy Izod Universal Impact Tester for Plastics – QualiHIT

Charpy Izod Universal Impact Tester for Plastics – QualiHIT™

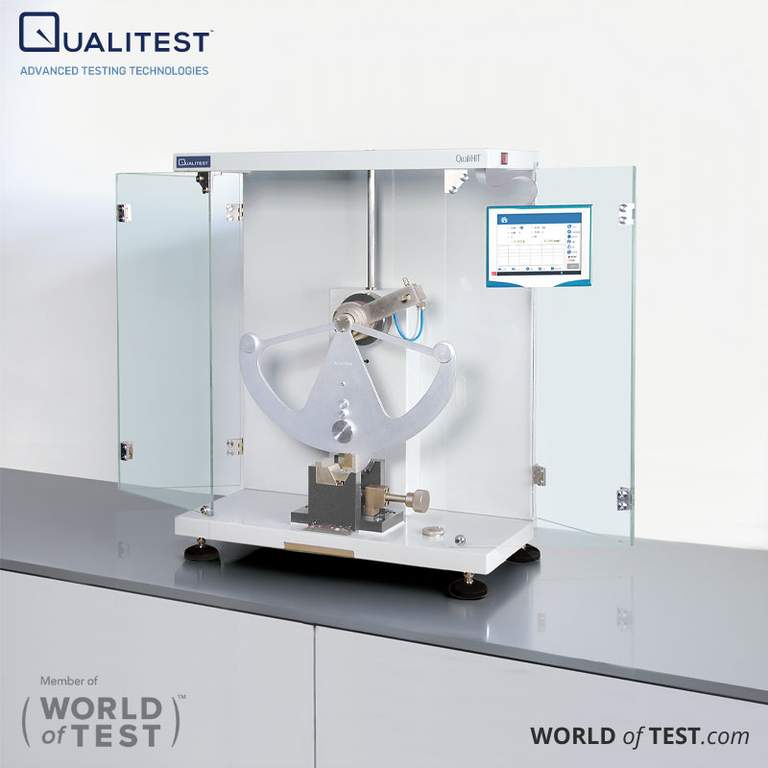

Charpy Izod Universal Impact Tester for Plastics – QualiHIT™ is a high-performance series designed for accurate measurement of absorbed impact energy and break resistance in plastic specimens.

Charpy Izod Universal Impact Tester for Plastics – QualiHIT
Charpy Izod Universal Impact Tester for Plastics – QualiHITCharpy Izod Universal Impact Tester for Plastics – QualiHITCharpy Izod Universal Impact Tester for Plastics – QualiHITCharpy Izod Universal Impact Tester for Plastics – QualiHIT

Impact Testing System

The HIT series impact tester features a smart dimension measuring device. It directly exports width, thickness, and residual thickness data to the touchscreen. Test results are calculated automatically for greater efficiency.

Charpy Izod Universal Impact Tester for Plastics – QualiHIT™ Features

  • Versatile design supports both Izod and Charpy tests.
  • Unique vice and pendulum system allow seamless switching between Charpy and Izod tests without adjusting instrument geometry.
  • Generates impact speeds of 2.9 m/s & 3.5 m/s (or 3.8 m/s & 3.5 m/s) with a single pendulum, offering multiple energy levels.
  • High-mass pendulum design focuses energy at the impact point, minimizing loss from vibration.
  • Integrated high-resolution encoder ensures precise impact angle measurement.
  • Touchscreen control enables quick parameter input, with interactive software for sample status input (complete, partial hinge break, or unbroken).
  • Connects to a PC via RS232 for direct data acquisition; results can be saved or exported using the included software.
  • Automatically adjusts for energy loss caused by air resistance and mechanical friction.
  • Multiple safety features enhance operator protection.
  • Equipped with a braking system and notch-centering device for easy operation.

Charpy Izod Universal Impact Tester for Plastics – QualiHIT™ Technical Specifications

ParametersQualiHIT™ 5QualiHIT™ 50
Impact speed3.5m/s, 2.9m/s3.5m/s, 3.8m/s
Energy levelsFor Izod: 1J, 2.75J, 5.5JFor Izod: 5.5J, 11J, 22J
For Charpy: 0.5J, 1J, 2J, 4J, 5JFor Charpy: 7.5J, 15J, 25J, 50J
Measurement resolution0.01J
Span of Charpy62mm
Radius of striking edge (Charpy)2mm±0.5mm
Angle of striking edge (Charpy)30°±1°
Radius of striking edge (Izod)R=0.8mm±0.2mm
Location of striking edge above top surface of support (Izod)22mm±0.05mm
