Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000

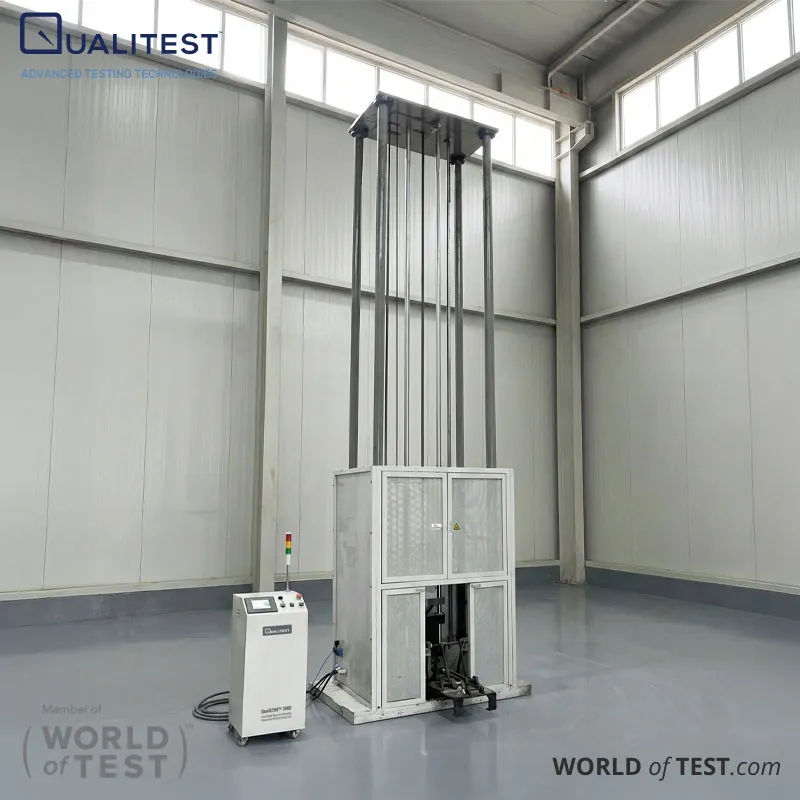

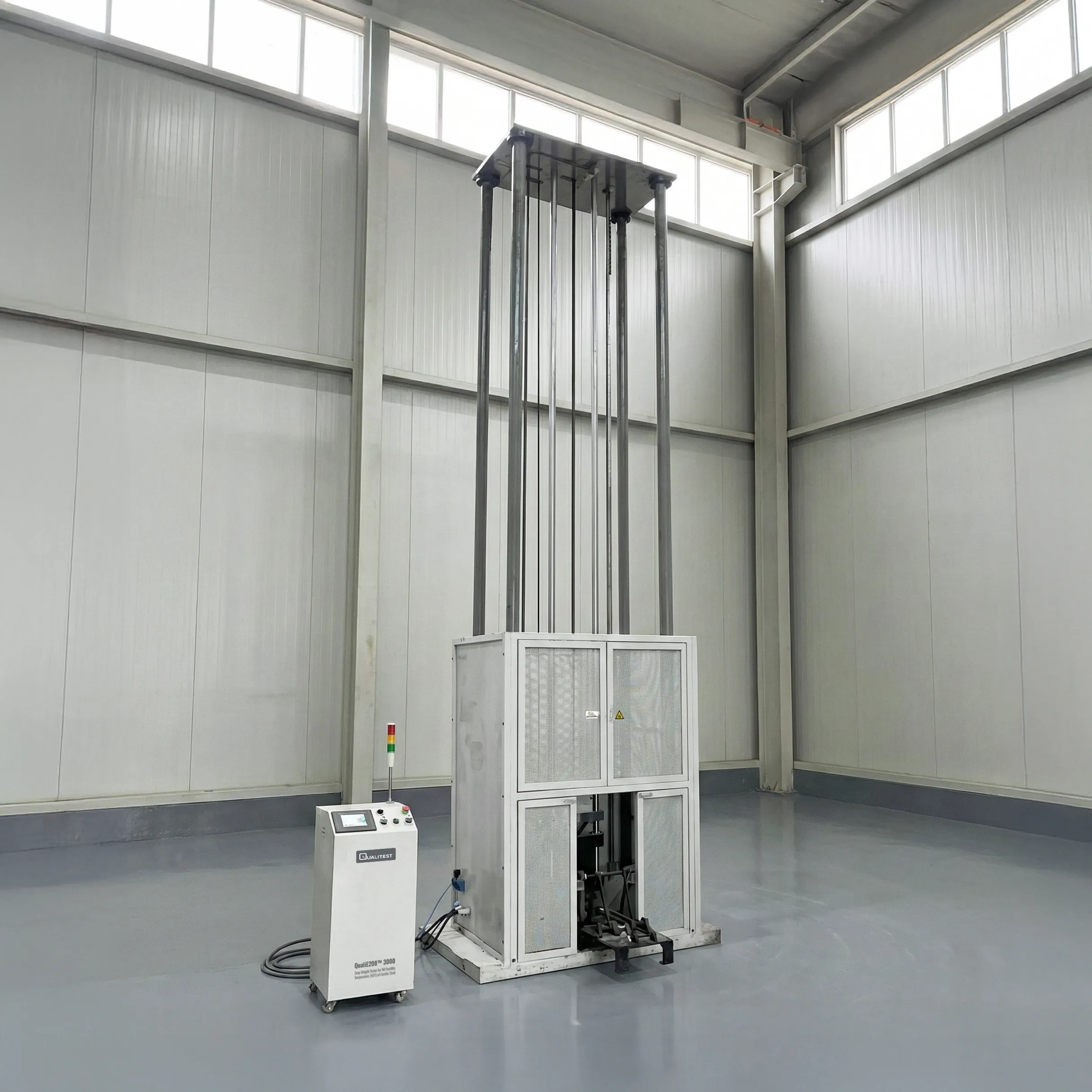

QualiE208™-3000 Drop Weight Tester is a fully automated Drop Weight Tester designed to determine the Nil-Ductility Temperature (NDT) of ferritic steels under dynamic loading. The system raises a calibrated hammer to a defined height and releases it from a static condition to impact a standard specimen.

The test result identifies the highest temperature at which brittle fracture occurs under the prescribed method, supporting material qualification for crack-sensitive service conditions.

Built for consistent, repeatable NDT workflows, the tester automates hammer lifting, specimen feeding/recovery, and “specimen-in-place” confirmation prior to impact. After each strike, the machine returns the impacted specimen and resets for the next test cycle—helping improve lab throughput and operator safety.

Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000 Applications

This Drop Weight Tester supports Nil-Ductility Temperature testing for ferritic steel products including plate, sections, cast steel, and forged steel. Common use environments include:

  • Shipbuilding and marine fabrication labs
  • Pressure vessel and critical fabrication QA/QC
  • Bridge and structural steel evaluation
  • Ocean engineering and offshore projects
  • Steel research institutes and materials R&D centers
Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000

Test Standards:

  • ASTM E208: A standardized test method that determines the Nil-Ductility Transition (NDT) temperature of ferritic steels by evaluating brittle fracture behavior using a drop weight impact test under controlled conditions.
  • GB/T 6803-2008: The Chinese national standard equivalent to ASTM E208 that specifies the procedure and acceptance criteria for determining the Nil-Ductility Temperature (NDT) of ferritic steels using the drop weight testing method.
Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000

Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000 Key Features

  • Automated NDT test cycle: automatic hammer lifting, automatic specimen feeding, and automatic specimen recovery after impact
  • Pre-impact safety logic: self-check confirmation that the specimen is properly positioned before impact
  • 7-inch full touchscreen HMI with manual/automatic modes for straightforward operation
  • PLC-based control (Panasonic) for reliable automation, measurement, and anti-interference performance
  • Digital height + real-time energy display with preset lift-height programming for consistent impact conditions

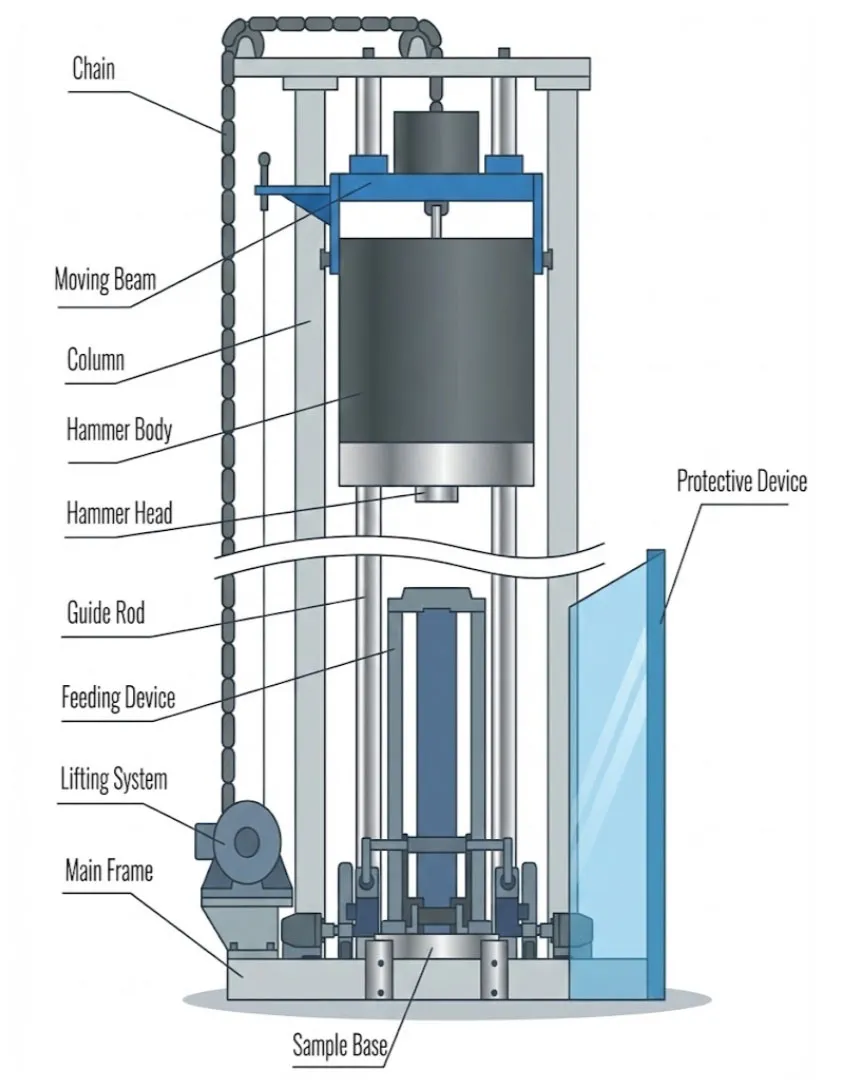

  • Chain-and-sprocket lifting architecture with braked, self-locking drive to support stable lifting and positioning accuracy
  • Electric action interlock + protective guarding to improve operator protection during testing
  • Durable specimen anvil manufactured from high-quality structural steel for wear resistance
Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000

Drop Weight Tester for Nil-Ductility Temperature (NDT) of Ferritic Steel – QualiE208™ 3000 Technical Specifications

ParameterSpecification
Maximum impact energy3000 J
Minimum impact energy280 J
Maximum impact height2000 mm
Hammer weight136 kg (optional input);
55 kg basic hammer
Mass (quality) error±0.3%
Hammer lifting speed3 m/min
Lifting height error≤±1%
Height measurement resolution0.1 mm
Alignment deviation (hammer blade / specimen / support center)±1 mm
Specimen sizes (L × W × T), mmP1: (360±1) × (90±2) × (25±2.5)
P2: (130±1) × (50±2) × (20±1)
P3: (130±1) × (50±2) × (16±0.5)
P4: (130±1) × (50±2) × (12±0.5)
P5: (360±1) × (90±2) × (38±4)
P6: (360±1) × (90±2) × (50±4)
Overall machine dimensions (L × W × H)1300 × 900 × 4300 mm
