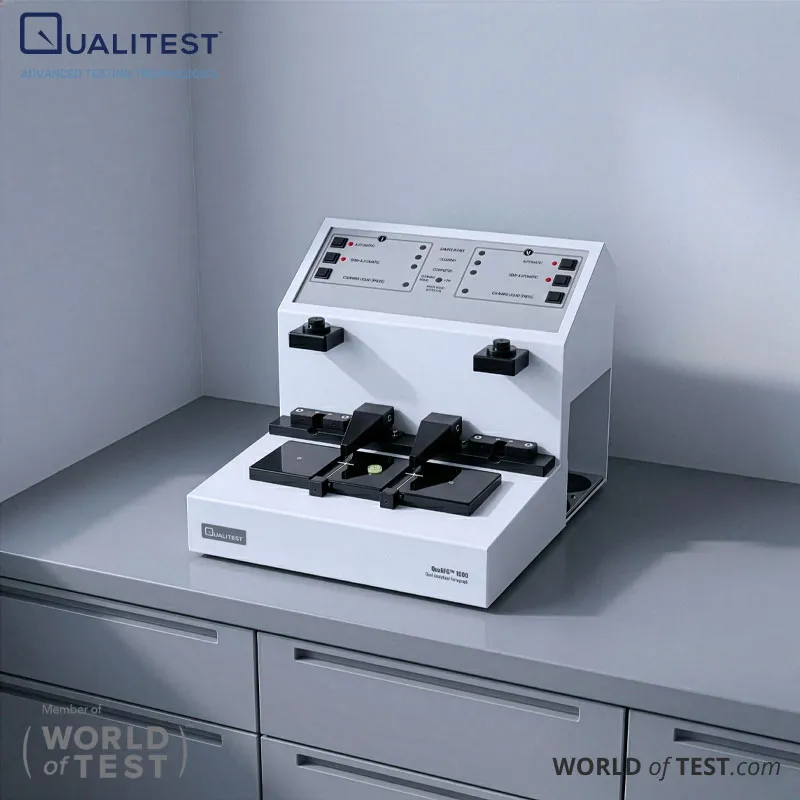

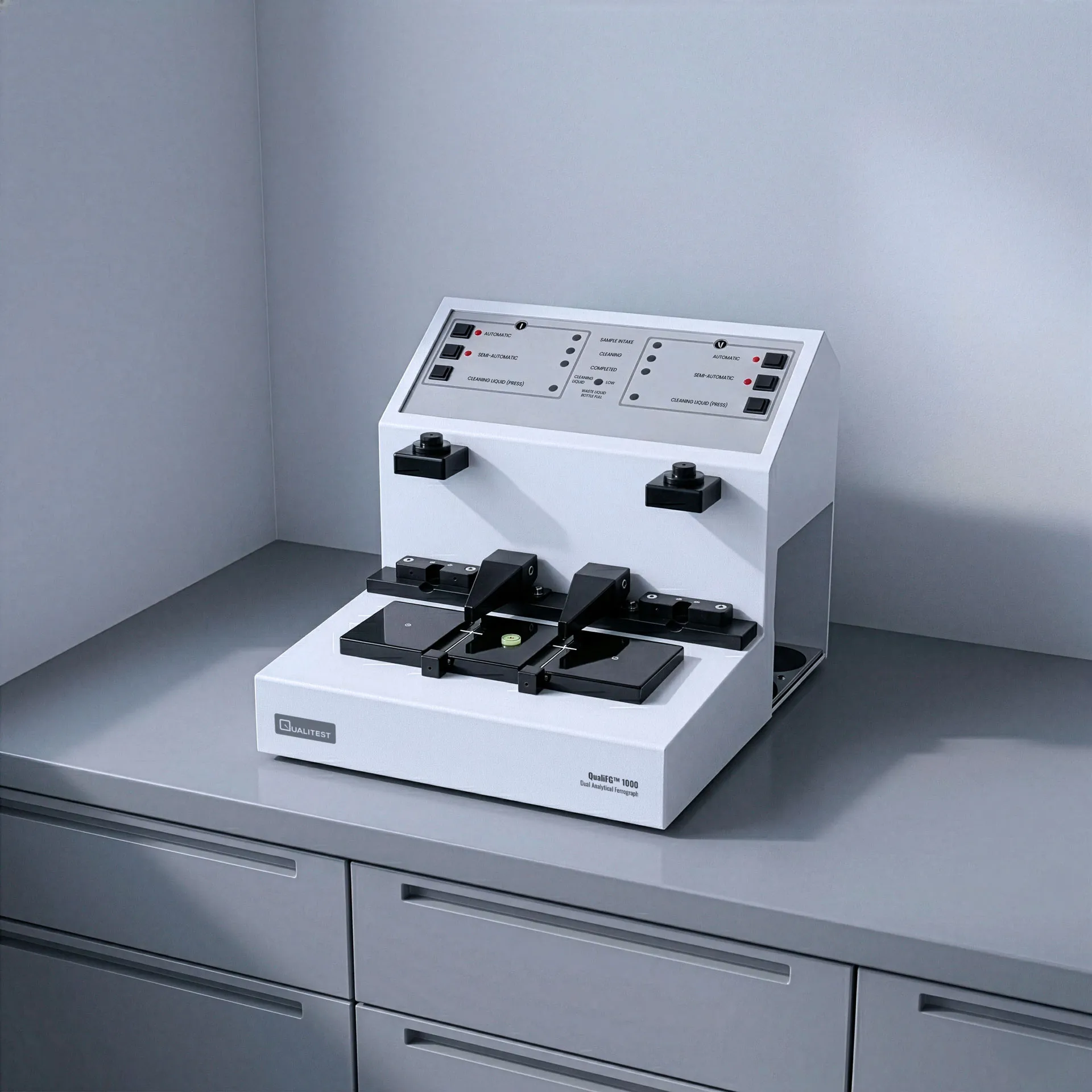

Dual Analytical Ferrograph

Dual Analytical Ferrograph – QualiFG™ 1000 Key Features

• Dual independent preparation channels: QualiFG™ 1000 prepares two ferrograms at the same time using two separate circuits. This improves throughput for routine oil analysis labs and helps when paired samples or repeat samples need to be processed side by side.
• Flexible operating modes: The system supports automatic, semi-automatic, and manual ferrogram preparation. That gives the operator flexibility to match the preparation method to lab workflow, sample load, and diagnostic preference.
• High magnetic field performance: the instrument is specified with a maximum magnetic flux density of about 1.8 T and a maximum magnetic field gradient greater than 0.5 T/mm. These values support stable particle separation and patterned deposition on the ferrogram substrate.
• Adjustable sample transport flow: oil transport flow is adjustable from 10 to 30 mL/h, which helps improve deposition consistency and repeatability between runs. The supplier also highlights adjustable control of sample flow to keep spectral deposition more uniform.
• Fast preparation cycle: two spectra can be produced in less than 20 minutes under stated conditions. This is useful for labs that need analytical ferrography without slowing routine oil analysis workflow.
• Transparent ferrogram for easier diagnosis: the transparent ferrogram helps differentiate metallic, organic, and non-metallic debris more easily during examination. This can improve visual interpretation and make particle classification faster during microscopy.
• Particle arrangement that supports interpretation: particles are deposited according to their magnetization characteristics and size. This helps analysts interpret wear severity and probable wear source more quickly when reviewing the ferrogram.
• Microscope compatibility: The system is included with matching microscope parameters including an infinite optical system, wide-field eyepiece, multiple objectives, and reflected or transmitted illumination options. This supports detailed microscopic review after ferrogram preparation.
• Pneumatic transport method: QualiFG™ 1000 uses pneumatic transport for oil sample movement, helping maintain controlled delivery through the preparation path.
