Electronic Drop Dart Impact Tester

Electronic Drop Dart Impact Tester
Parent Product
Drop Dart Impact Tester
Standards
ASTM D1709

Enhance your film and sheet quality with the advanced features of the Drop Dart Impact Tester DX-8300 series from Qualitest North America. This comprehensive solution is designed for precise impact resistance measurements on various materials.

Explore the full potential of the DX-8300 series to optimize your production, research, and quality control processes. With a focus on accuracy, safety, and versatility, this impact tester is an indispensable tool for improving your film and sheet products.

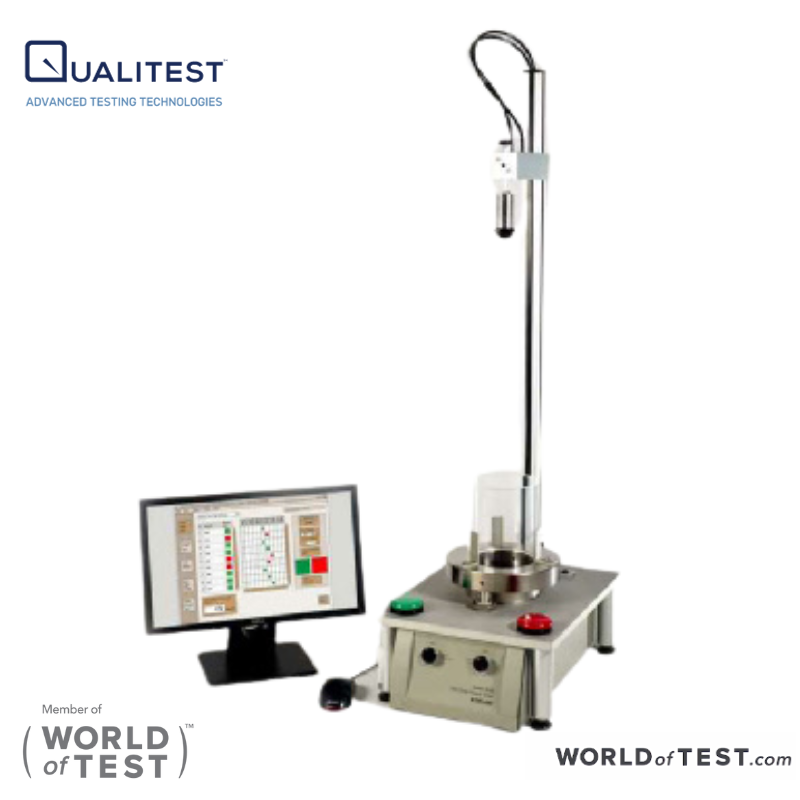

Introducing the Drop Dart Impact Tester DX-8300 Series Overview

Elevate your film and sheet quality with Qualitest North America's Drop Dart Impact Tester DX-8300 series, a comprehensive solution for measuring impact resistance. Whether you prefer a stand-alone instrumented tester or a software-driven system, this user-friendly device ensures precise evaluations of film, sheet, and laminated materials.

Drop Dart Impact Tester DX-8300 Series

Enhance Film and Sheet Quality for Increased Profit Margins

The DX-8300 Series Dart Impact Tester is a proven tool that enables meticulous control over nominal and peak strength characteristics, expediting your:

  • Production and adjustments for additives
  • Research and development of new film and sheet products
  • Inspection of incoming film and sheet materials
  • In-process checks to guarantee on-spec products for converting operations



Drop Dart Impact Tester Features and Advantage:

Compliant with ASTM standards, specifically ASTM D1709 Methods A & B Standard Test Method for Free Falling Dart Impact Testing of Plastic Film, the DX-8300 Series Dart Impact Tester comes with advanced technical features in each model:

  • Full electronic operation with advanced safety features
  • Software and PC connectivity for seamless integration
  • Industry-leading software - Qualitest North America's DX-8300 Dart Drop Software automates Pass-Fail testing and Staircase testing to meet ASTM D1709 testing requirements

Effortless Pneumatic-Assisted Operation

Experience easy pneumatic-assisted operation for dart release and film/sheet sample clamping. This method ensures higher clamping forces without the need for large, inefficient electromagnetic releases.

Expandable and Flexible Operation for Method A & B Testing

Portable and expandable, the DX-8300 Series offers models for Method A testing or a combination of Method A & B testing. Custom dart stems and weights, as well as extensions, are available to cater to your in-house testing requirements.

Affordable Excellence

The DX-8300 Series stands out for its economical pricing, offering a complete package with everything required to conduct tests efficiently. Elevate your testing standards with the Drop Dart Impact Tester DX-8300 Series from Qualitest North America.

 Drop Dart Impact Tester DX-8300 Series Specifications:

SpecificationsModel DX-8385-AModel DX-8385-AB
Mode of OperationOff-line testing/lab useOff-line testing/lab use
MaterialsAll sheet materialsAll sheet materials
Test MethodDrop Method AMethods A & B
Height26 inch (66 cm)26-inch (66 cm) and 60-inch (152 cm)
Actuation MethodElectronicElectronic
Dart Release MechanismPneumaticPneumatic
Sample Clamp MechanismPneumaticPneumatic
Dart Sets Included

Method A:
(412 gram)

  • (2) 120 gr.
  • (1) 60 gr.
  • (1) 30 gr.
  • (2) 15 gr.
  • (2) 5 gr.

Method A:
(412 gram)

  • (2) 120 gr.
  • (1) 60 gr.
  • (1) 30 gr.
  • (2) 15 gr.
  • (2) 5 gr.

Method B:
(1310 gram)

  • (2) 320 gr.
  • (1) 160 gr.
  • (1) 80 gr.
  • (2) 40 gr.
  • (2) 15 gr.
Optional Weights ASTM D1709 Suggested

Method A:

  • (8) 60 gr.
  • (8) 30 gr.
  • (8) 15 gr.
  • (2) 5 gr.

Method A:

  • (8) 60 gr.
  • (8) 30 gr.
  • (8) 15 gr.
  • (2) 5 gr.

Method B:

  • (8) 90 gr.
  • (8) 45 gr.
  • (2) 15 gr.
Dart Head Material ProvidedPhenolicPhenolic (Method A)
Stainless Steel (Method B)
Optional Dart Head MaterialsAluminumAluminum
Stainless Steel
Accessories
  • Model DX-8300 Dart Drop Software
  • Model DX-8300 Pass/Fail Interface System
  • Optional Two-Button, Safety Actuated, Electronic Sample Clamp, Side Mounted
  • Electronic Footswitch Actuator Option for Sample Clamp
  • Electronic Footswitch Actuator Option for Dart Release
Air Requirements60 psi Dry & Filtered
Power Requirements115 VAC or 230 VAC
Overall Height48 inch80 inch
Weight55 lb65 lb
(Due to continuous product improvement, all specifications are subject to change without notice.)
