The Physics of Multiaxial Testing: Why Drop Dart Beats Single-Axis Methods

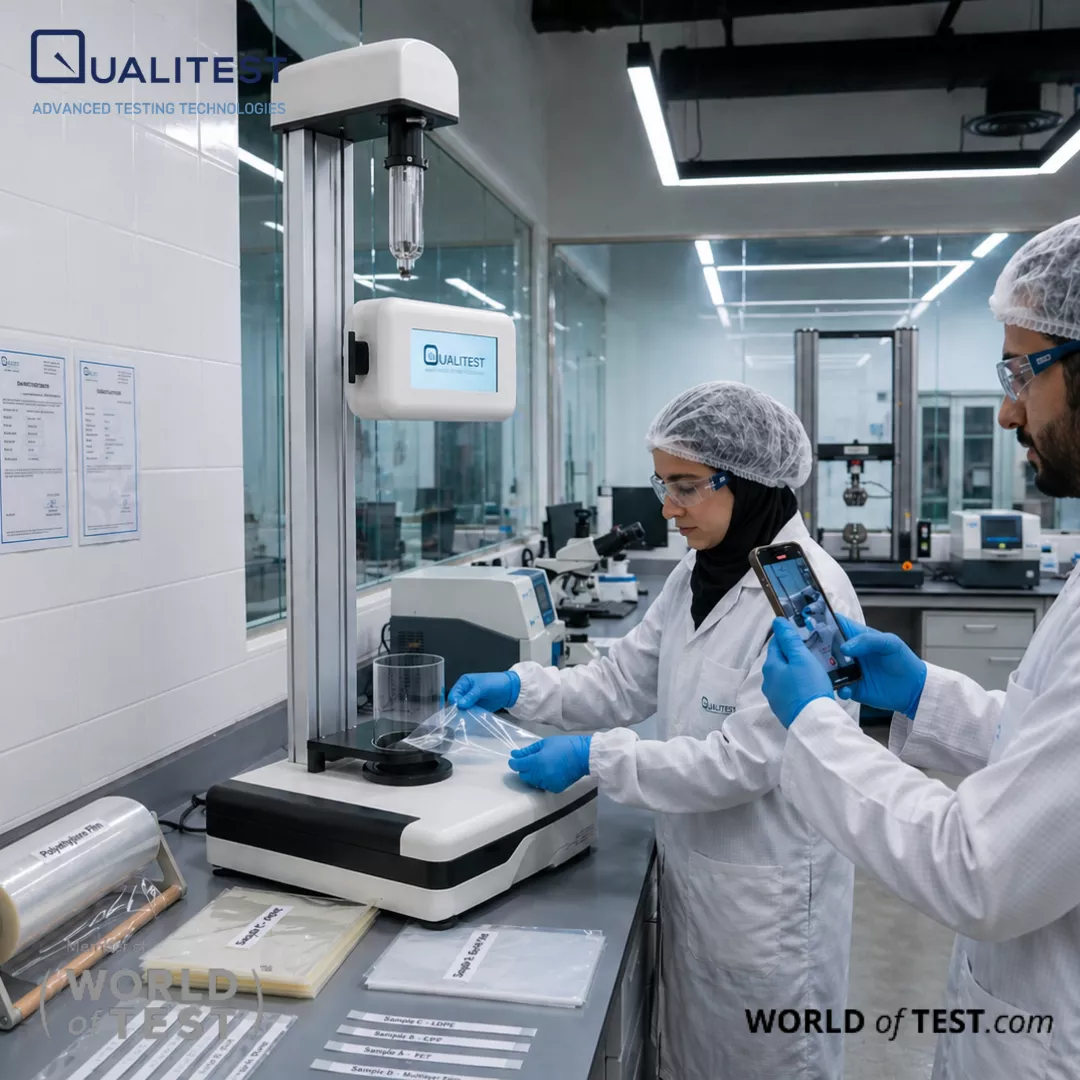

Standard pendulum tests completely hide your real weak spots because they ignore multidirectional stress. That is why the theory behind a Drop Dart Impact Tester is so critical: a perfectly rounded, heavy steel nose cone plummets onto a clamped film, stretching the polymer in a massive, circular wave of tension.
This circular tension instantly exposes those hidden stress concentration points that simple unidirectional chops completely miss. Get these flawless results today with our automated QT-FDIT or manual DX-8165A/AB models.
The Staircase Method: Determining the Fifty-Percent Failure Threshold
Now, you might assume you just drop a heavy weight, watch to see if the plastic splits, and call it a day. Absolutely not! The strict, globally accepted recipe books known as ASTM D1709, ISO 7765-1, and JIS K7124 use a highly satisfying, back-and-forth routine to pinpoint the exact, highly specific amount of heavy metal weight that will split precisely half of your batch.
We call this the staircase dance, and our fully integrated Electronic Drop Dart Tester DX-8300 Series makes it satisfyingly simple:
- Initial Weight Estimation: You kick things off with a highly educated guess (just a little weight to test the material threshold).
- Specimen Survival: If the plastic wrap survives the plummet without a single tear, you slide a heavier metal weight onto the nose cone for the next run.
- Specimen Failure: But if it bursts apart into a sad pile of scrap, you lighten the load.
- Iterative Testing: You keep playing this high-stakes game of hot-and-cold until you have a giant pile of both proud survivors and torn casualties.
From there, computer setups like our built-in DX-8300 Dart Drop Software run the handy-dandy statistical crunching. The statistical science is satisfyingly spot on – strong but not outrageously overpowering – the material breakdown is closely tracked all the way through, and the fifty-fifty golden ratio is sheer perfection.
Critical Variables: Preventing Variations in Your Test Data
Here’s the catch: every single little detail can completely throw off your numbers. We’re talking about:
- Material Thickness: The overall thickness of your material sheet.
- Surface Imperfections: Those tiny, hard-to-see little scrapes that disrupt the surface.
- Ambient Conditions: Whether your testing room is freezing cold or sweating hot.
- The Drop Height: How high the drop tower is set before the release.
- The Contact Area: The exact curvature of your steel nose cone.
For example, the super-famous Method A protocol demands a perfectly polished, highly rounded steel tip measuring exactly 38.1 millimeters across. If you drop that hefty 412-gram weight from exactly 26 inches for your tough ABS sheets on our Pneumatic Drop Dart Tester DX-8285A, or go up to a massive 60-inch drop height with an incredibly chunky 1310-gram dart for those stiffer samples on our DX-8285AB Method A & B combo model, you will get wildly different, totally mismatched outcomes (seriously, don't try to mix and match these!).
Even the direction the molten plastic was stretched out on the factory floor totally turns the whole game on its head. This is why keeping every single one of these factors frozen in place—using our twin air-cylinder pneumatic clamps—is the difference between incredibly reliable data and a total shipping disaster.
Advanced Testing Configurations: Measuring Total Absorbed Energy
While a standard free-falling staircase setup is absolutely fantastic for testing standard, everyday grocery store bags, sometimes you have to wheel out the heavy-duty, ultra-precise rigs to measure the absolute total energy absorbed.
If you are dealing with huge production batches, our Total Energy Dart Drop Impact Tester Series DX-8400 (DX-8485-A and DX-8585-A) serves up some insane perks:
- Single-Plunge Results: It completely conquers both ASTM D1709 and the highly intense ASTM D4272 standards in a single, perfectly monitored plunge—no separate staircase drops required.
- Integrated Laser Tracking: These incredibly fancy setups plug directly into a built-in laser velocity meter to map out every split second of crushing force and speed.
- Enormous Load Limits: The super-sized DX-8585-A model handles giant dart loads up to 4500 grams with a specialized dash-pot capture bucket to prevent dangerous secondary bounces.
It gives you a direct, deeply revealing look into the absolute limits of your packaging films.
