How the QT-FDIT Falling Dart Impact Tester Evaluates Material Failure

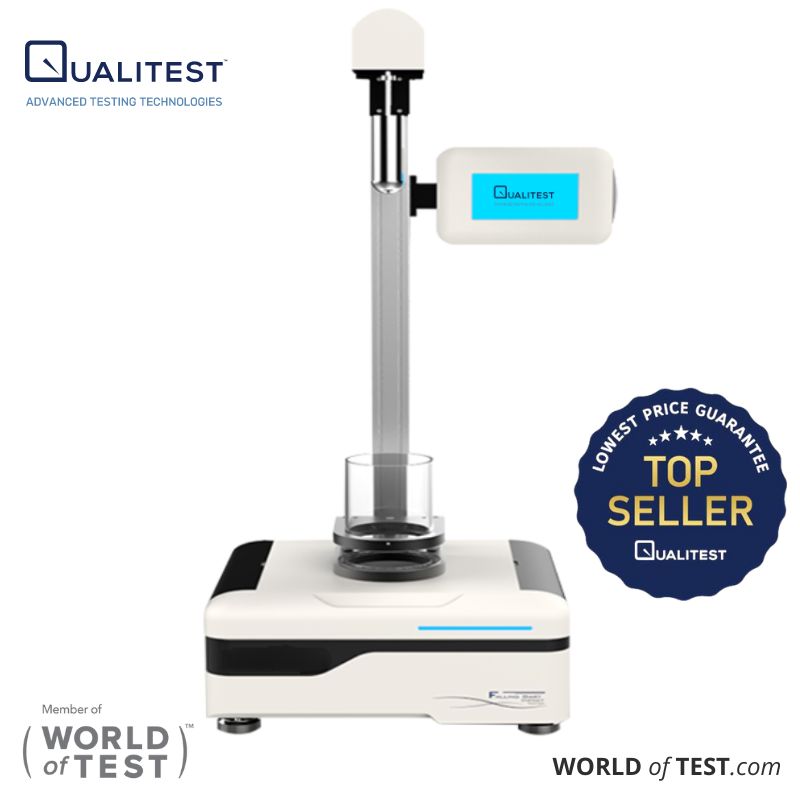

To verify if flexible packaging such as PE/PP composite film, aluminized film, or drug packaging bags can withstand real-world transport without tearing open, the QT-FDIT Falling Dart Impact Tester drops a weighted, dome-shaped metal nose-cone from a set height straight onto a clamped-down sheet. This test determines the exact weight of the plummeting dart that causes exactly half of the test sheets (under 1 mm thick) to fail under pressure, replacing guesswork with hard data.
The Standard Testing Process: The Gravity-Drop Routine
At its core, operating the QT-FDIT Falling Dart Impact Tester is a beautifully straightforward process. You lay your plastic film flat and clamp it securely around the edges so it does not shift even a fraction of a millimeter. Utilizing a built-in pneumatic clamping system, the QT-FDIT secures the sample tight to eliminate any chance of slippage. Then, you release a dart with a smooth, round dome-like head straight down onto the dead center of your sheet. There is zero risk of human error or hand-induced variance because the system uses electromagnetic suction and hanging. This highly reliable magnetic mechanism holds the dart and releases it cleanly the instant you press go on the LCD color touch screen.
You control how hard the blow is by piling extra metal weight disks onto the dart and selecting the appropriate drop mechanics. The QT-FDIT supports highly versatile testing by offering Method A (a 660 mm drop using a Φ38 mm dart head, ranging from 50 to 2000 g) and Method B (a 1500 mm drop using a Φ50 mm dart head, ranging from 300 to 2000 g). The test runs on a highly efficient up-and-down staircase routine:
- You estimate an initial mass (m) and drop the starting weight.
- If the plastic tears, you use the ∆m value to lighten the load for the next try.
- If the plastic survives without a scratch, you increase the weight by that same ∆m value.
You keep going back and forth like this. Once you have tested 20 separate specimens, the machine’s automated data analysis system automatically computes the test values to find the total number of damages (N). If N equals 10, the test is complete. This is the most efficient way to establish a statistically sound baseline of your material’s true limits without requiring any manual math.
Adhering to Global Standards (ASTM D1709 & ISO 7765-1)
To ensure your data is accepted by buyers and regulatory bodies across the globe, adhering to official protocols is essential. The QT-FDIT Falling Dart Impact Tester complies with the industry's gold standards, specifically ASTM D1709, ISO 7765-1, and JIS K7124, right down to the letter.
| Component / Step | QT-FDIT Method Description | Why It Matters for Quality Control |
|---|
| Pneumatic Specimen Grips | Squeezing the plastic tight with pneumatic clamps | Keeps the film from sliding around, giving you highly repeatable results every single time. |
| Dart Head Profile | A round, smooth dome-shaped nose-cone (Φ38 mm or Φ50 mm) | The shape of the nose changes how the plastic stretches, simulating a corner puncture during transit. |
| Drop Conditions | Specific weights dropped from exact heights (660 mm or 1500 mm) | Sets up the exact speed and energy of the smash for different types of packaging. |
| Staircase Mass Adjustment | Adding or shedding weight (∆m) after each hit | Pinpoints the breaking point fast without consuming unnecessary testing material. |
| Endpoint Determination | Calculating the weight once 10 sheets break (N=10) | The intelligent operating system automatically identifies results, delivering the standardized stamp of approval your buyers demand. |
The Physical Mechanics of Impact Testing
Essentially, this procedure measures how much sudden force your plastic sheet can absorb before it snaps, splits, or gets a hole punched through it. How that stress spreads through the material depends entirely on the nose of your dart. Standard tests use those round, dome-like heads because they do an excellent job of showing how a film reacts to being poked or dented by sharp objects.
When you are testing flexible materials like nylon films or aluminum-plastic composites, the physics models look closely at how the plastic stretches and thins out under a high-speed strike. By mapping exactly where the plastic begins to yield, thin out, and finally tear, manufacturers can optimize their material blend to prevent surface damage caused by insufficient toughness.
Crucial Variables That Impact Your Data
To obtain consistent numbers from your testing cycles, several key parameters must be carefully managed:
- Thickness and Surface Quality: If your plastic sheets have uneven thickness (especially above the recommended 1 mm limit), surface defects, or curvature, your final numbers will vary wildly.
- Velocity and Temperature: Even a minor variation in the speed of the fall can alter your results. Selecting Method A or Method B on the QT-FDIT ensures the precise drop height and velocity for your specific material.
- Slippage and Grip: If your plastic slips during the impact, the test is completely invalid. The QT-FDIT’s automated pneumatic clamps ensure the sheet is held with the exact same grip every single run, while surface contaminants like oil can throw off the friction.
- Release Mechanics: The dart must fall straight down with zero interference. The electromagnetic suction and hanging system guarantees a flawless drop, preventing human factors from compromising the sample.
Managing these variables with a highly reliable machine like the QT-FDIT guarantees your products perform consistently during transport, leaving no room for failure when it matters most.
