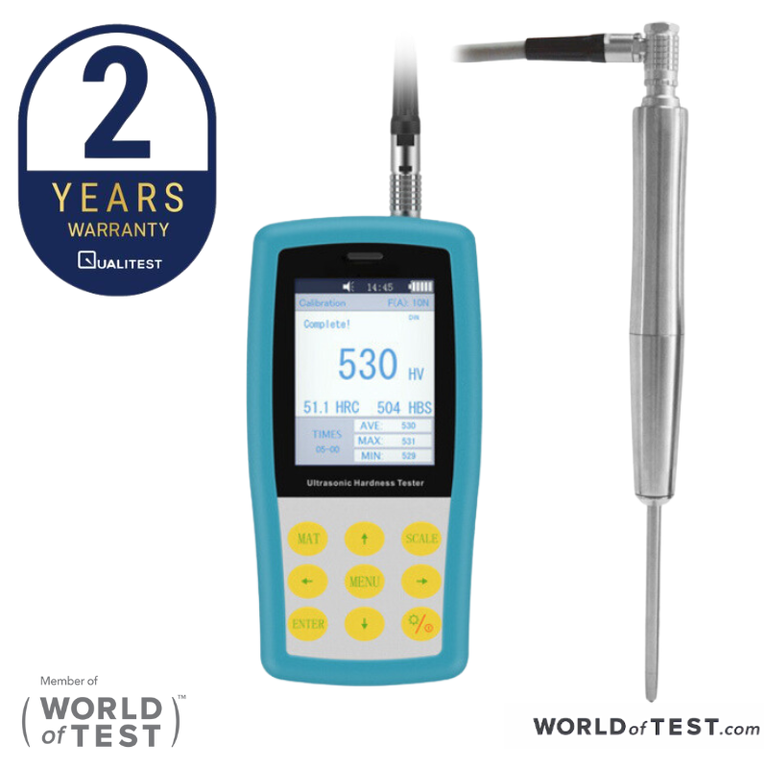

Elongated Probe Ultrasonic Hardness Tester - UCI-3300C
Parent Product
Ultrasonic Portable Hardness Tester UCI Series
Standards
ASTM A1038
DIN 50159
Download PDF Brochure
Elongated Probe Ultrasonic Hardness Tester - UCI-3300C (PDF)

Elongated Probe Ultrasonic Hardness Tester - UCI-3300C by Qualitest North America. This specialized manual portable hardness tester, equipped with the advanced extended probe HP-1C, ensures precision in on-the-spot hardness assessments. Ideal for NDT applications, the UCI-3300C excels in testing finished products, including challenging areas like deep holes in molds and gear teeth. Compliant with industry standards, including ASTM A1038-2005 and DIN50159-1-2008, this device guarantees accuracy with ±3% HV, ±1.5HR, ±3%HB.

Featuring a quick 2-second measurement, microscopic indentation visible through a high-power microscope, and a large LCD display for comprehensive data presentation, the UCI-3300C stands out for its user-friendly operation. Backed by a 2-Year warranty for the main unit, excluding the probe, and capable of storing up to 1000 groups of measurement data, this device ensures reliability and efficiency. Invest in the Qualitest North America UCI-3300C for unparalleled performance in hardness testing, especially in confined spaces and challenging environments.

Elongated Probe Ultrasonic Hardness Tester - UCI-3300C Introduction:

The Elongated Probe Ultrasonic Hardness Tester - UCI-3300C, equipped with the extended probe HP-1C developed by Qualitest North America, is a specialized manual portable hardness tester. Utilizing the method of ultrasonic contact independence, it facilitates on-the-spot hardness testing.

The UCI-3300C, classified as a Non-Destructive Testing (NDT) device, is an exceptional solution for assessing the hardness of finished products. It is particularly useful for testing challenging areas such as the deep holes in molds, gear teeth, inclined plane rails, and more, where the contact indentation is too small to be observed.

Compliant with industry standards, the UCI-3300C adheres to ASTM A1038-2005, DIN50159-1-2008.

Ultrasonic Hardness Tester



Application:

The UCI-3300C, featuring an extended probe, is ideal for hardness testing in confined spaces, on the floor of grooves, and for examining gear and deep hole specimens.

Invest in the UCI-3300C Elongated Probe Ultrasonic Hardness Tester from Qualitest North America for reliable and efficient hardness testing in diverse applications.

Ultrasonic Hardness Tester



Elongated Probe Ultrasonic Hardness Tester - UCI-3300C Key Features:

  • Perfect Accuracy: Achieves precision with an accuracy of ±3% HV, ±1.5HR, ±3%HB.

  • Microscopic Indentation: Indentations are observable only through a high-power microscope.

  • Quick Measurement: Delivers results in just 2 seconds.

  • Large LCD Display: Clearly presents measurement results, count times, maximum, minimum, average, and deviation.

  • Friendly Operation: Easily operated after a short training period.

  • Promised Warranty: Backed by a 2-Year warranty for the main unit (Probe excluded).

  • Mass Storage: Capable of storing up to 1000 groups of measurement data.

  • Simple Calibration: Stores 20 groups of calibration data for efficient calibration invocation, enhancing overall calibration efficiency.



Elongated Probe Ultrasonic Hardness Tester - UCI-3300C Technical Specifications:

Product Name Elongated Probe Ultrasonic Hardness Tester
ModelUCI-3300C
ProbeStandard 10N：HP-1C；Optional 20N：HP-2C
Hardness Range(ASTM)HRC：20-68；HRB：55-100；HRA：37-85；HBW：50-650；HV：100-1500；Mpa：255-2180N/mm
Measuring Accuracy（%）Scales﹤250HV250~500HV500~800Hv﹥800HV
HV0.16789
HV0.36789
HV0.85567
HV15567
HV55555
HV105555
Hardness ScalesVickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
LCDColor Screen
Data DisplayLCD Backlight, Adjustable
LanguageChinese, English, German, Portugese, Turkish
Data OutputRS232 Hyper Terminal/Bluetooth Printer
printBluetooth
Data StorageTo save 1000-groups of measuring data and 20-groups of calibration data
Word inputLetters and numerals
Working EnvironmentTemperature: -10°C to 50°C Humidity :30%-80% R.H.
Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
Recharger VoltageAC220V/50Hz, 110V/60Hz
Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and WeightPacking Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight （Standard Delivery）4.3Kg

Standard Delivery:

Product NameCode #Product NameCode #Product NameCode #
Instrument Main Body882-141C10N Manual Extended  Probe882-321CAnti Vibration Case882-901
Standard Rockwell Block882-641Probe Cable882-801Screw882-951
USB Recharger882-851COM Cable882-810Operation Manual/UCI-3300C
Qualification CertificateUCI-3300CPacking ListUCI-3300CWarranty CardUCI-3300C
