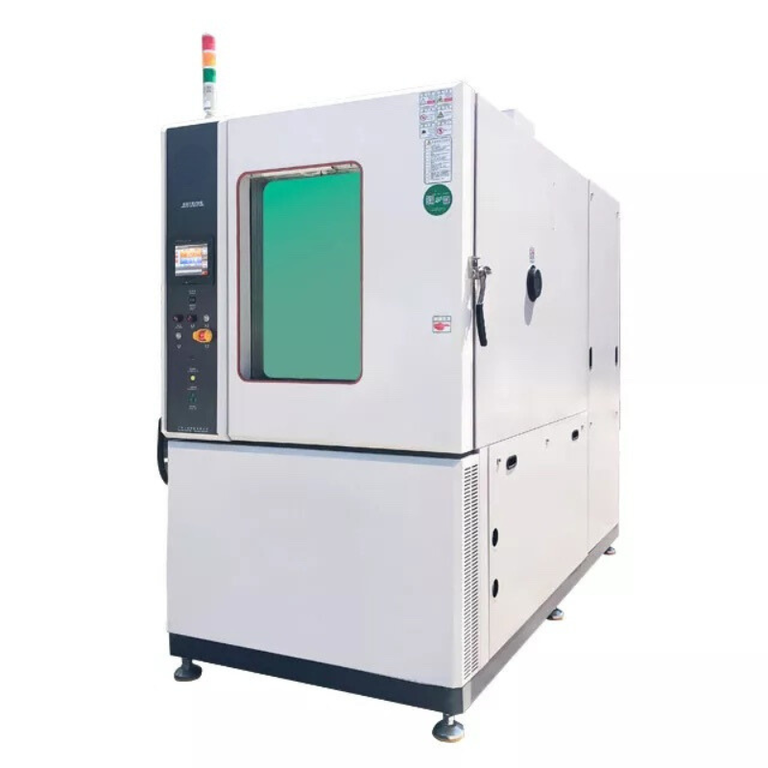

ESS Environmental Stress Screening Test Chamber

ESS Theory: Accelerated Stress Screening

An Environmental Stress Screening Test Chamber works by forcing microscopic manufacturing flaws, such as fractured solder joints or poorly seated internal wiring, to fail visibly before your products ever ship. This is the core science of ESS testing. It targets early-life breakdowns directly on the production floor, making sure weak component joints do not survive the factory.

ESS Methodology: Thermal Cycling vs. Burn-In

Standard burn-in testing simply bakes circuit boards in a steady, warm climate for long periods. ESS theory dictates a far more aggressive approach. To successfully expose latent defects, hardware must endure continuous, fast-paced transitions between opposite climate extremes. By using the Worldoftest QT-ESSTC series, you force components through lightning-fast swings from freezing cold up to scorching hot, combined with heavy moisture and random physical rattling. This precipitates early-life failures without consuming the actual operational lifespan of your healthy assemblies.

Test Parameters and Sequence Execution

The method relies on executing highly specific stress sequences matched to your product's physical limits.

• Thermal and Humidity Stressors: Our equipment applies extreme thermal shifts spanning from an icy -70°C up to a scorching 180°C, alongside heavy moisture control ranging between 20.0% and 98.0% Relative Humidity. These parameters are essential for shaking out defects in models ranging from the compact 225-liter QT-ESSTC-225 up to the spacious 1500-liter QT-ESSTC-1500.
• Hardware Assembly Level Testing: The methodology calls for testing individual printed circuit boards or smaller sub-assemblies first, rather than applying stress to fully assembled finished products.
• Temperature Shifting Rates and Standards Compliance: You must regulate high and low temperature limits, soak times, and the speed of transition. We execute this by letting you dial in specific, adjustable temperature shifting rates of 5°C, 10°C, 15°C, or a fast-acting 20°C per minute, ensuring total compliance with strict industry benchmarks like MIL-STD-2164, IPC-9701, and GJB/Z34-5.1.6.

Process Optimization and Parameter Tuning

To keep your production line moving smoothly, the testing method must be continuously optimized to achieve maximum screening strength in the shortest run time. Our systems allow you to tune heating and cooling speeds to expose flaws quickly, providing real-time test curve analysis with zero time restrictions. Align your quality control sequence with defect physics and cost-benefit balance. Deploy the QT-ESSTC setup to eliminate hidden production flaws instantly and secure high-grade reliability for your global customer base.
