ASTM D6988 / D645 · ISO 4593 / 23529 / 5084 · TAPPI · Compliant Thickness Measurement

Film and Paper Thickness Gauges are precision laboratory and production-line instruments that measure the physical thickness of plastic films, papers, paperboards, foils, laminates, metallized substrates, textiles, leathers, rubber sheets, and a wide range of other thin-sheet materials with sub-micron accuracy. In modern packaging, printing, converting, and material-manufacturing operations, thickness is the single most fundamental property that determines almost every other performance attribute: tensile strength, barrier properties (OTR, WVTR), tear resistance, dart-impact resistance, optical clarity, heat-seal performance, processing efficiency, and finished-product yield. A thickness deviation of just a few microns from specification can ruin an entire production batch, fail an FDA package-integrity submission, void a brand-owner's specification compliance, or trigger costly customer rejections. By delivering accurate, repeatable, standards-compliant thickness measurements — offline in the QC lab, on the plant floor for rapid spot-checks, or inline for real-time process control — modern thickness gauges form the analytical backbone of every serious converting and packaging operation worldwide.

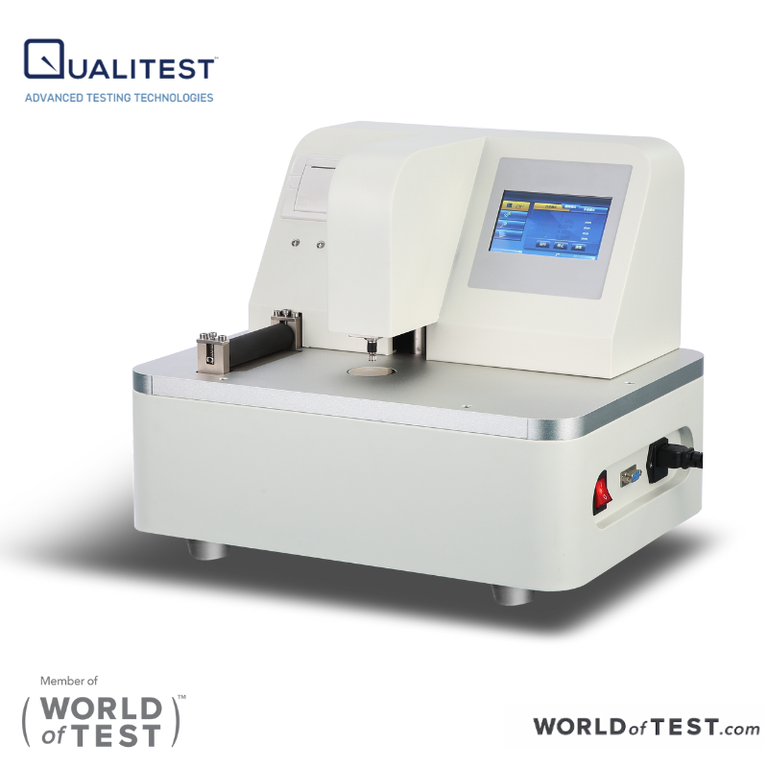

Qualitest offers one of the most comprehensive Film and Paper Thickness Gauge portfolios available worldwide. The range covers every operational tier — from the versatile multi-material QualiTG™ Series (rubber, films, foils, textiles, leather, cardboard, tissues) with configurable foot diameter and applied pressure conforming to ISO 23529, ISO 4593, ISO 5084, DIN EN ISO 2589, ASTM D3767, and ASTM D1777; through the high-precision QT-FTH digital thickness tester (range 0–1.5 mm with ±0.1 µm accuracy and PC connectivity); the cost-effective Model 543 plant-floor / laboratory spot-check tester; the broad-material CX-Series compliant with ASTM D645, and ISO 4593; the dedicated QT-VCTT Vacuum Coating Thickness Tester for aluminum and metallized films; the X-ray-based non-contact On-Line Film Thickness Measurement System for real-time inline process control; to the flagship MX-1100e — a revolutionary full-featured automatic ASTM- and TAPPI-compliant tester that combines affordability with advanced automation.

Applications in Industries

• Plastic Film & Laminate Manufacturing — Thickness QC of blown, cast, and extruded film products; multi-layer laminates; coated structures; and converted packaging films per ASTM D6988, D645, ISO 4593.
• Flexible Packaging Converters — Incoming-material qualification, line-side spot-checks, lamination-thickness verification, and outgoing finished-product compliance testing across high-speed converting lines.
• Paper, Paperboard & Pulp Industry — Caliper measurement of paper, paperboard, corrugated, tissue, and specialty paper products per ASTM D645 and TAPPI standards.
• Metallized & Vacuum-Coated Films — QT-VCTT-driven aluminum-coating thickness verification for snack-pack metallized PET, holographic substrates, capacitor films, and vacuum-deposited barrier layers.
• Pharmaceutical & Medical Packaging — Blister-pack lidding thickness verification, sterile-barrier substrate caliper QC, and pharmaceutical-pouch film qualification per USP and ISO 11607 requirements.
• Rubber, Leather & Textile Industries — QualiTG™-Series multi-material measurement of vulcanized rubber, technical textiles, woven and non-woven fabrics, leather goods, and coated webbings.
• Food, Beverage & Consumer Packaging — Brand-owner specification verification, package-integrity testing, and supplier qualification for food, beverage, and consumer-goods packaging materials.
• Online Production Process Control — X-ray non-contact inline measurement on continuous film extrusion, blown-film bubbles, calendering, and lamination lines — real-time feedback for closed-loop process control.
• Universities, R&D & Third-Party Test Labs — Materials-science research, sustainable-packaging development, novel-substrate characterization, and commercial test-house operations serving multiple industries.

Product Comparison Table

Why Choose Qualitest for Your Thickness Measurement Needs

Qualitest is a globally recognized supplier of advanced testing and analytical instruments, serving customers worldwide with one of the most comprehensive Film and Paper Thickness Gauge portfolios available.

Seven-Product Portfolio — One Trusted Source

From the versatile multi-material QualiTG™ Series, through high-precision QT-FTH digital gauges, plant-floor Model 543 spot-checkers, broad-material CX-Series testers, the specialized QT-VCTT vacuum-coating tester, the X-ray-based On-Line Film Thickness Measurement System, and the flagship full-featured automatic MX-1100e — Qualitest offers the broadest coordinated portfolio in the industry, matching every laboratory size, throughput, accuracy requirement, and material type. A single trusted supplier simplifies procurement, training, calibration, and standardization across your entire thickness-measurement workflow.

Sub-Micron Precision (±0.1 µm)

The QT-FTH delivers high-precision digital thickness measurement with ±0.1 µm accuracy across the 0–1.5 mm range — the analytical sensitivity required for premium packaging QC, sustainable-packaging R&D, and demanding material-characterization programs. Combined with seamless PC connectivity for automated control and data logging, the QT-FTH transforms thickness testing from manual labor into a fully digitized analytical workflow.

Full International Standards Compliance

Every Qualitest thickness gauge is engineered to meet the leading global standards — ASTM D6988 (plastic film thickness), ASTM D645 (paper caliper), ASTM D3767 (rubber), ASTM D1777 (textile/coated fabric), ISO 4593 (films/foils), ISO 23529 (rubber), ISO 5084 (textiles), DIN EN ISO 2589 (leather), GB 6672, and TAPPI standards — ensuring every test result is universally accepted, audit-ready, and defensible in customer certifications and regulatory submissions.

Online Real-Time Process Control

Qualitest's X-ray-based On-Line Film Thickness Measurement System delivers non-contact, non-destructive, real-time thickness data directly from the production line — improving final product quality through closed-loop process feedback and dramatically reducing material waste, off-spec production runs, and customer rejection rates. No production downtime, no destructive sampling, no waiting hours for lab results — just continuous web-thickness data, every second of every shift.

Configurable Foot Diameter & Applied Pressure

The QualiTG™ Series allows configurable foot diameter and applied pressure across models — a critical differentiator when testing diverse materials whose pharmacopeial and industrial standards specify different contact conditions. ISO 5084 calls for a specific foot diameter and pressure for textiles, ASTM D3767 for rubber, ISO 4593 for films — and the QualiTG Series adapts to each, eliminating the need for separate dedicated instruments.

Dedicated Vacuum-Coating Capability

The QT-VCTT is one of the few purpose-built thickness testers for vacuum-coated aluminum film and metallized substrates — addressing the unique measurement challenges of thin metallic layers on flexible polymer carriers used in snack packaging, capacitor manufacturing, holographic security films, and high-barrier flexible packaging.

Cost-Effective Value & Global Support

Qualitest delivers premium thickness-measurement performance at a transparent, competitive price point — backed by global service, training, calibration support, and stocked accessories worldwide. The MX-1100e in particular merges affordability with advanced features in a single revolutionary platform, while every Qualitest gauge benefits from worldwide presence ensuring expert installation, operator training, and ongoing service are always within reach.

Measure Every Micron. Protect Every Production Run.

In modern flexible-packaging, paper-converting, and film-manufacturing operations, thickness is the silent gatekeeper of every other quality attribute — and the single measurement most likely to determine whether a production batch ships profitably or gets rejected. A few microns of variation in caliper across a paperboard reel ruins a high-speed converting run; a sub-micron metallization shortfall on a metallized snack-pack film fails the barrier specification; a brief thickness excursion on a blown-film line invalidates the brand-owner's supplier-qualification audit. The manufacturers, converters, and brand-owners who consistently deliver compliant, profitable, customer-trusted packaging are the ones equipped with thickness gauges built for precision, repeatability, online process control, and full international-standards compliance — and the Qualitest thickness-gauge portfolio gives you exactly that.

Whether you are launching a new sustainable-packaging product, expanding a metallized-film operation, building a multi-material QC laboratory, supporting a high-throughput flexible-packaging converter line, or commissioning an inline real-time process-control system for blown-film extrusion, Qualitest has the thickness-measurement platform engineered to meet your exact needs. From the multi-material QualiTG™ Series and the sub-micron-accuracy QT-FTH to the flagship MX-1100e automatic tester and the X-ray On-Line Film Thickness Measurement System, every Qualitest instrument delivers world-class performance backed by industry-leading service and support.
