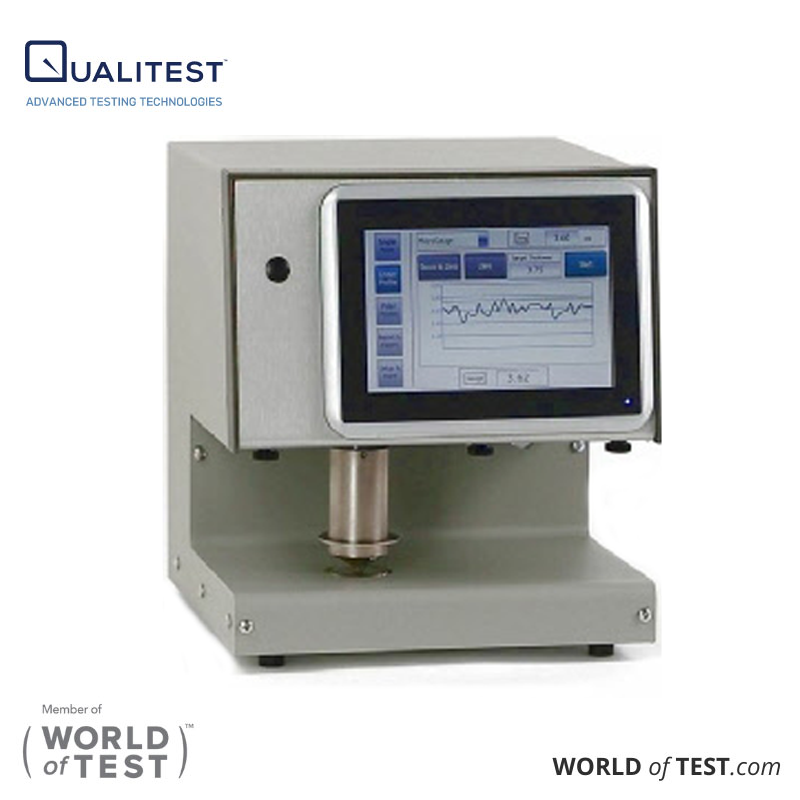

Thickness Tester for Plastic Film and Paper - Off-Line MicroGauge MX-1100e

Full-Featured Automatic Thickness Tester and Caliper Gages for Film and Paper

In the past, film and paper producers and converters have had the choice of caliper gages which were either value-priced thickness-only machines, or expensive computer-operated machines. Now you can have the best of both worlds in a single instrument. Qualitest offers the MX Series, a simple to use stand-alone or computer operated tester, with optional Quality Control software for automatic calculation and graphical display of thickness profiles, statistics, and other information.

The Qualitest Advantage

Meets ASTM and TAPPI

Meets specifications of ASTM D-6988, ASTM D-374, TAPPI T-411, BS 2782-6, and DIN 53370, Standard Test Methods for Thickness Testing of Plastic Film and Paper.

Advanced Technical Features in Each Model

Easy, Error-Free Operation; Three Modes of Operation

Three modes of operation: Operate as a stand-alone, touch screen system, or Operate in Digital/Software mode using either a Non-Statistical Ticket Printer, or with 3rd Party Statistical Quality Control Software to display profile graphics and calculate data statistics. Includes digital push-button Zero operation.

Large 7 inch Touch Panel Display Offering Discrete Point Testing, Push-Button Zero, and On-Board Statistics

The MX-1100 offers discrete point testing with the measurement head automatically cycling up and down for point-to-point testing. Statistics can be displayed on the touch panel display including: High, Low, Average, Standard Deviation, Sample Count, plus Linear Profiles (below left) and Polar Profiles.

Expandable; Industry-Leading Software

Portable and expandable with optional software (below right), ticket printers, statistical ticket printers, and computer systems. A ticket printer or computer is required for operation in the Digital/Software mode. Windows 7 or 10-based advanced software for display/hard-copy reporting of statistical and graphical analysis of thickness data including high, low, average, standard deviation, and data count values.

Thickness Tester for Plastic Film and Paper



Off-Line MicroGauge MX-1100e Technical Specifications

Mode of operation

Off-line testing / lab use, Discrete Point Testing
Materials

All film and sheet materials
Measurement Range

0-50 mil, 0-100 mil, 0-200 mil, 0-300 mil
(0-1270 micron, 0-2540 micron, 0-5080 micron, 0-7620 micron)
(0-1.3 mm, 0-2.5 mm, 0-5.0 mm, 0-7.5 mm) other ranges available
Please Specify microns or mm when ordering metric units
Stroke (Probe retract height)

Measurement Range plus 50-100 mil
Display (7 Inch TFT-LCD Touch Screen) and Serial Output Range / Resolution

0 - 50 mil Measurement Range, 0 - 199.99 mils
0 - 100 mil Measurement Range, 0 - 1.9999 mm
and 0 - 200 mil Measurement Range 0 - 1999.9 microns

0 - 300 mil Measurement Range, 0 - 1999.9 mils
0 - 19.999 mm
0 - 19999 microns
Resolution

0.01 mil (0.1 micron) (0.0001 mm) up to 200 mil Range
0.1 mil ( 1 micron) (0.001 mm) 300 mil Range
Accuracy

+/- 0.02 mils (+/- 0.50 micron) (+/- .0005 mm) (+/- 20 micro inch)
Parallelism

+/- 40 micro inches or better (+/- 1.0 micron or better)
Foot Size (Contact Point)

0.188 inch dia. (4.3 mm dia) (film)
0.628 inch dia. (15.9 mm dia.) (paper)
Other sizes available for non-wovens, other materials,
up to 1.100 inch dia.
Foot Pressure

4.0 - 8.0 psi (0.562 kg/ cm2) (film)
7.3 psi (0.513 kg / cm2) (paper)
Other settings available for non-ovens, other materials
Cycle Rate

20 per min (film) (40 as an option) at 60 Hz
20 per min (paper) (12 as an option)
Lowering Rate

0.040 inch/sec. (1mm / sec) (paper)
Dwell (at zero reading)

3 +/-1 seconds (paper)
Drive Increments

N/A
Firmware Data Display

Thickness Data
Serial Data Communications

RS-232 for Ticket Printer, USB 2.0 for Computer
Power Requirements

115 VAC, 60 Hz, 230 VAC, 50 Hz, or consult factory
Dimensions (W x D x H, Instrument Only)

10 x 10 x 13 inch (25 x 25 x 28 cm)
Dimensions (W x D x H, Shipping)

20 x 16 x 16 inch (51 x 41 x 41 cm)
Weight (Instrument Only)

20 lbs (9 kg)
Weight (Shipping)

30 lbs (14 kg)
