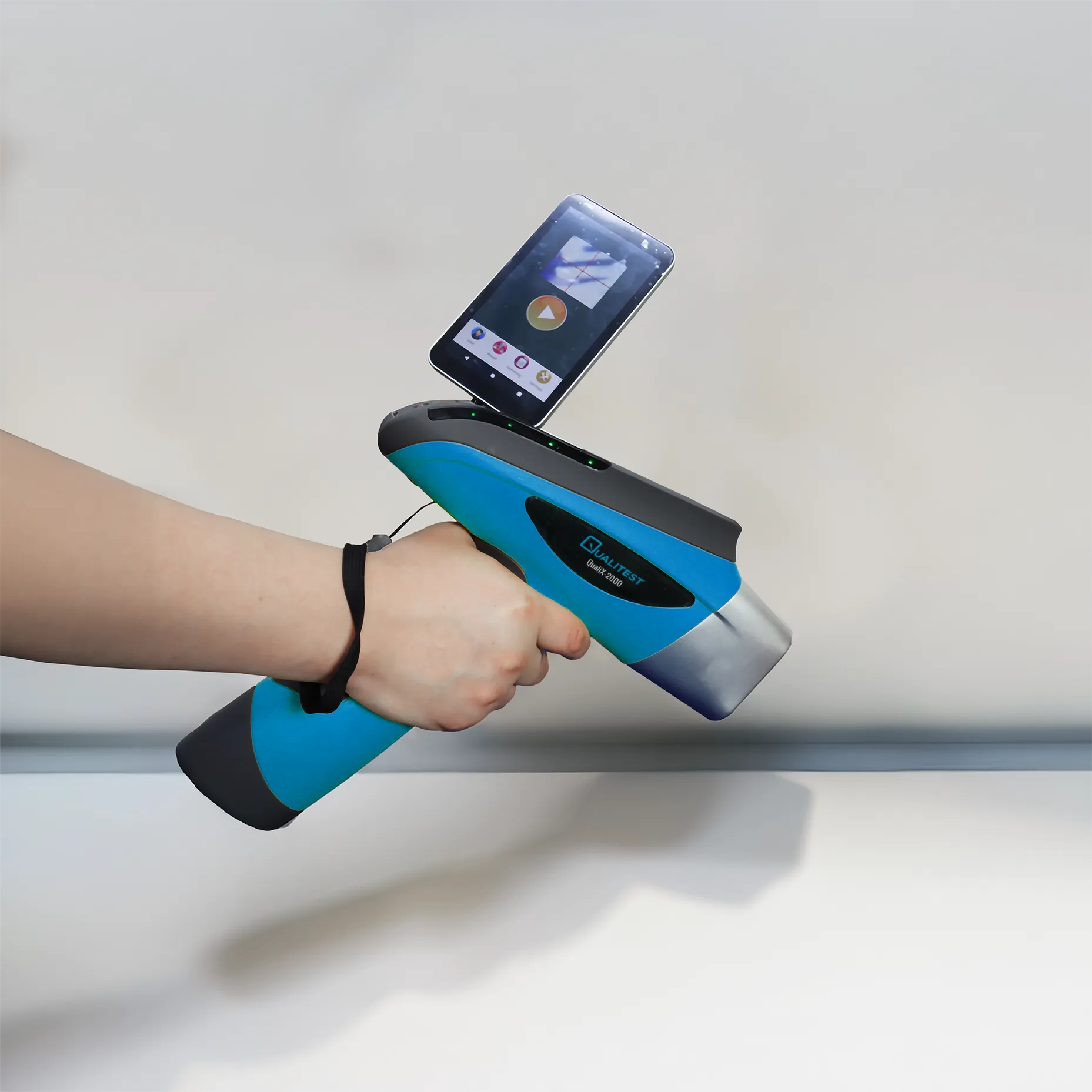

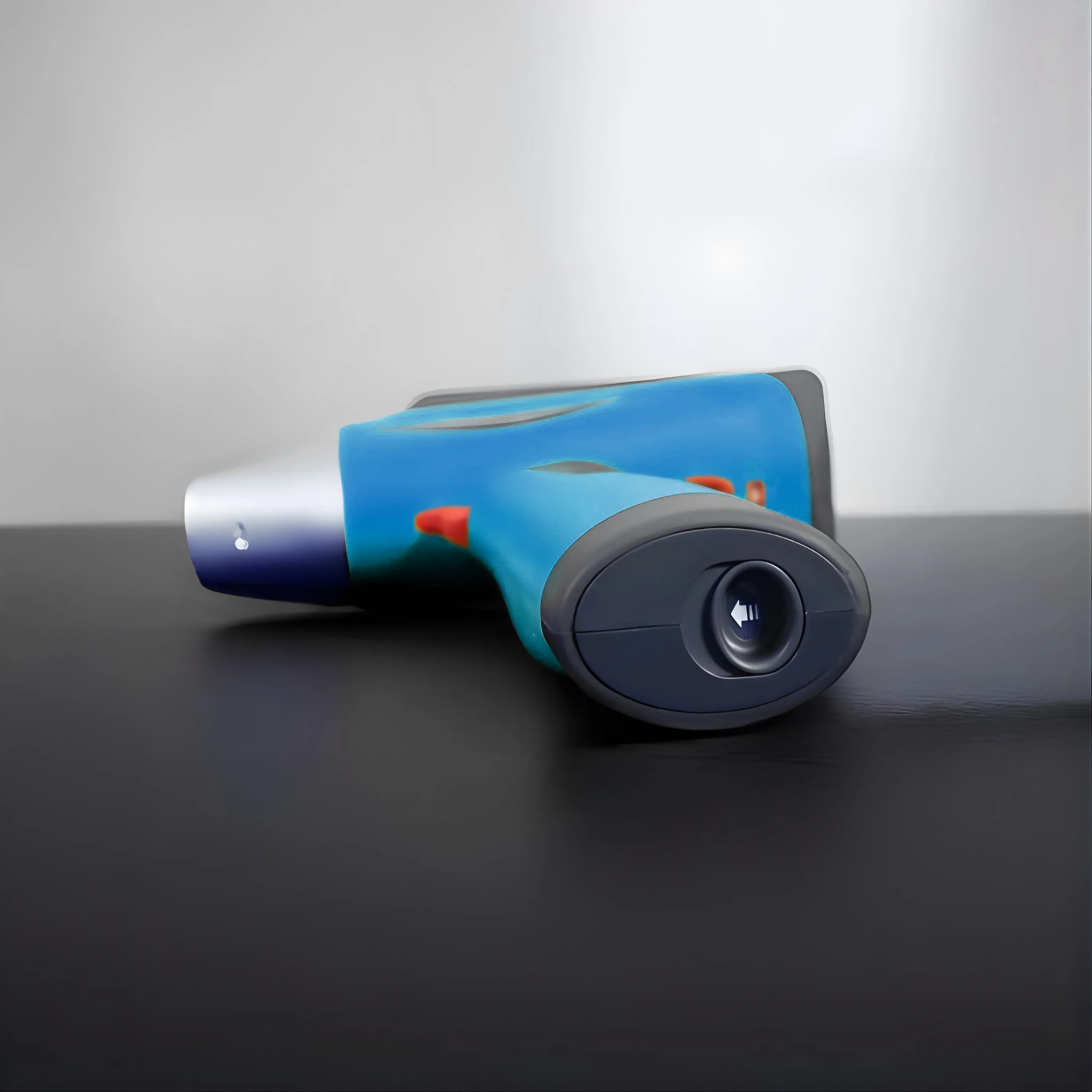

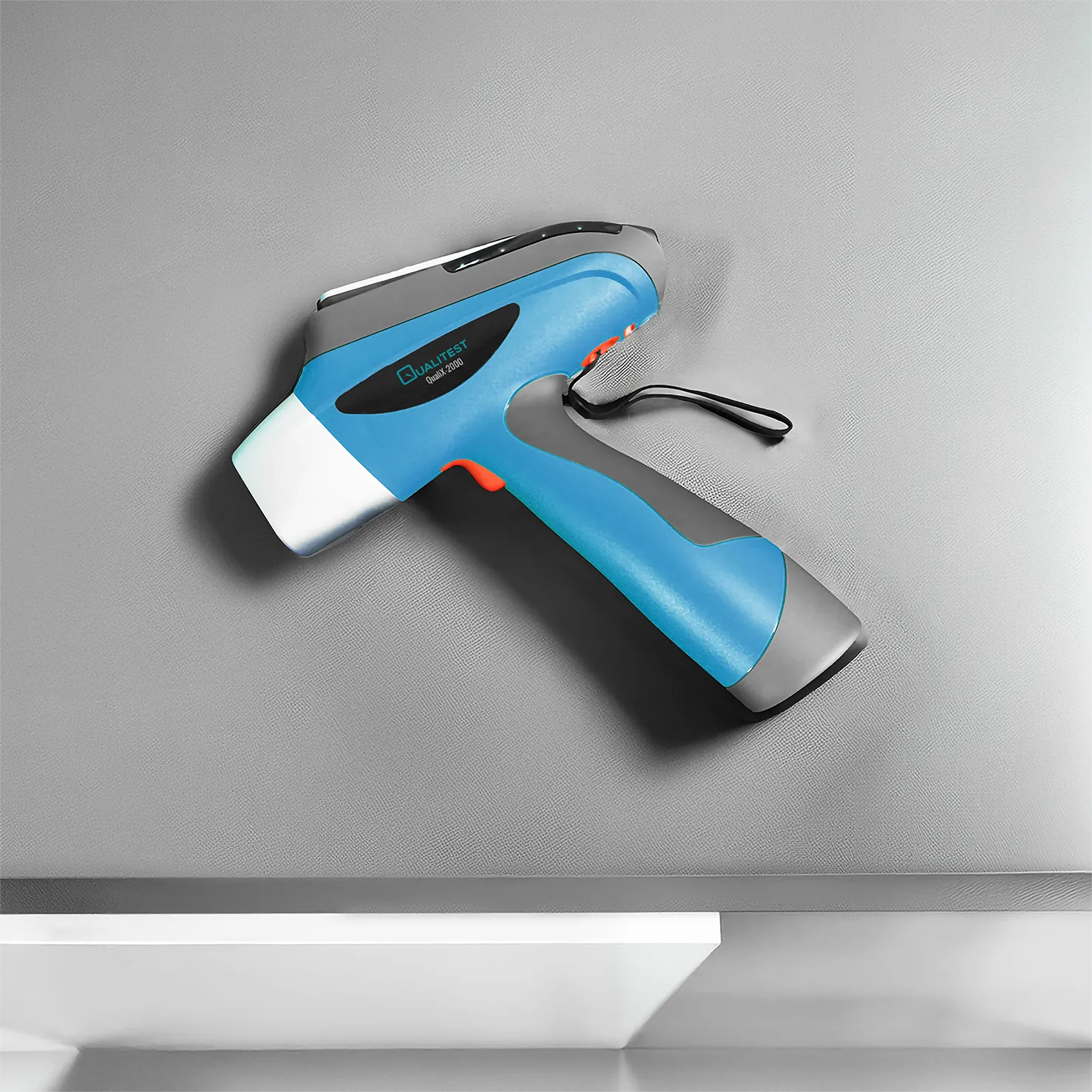

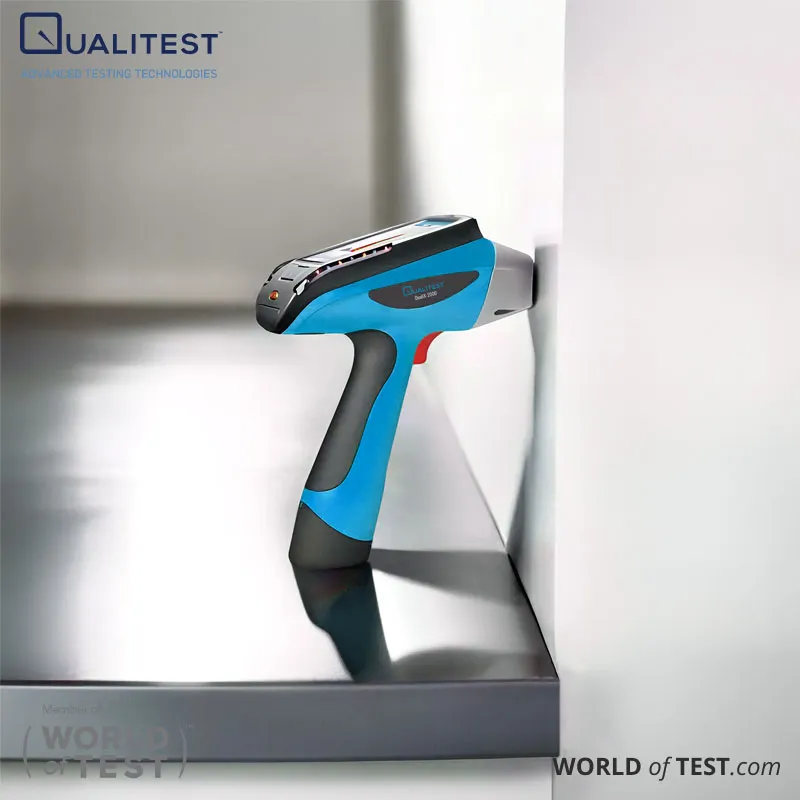

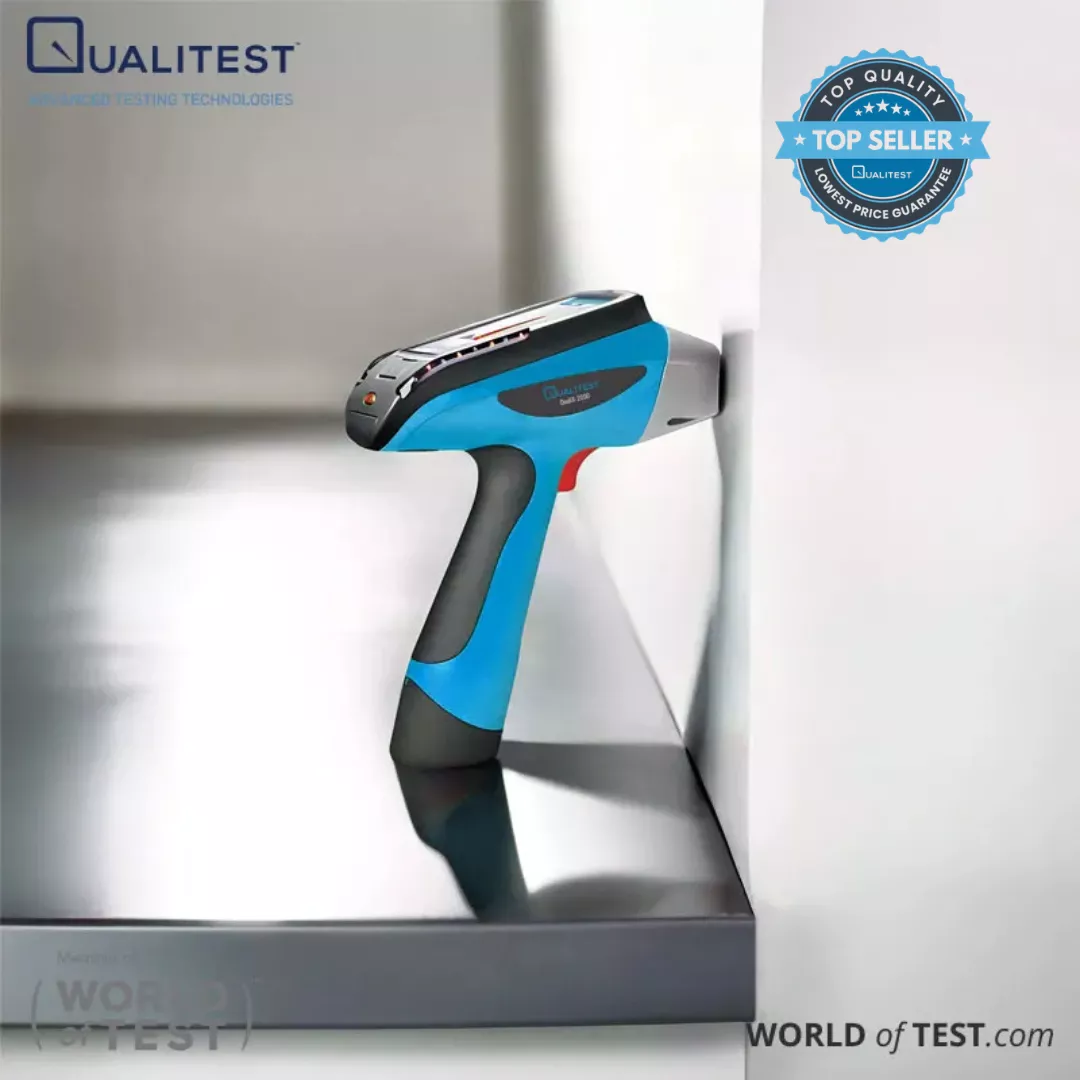

Handheld Portable XRF Alloy Analyzer - QualiX™ 2000A

Handheld Portable XRF Alloy Analyzer - QualiX™ 2000A Advantages

Easy Operation

• Lightweight & Compact: Ergonomic handle and a dedicated carrying case ensure a comfortable grip and easy field use.
• High-Definition Rotating Display: 5-inch screen with 270-degree rotation and multi-touch functionality for clear visibility in any lighting conditions.
• Rugged & Reliable: Sealed, waterproof, and dustproof design allows continuous operation in harsh environments.

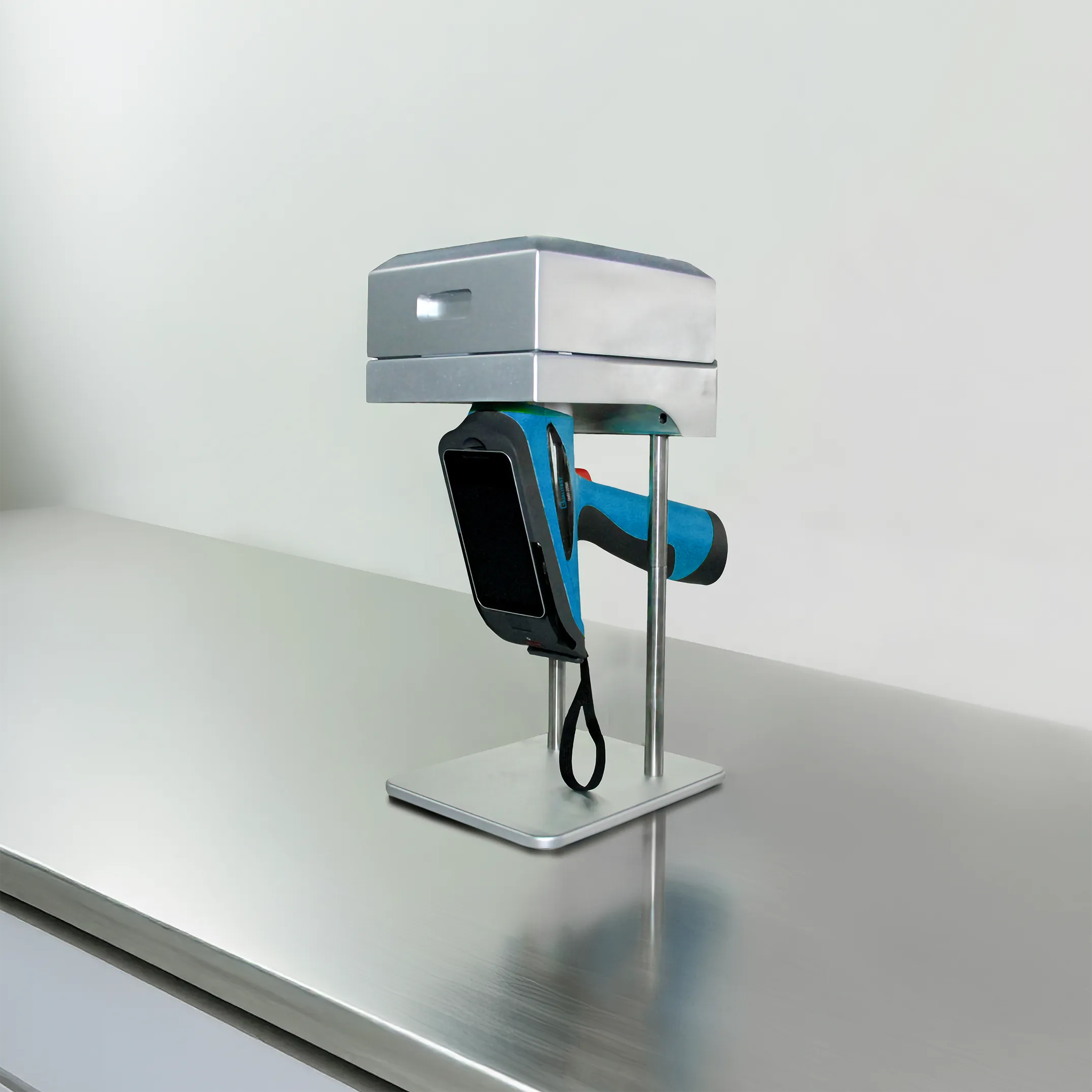

• Instant Testing: No sample preparation required—directly measures and analyzes surfaces for quick results. Offers both fast handheld testing and precise long-term analysis with its test block.

Enhanced Performance

• Rapid, Non-Destructive Testing: Delivers results within one second with accuracy comparable to bench-top analyzers.
• Comprehensive Element Detection: Simultaneously analyzes Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, In, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, and S, with the option to customize elements based on user needs.
• Advanced Optical Design: Operates without helium, enabling efficient detection of light elements starting from Mg, meeting the demands of specialized applications.

 Powerful Battery Life

• High-Capacity Battery: Optional 27,000mAh lithium battery provides up to three days of continuous operation.
• Reliable Power Supply: Includes a communicator and car charger for convenient recharging.
• Seamless Battery Replacement: Built-in backup battery ensures uninterrupted operation during battery swaps.

Advanced Configuration

• High-Precision Core Components: Equipped with a miniature X-ray tube, Fast-SDD detector (industry-leading technology), digital signal processor, and intelligent micro multichannel analysis module—delivering accuracy comparable to benchtop models.
• Expanded Data Storage: Features ultra-high-frequency memory and large storage capacity, with proprietary digital multi-channel technology achieving spectral counts up to 500K cps per second.
• Adaptive Collimation & Filtering: Supports up to 12 filter group combinations to meet diverse testing requirements.
• Integrated HD Camera: Built-in 800W-pixel high-definition camera allows real-time observation of the testing position, ensuring precise measurements.

 Enhanced Safety Features

• Intelligent Three-Color Warning System:
  • 360-degree LED indicator for real-time status updates.
  • Green Light: Power on.
  • Red Flashing: Testing in progress.
  • Yellow Flashing: Equipment fault detected.
• Triple Safety Protection:
  • Automatic Detection: The instrument only operates when a sample is present, preventing radiation leakage.
  • Reinforced Shielding: A thickened protective barrier minimizes radiation scatter.
  • Protective Cover: Prevents external light interference for accurate results.
• Security Locking System:
  • Ensures safe shutdown if the software fails to power off the device, providing an extra layer of protection.

Smarter Software

• Industry-Specific Application: The Handheld Portable XRF Alloy Analyzer - QualiX™ 2000A alloy analyzer features advanced software tailored for the alloy industry, offering high sensitivity, rapid testing, and intuitive operation.
• Dual-Mode Functionality:
  • User Mode: One-touch operation for quick sample classification.
  • Expert Mode: Allows customization of elements and in-depth analysis for enhanced precision.
• Automatic Correction System: Internal intensity correction adjusts for variations in sample geometry, density, and structure, ensuring accurate results.
