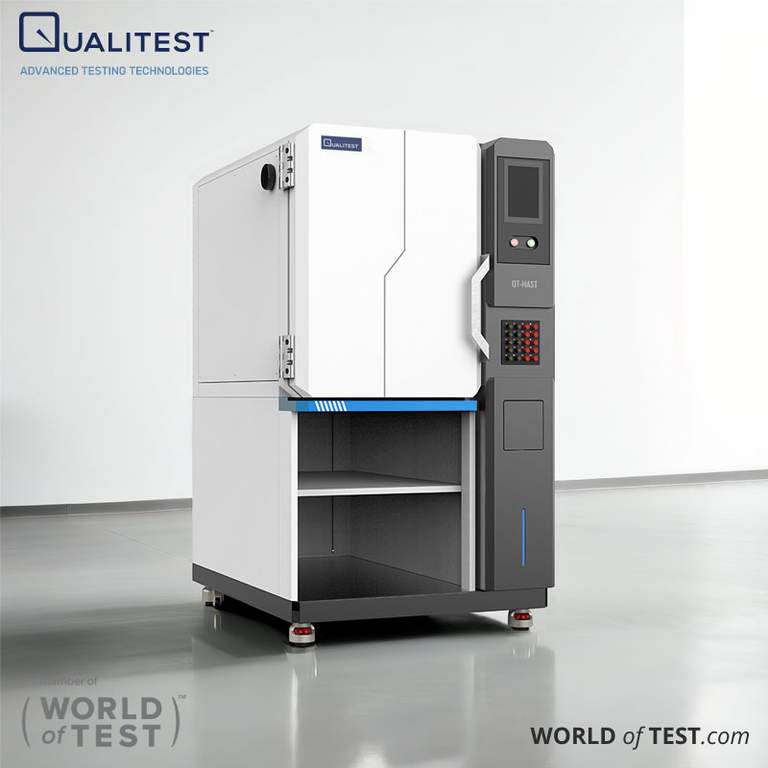

HAST Highly Accelerated Stress Test Chamber

The HAST accelerated aging stress test chamber is widely used for testing the sealing properties of multi-layer circuit boards, IC sealing packages, LCD screens, LEDs, semiconductors, magnetic materials, rare earths, and magnet iron. This chamber can assess the resistance to pressure and air tightness of the products mentioned above.

The purpose of this test is to increase environmental stress factors, such as temperature, and apply working stress elements like voltage and load to the product. This accelerates the testing process and shortens the time needed to assess the product or system's lifespan. The test aims to investigate and analyze the onset of wear and service life issues in electronic components and mechanical parts, determine the shape of the failure distribution function of the service life, and identify the causes behind the increased failure rate.

Applications

HAST Highly Accelerated Stress Test Chamber
(also known as HAST High-Pressure Accelerated Aging Tester)

The HAST accelerated aging stress test chamber is widely used for testing the sealing properties of multi-layer circuit boards, IC sealing packages, LCD screens, LEDs, semiconductors, magnetic materials, rare earths, and magnet iron. This chamber can assess the resistance to pressure and air tightness of the products mentioned above.

The purpose of this test is to increase environmental stress factors, such as temperature, and apply working stress elements like voltage and load to the product. This accelerates the testing process and shortens the time needed to assess the product or system's lifespan. The test aims to investigate and analyze the onset of wear and service life issues in electronic components and mechanical parts, determine the shape of the failure distribution function of the service life, and identify the causes behind the increased failure rate.

HAST Highly Accelerated Stress Test Chamber



Features of the HAST Highly Accelerated Stress Test Chamber:

  • Use of a high-temperature-resistant solenoid valve with a dual-loop design, which reduces the failure rate.
  • Separate steam generation room to prevent direct contact between steam and the product, thus avoiding potential damage to the product.
  • Special door lock to reduce the effort required when opening or closing the door.
  • Intelligent exhaust design (exhausting air in the boiler) improves pressure stability and reproducibility.
  • The machine can operate continuously for 400 hours, making it suitable for ultra-long-term experiments.
  • The tank can withstand pressures of up to 140℃, meeting the pressure resistance requirements of a 6kg tank in water pressure testing.
  • A two-stage pressure safety protection device is utilized, which includes a two-stage combined controller and a mechanical pressure protection device.
  • The machine features a two-stage automatic pressure relief button for safety protection and an emergency safety device.
HAST Highly Accelerated Stress Test Chamber
Features/Advantages

Features of the HAST Highly Accelerated Stress Test Chamber:

  • Use of a high-temperature-resistant solenoid valve with a dual-loop design, which reduces the failure rate.
  • Separate steam generation room to prevent direct contact between steam and the product, thus avoiding potential damage to the product.
  • Special door lock to reduce the effort required when opening or closing the door.
  • Intelligent exhaust design (exhausting air in the boiler) improves pressure stability and reproducibility.
  • The machine can operate continuously for 400 hours, making it suitable for ultra-long-term experiments.
  • The tank can withstand pressures of up to 140℃, meeting the pressure resistance requirements of a 6kg tank in water pressure testing.
  • A two-stage pressure safety protection device is utilized, which includes a two-stage combined controller and a mechanical pressure protection device.
  • The machine features a two-stage automatic pressure relief button for safety protection and an emergency safety device.
HAST Highly Accelerated Stress Test Chamber
Theory/Method
HAST Highly Accelerated Stress Test Chamber



Technical Specifications

Technical Specifications of HAST Highly Accelerated Stress Test Chamber

Model

QT-HAST-40-A

Internal Chamber Size

φ400 mm x D500 mm (round test chamber)

Overall Dimensions

1050x 980 x 1850 mm (WxDxH) vertical

Temperature Range

105 °C~132°C (steam temperature)

Temperature Uniformity

±2°C

Temperature Display Accuracy

0.1°C

Humidity Range

75%~100% (vapor humidity)

Humidity Uniformity

±3%RH

Operating Pressure

1.2~2.89 Kg (including 1 Atm)

Pressurizing Time

0 Kg~1.04 Kg / cm2 approx. 45 minutes

Pressure Fluctuation

±0.1Kg

Time Range

0~999 Hours

Chamber Material

Inner chamber material

SUS#316 stainless steel plate.

Outer chamber material

Cold rolled sheet with powder coating.

Insulation material

Rock wool and rigid polyurethane foam insulation

Heating tube of steam generating chamber

Titanium tube heating, Rust-proof.

Control System
  • Color touch screen controller to control humidity and steam temperature (using PT-100 platinum temperature sensor).
  • Gauge to display pressure gauge.
  • Microcomputer P.I.D automatically calculates and controls the saturated steam temperature and steam humidity.
  • Manual water inlet valve (automatic water replenishment function, continuous test without stopping the machine).

Mechanical Structure
  • Round inner chamber: Stainless steel round inner box structure, in line with industrial safety container standards, can prevent condensation and dripping during the test.
  • Round lining: Stainless steel round lining design, can avoid steam latent heat directly impact on test samples.
  • Precision design, good airtightness, low water consumption, and continuous operation for 400 Hours without refilling water.
  • Critical point LIMIT mode automatic safety protection, error, and fault indicator display.

Safety Protection of HAST Highly Accelerated Stress Test Chamber
    • High temperature resistant sealed solenoid valve uses double loop design to ensure no pressure leakage
    • The chamber is equipped with over-pressure protection, over-temperature protection, one-button pressure relief, manual pressure relief and multiple safety protection devices to ensure safety during operation.
    • Back pressure door lock device ensures the chamber door cannot be opened when there is pressure inside chamber.

    Accessories

    1 set of sample tray

    Power supply requirements
    1. The fluctuation of the system power supply shall not exceed ±10%
    2. Power supply: Single-phase 220V 50Hz 20A (Other voltages upon request)

    Operating room requirements
    1. Working environment temperature 5°C~35°C, humidity≤85%RH.
    2. Water: Pure or distilled water.
