| Feature / Parameter | Value / Operating Specs | Standard Compliance |
|---|

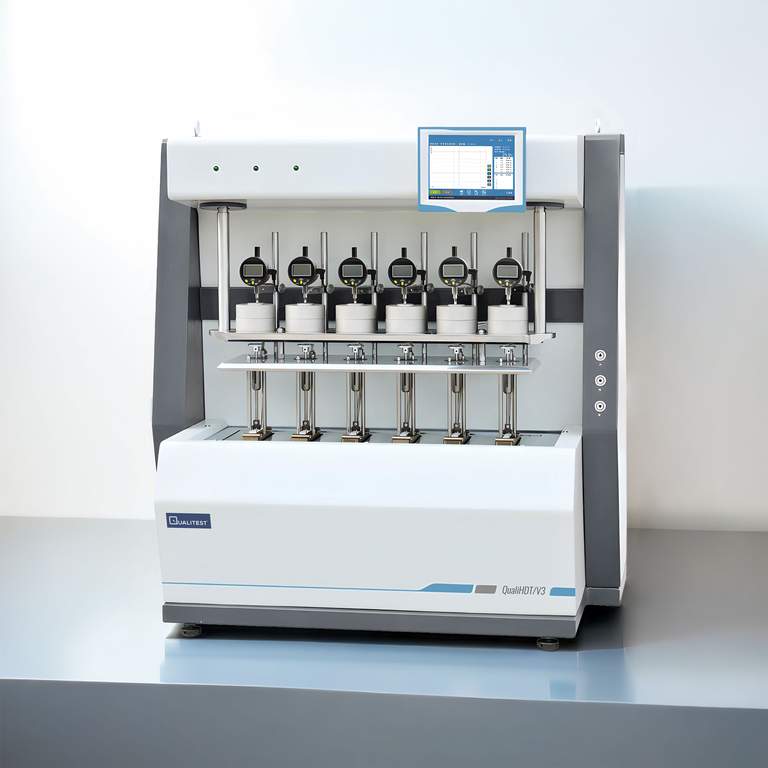

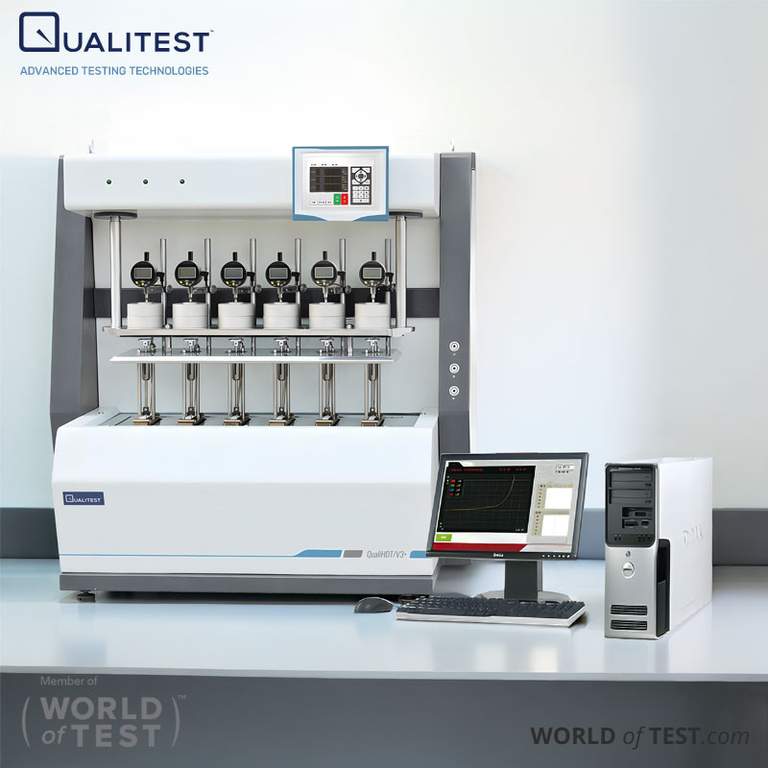

| Instrument Model | Qualitest HDT Vicat Tester - QualiHDT™ V3 Series | ISO 75, ISO 306, ISO 2507, ASTM D648, ASTM D1525 |
| Testing Stations | 6 independent stations for multi-sample thermomechanical testing | Simultaneous multi-station testing |
| HDT Principle | Three-point flexural loading; records temp at 0.34 mm deflection | ISO 75 / ASTM D648 (Support spans: 64 mm, 100 mm) |
| Vicat Principle | Concentrated needle penetration; records temp at 1.00 mm penetration | ISO 306 / ASTM D1525 / ISO 2507 |
| Temperature Range | Room Temperature to 300 °C | ±0.5 °C accuracy at 50 °C/h; ±1.0 °C at 120 °C/h |
| Deformation Device | High-precision Digital Microgauge (-1.00 mm to 9.00 mm range; 0.005 mm max error) | Real-time deformation vs. temp graphing |
| Frame Expansion | Structural frame expansion coefficient < 0.005 mm / 100 °C | Minimizes thermal expansion measurement error |
| Heating Medium | Methyl Silicone Oil bath with continuous mechanical agitation | Integrated automatic smoke exhaust system |
| Standard Test Loads | HDT: 0.45 MPa (Method B) & 1.80 MPa (Method A)
Vicat: 10 N (Method A) & 50 N (Method B) | Calibrated weight sets included |
Test Theory: Flexural Deflection vs. Needle Penetration
In an HDT Vicat Tester such as the QualiHDT™ V3 Series, HDT tracks specimen flexural bending under three-point loading, whereas Vicat measures needle penetration depth under compressive force. The physical softening mechanism depends on force application and resin morphology.
HDT Flexural Theory
Heat Deflection Temperature measures a combination of viscoelastic creep and thermal expansion under flexural stress. On the QualiHDT™ V3, support spans adjust to 64 mm or 100 mm for standard beam geometries (80 × 10 × 4 mm).
In amorphous polymers like polycarbonate, physical aging alters creep rates far more than thermal expansion. When viscoelastic creep remains minimal, HDT can be calculated using classical elastic beam deflection formulas, correlating closely with glass transition temperature (Tg).
Vicat Penetration Theory
Vicat Softening Temperature measures concentrated surface compression from a 1 mm2 flat needle tip into plaque specimens (10 × 10 × 4 mm). For amorphous polyesters, Vicat softening points sit directly within the glass transition zone.
For semi-crystalline thermoplastics like UHMWPE composites, Vicat marks the temperature where approximately 50% of crystalline domains have melted, whereas HDT identifies the onset of crystalline melting.
Method Parameters and Equipment Design
Executing standard-compliant tests on an HDT Vicat Tester requires controlled thermal ramps, precise load application, and accurate displacement sensing:
- Thermal Ramp Control: An agitated methyl silicone oil bath with independent thermal safety protection maintains linear heating schedules at 50 °C/h (±0.5 °C) or 120 °C/h (±1.0 °C) up to 300 °C, ensuring uniform heat transfer across all 6 stations. Rapid post-test cooling is managed via combined water cooling (below 150 °C) and natural cooling (above 150 °C).

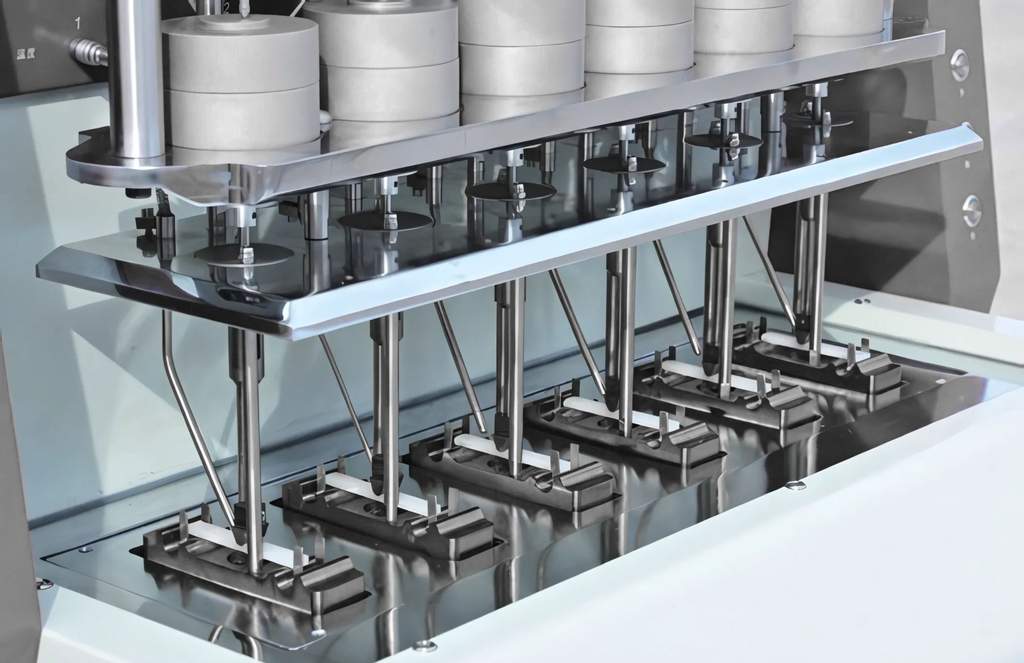

- Displacement & Load Precision: Electronic position tracking uses digital microgauges (-1.00 mm to 9.00 mm range; 0.005 mm max error) combined with an ultra-low frame expansion coefficient (< 0.005 mm / 100 °C). Automated specimen frame lifting prevents thermal distortion during loading, while precise weight sets deliver standard flexural stresses (0.45 MPa / 1.80 MPa) or Vicat loads (10 N / 50 N).

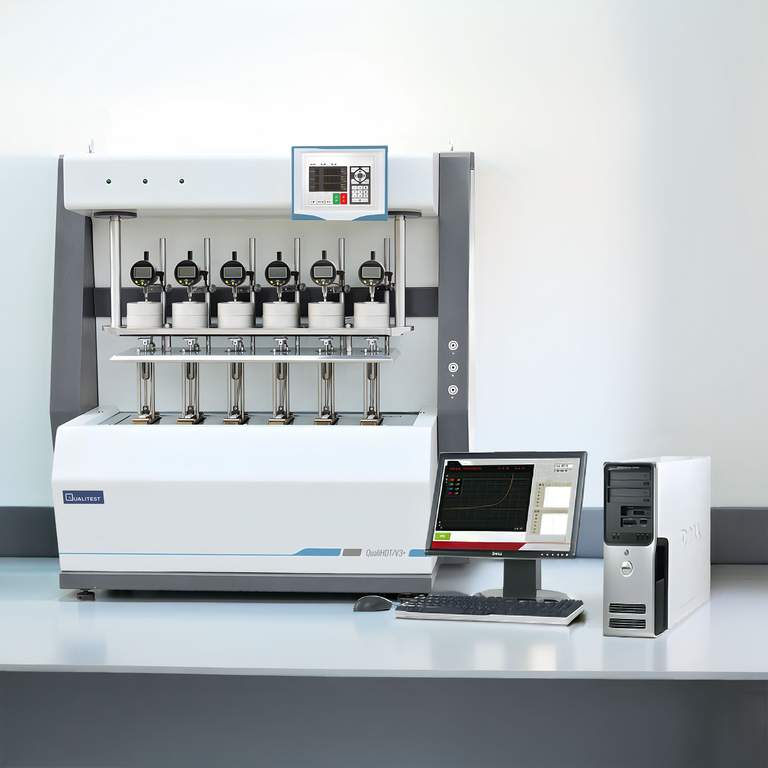

- Data Acquisition: Touchscreen controls and connected software display real-time deformation vs. temperature curves across all 6 stations, allowing statistical evaluation across replicate test bars (3 to 4 specimens) per batch.
Methodological Variables and Calibration
Reported softening points on an HDT Vicat Tester depend on sample preparation, material morphology, and system calibration:
- Viscoelastic & Processing Effects: HDT values exhibit greater variance than Vicat scores because HDT depends on viscoelastic creep history and molded-in thermal stress; unannealed polycarbonate specimens can shift by over 20 °C. Vicat testing offers higher stability when comparing amorphous thermoplastics.
- Thermal Conditioning & Fillers: Pre-test thermal annealing relieves internal stress, increasing HDT and Vicat values in epoxy and PCL formulations. Fiber reinforcement and nucleating agents increase flexural modulus, raising HDT values more significantly than Vicat softening points.
- Calibration Factors: Accurate thermomechanical data on the QualiHDT™ V3 requires routine calibration of heating ramp rates, applied mass loads, zeroing points, and digital microgauges, preventing measurement errors from affecting reported softening temperatures.
