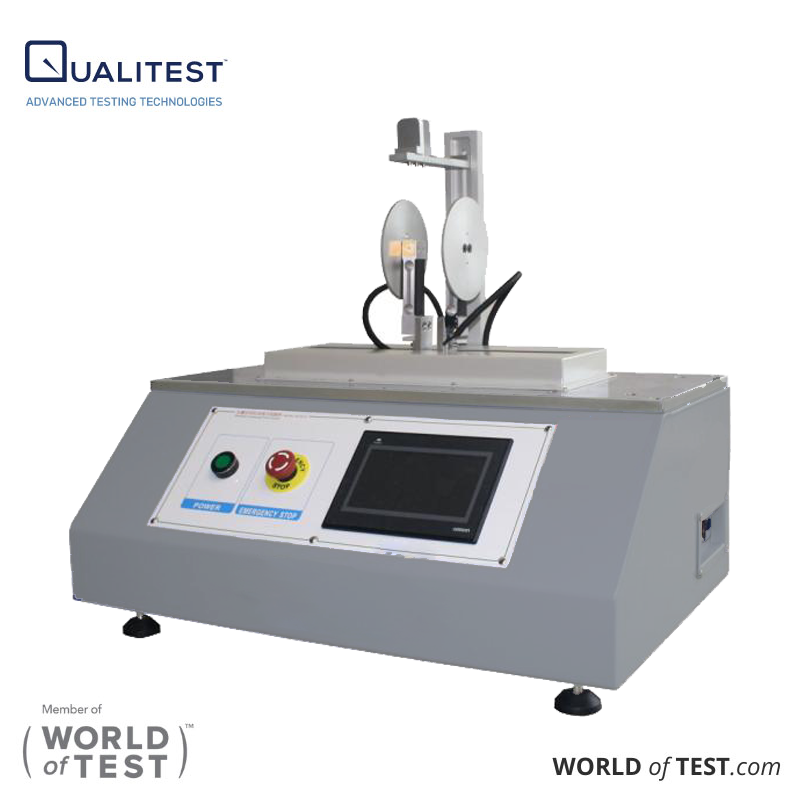

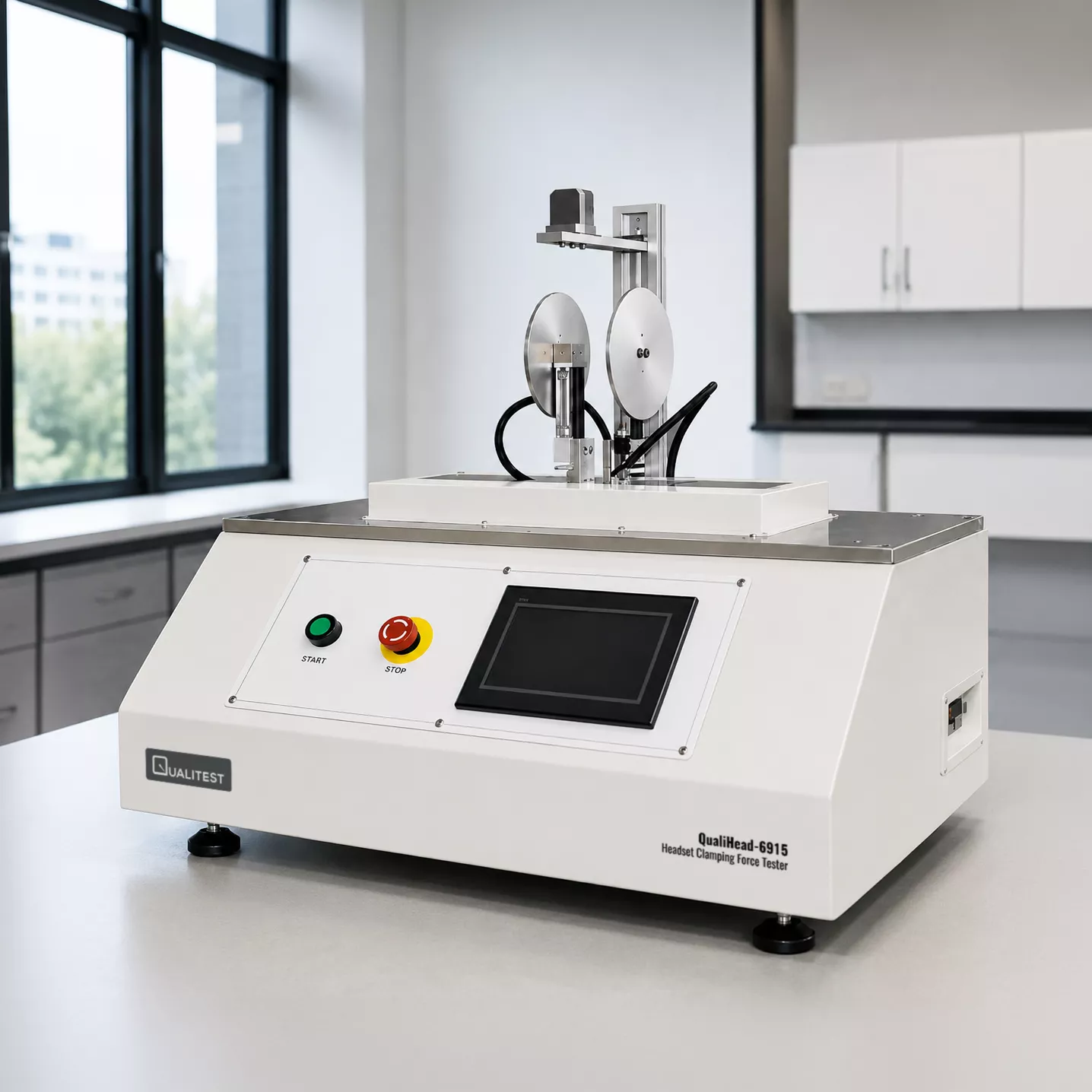

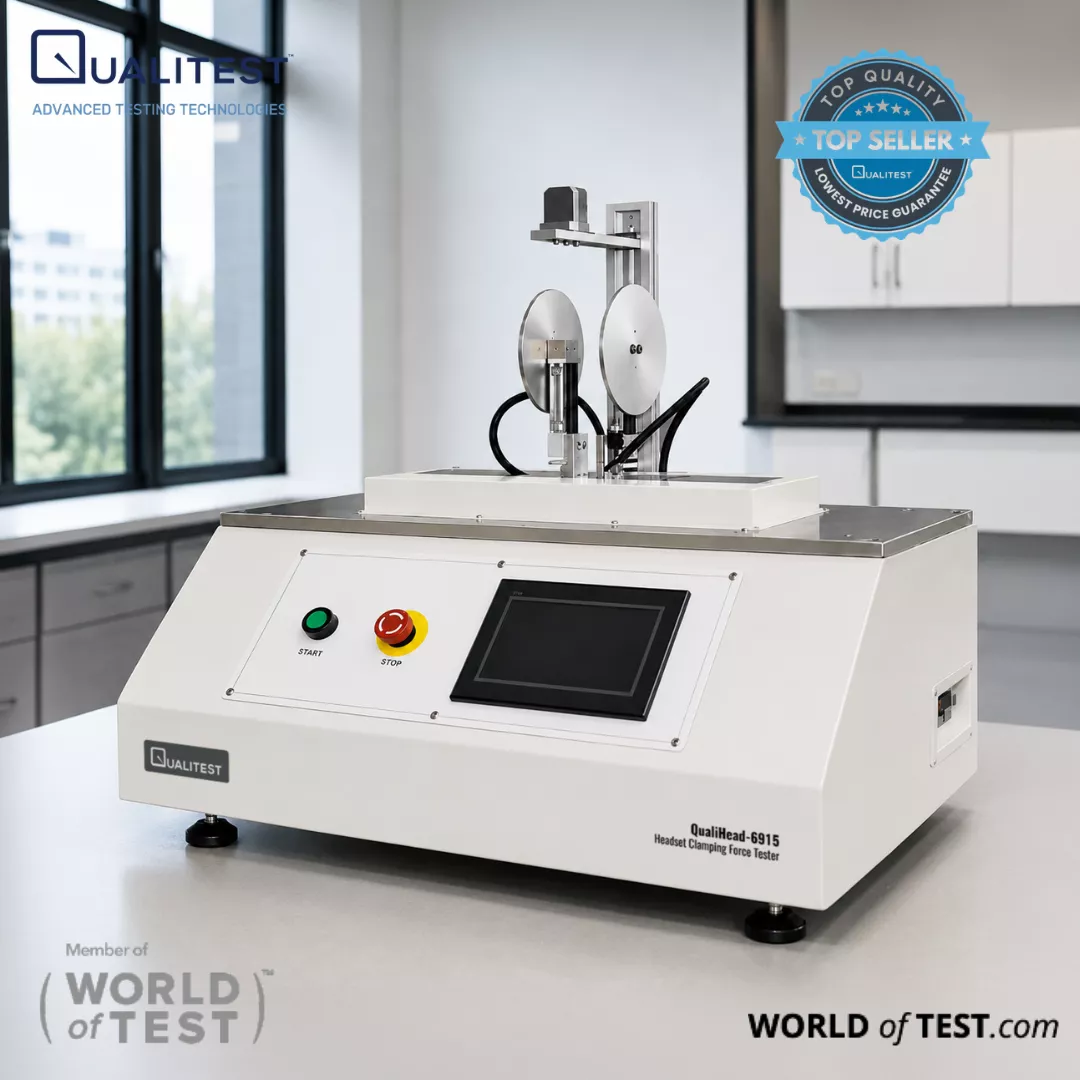

Headset Clamping Force Tester

The Headset Clamping Force Tester perfect for headphone testing. This advanced machine accurately measures the clamping force of headphones, simultaneously testing both left and right ears. With customizable settings for expansion stroke, rate, and test frequency, it ensures precise results every time. Designed for accuracy, with a maximum test force value exceeding 200 Newtons, it's the ultimate headphone tester for quality assurance.

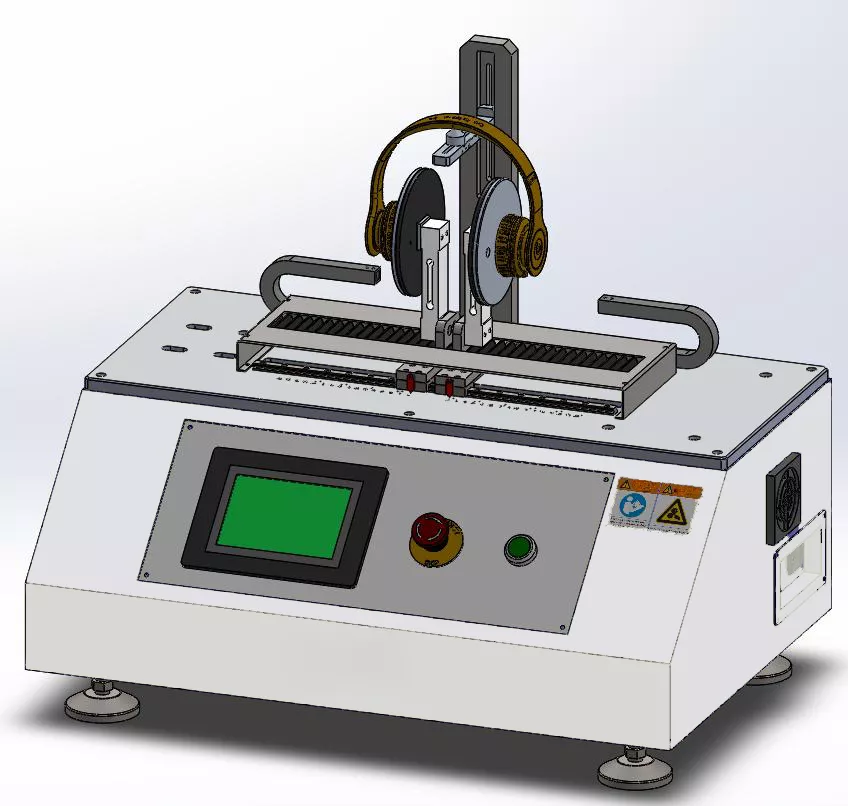

  • Support point lifting mechanism on headset
  • Support point on headset
  • Left and right earpiece guides
  • The left and right force sensors measure the
  • clamping force of the left and right ears
  • simultaneously
  • Japan THK precision guide rail
  • Touch screen
Headphone tester, Headphone testing



Headphone tester, Headphone testing

Headset Clamping Force Tester Features

This machine is ideal for testing the clamping (tightening) force of headphones. It can simultaneously test the clamping force of both the left and right ears. Here are the testing requirements:

  • Both ears are measured simultaneously and separately.
  • The expansion stroke of each ear ranges from 100 to 400 millimeters.
  • You can set the expansion rate from 0 to 500 millimeters per minute.
  • The number of tests can be set from 0 to 999999 times.
  • The initial distance between the left and right ears is 100 millimeters.
  • The force measurement accuracy is 0.01 Newtons.
  • The maximum test force value is equal to or greater than 200 Newtons.

Headset Clamping Force Tester Technical Specifications

Test stations1 pc
Maximum test clamping force50N
Force resolution 0.01N
Initial stroke 100mm
Expansion stroke100~300mm
Test speed 0~500mm/min
Number of tests 1~999999 times (can be set)
Machine sizeW750 * D500 * H700mm
Machine weight 55kg
Data exportUSB export
PowerAC220V 5A (110V available upon request)



Force resolution

Parts nameQuantityApplication
Touch screen
controller		1pcsFor test parameter setting and monitoring
PLC1pcsFor programming control
Analog module1pcsFor force test
Force acquisition
board 		1pcsFor force test
Servo motor driver1set For left and right expansion mobile drive
Synchronous
pulley		1pcsFor transmission
Precision linear
guide		2pcs For mobile orientation
Precision force
sensor		2pcs Clamp force test for left and right ears
Clamping force test
fixture		2setFor the installation of headsets
Main machine1set
