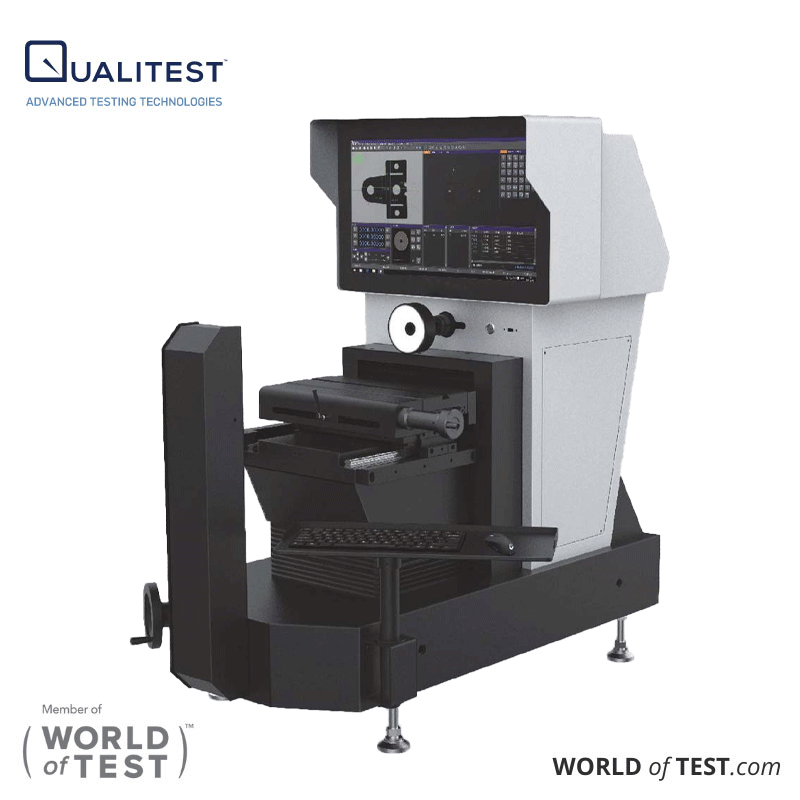

Horizontal Video Projector - QPH-3015

Horizontal Video Projector - QPH-3015: Profile Projector and Optical Comparator designed to meet your precision measurement needs. With features like a linear guide rail and precision screw drive for smooth operation, precision toothless rod for minimal error, and HD zoom lens with a digital camera for clear imaging, the QPH-3015 ensures accurate and distortion-free measurements. Equipped with advanced software systems and optional upgrades like contact probes and 3D measuring software, it offers enhanced control and versatility. Improve your process control and reduce material consumption with optional FexQMS measurement data analysis software. Experience the next level of precision measurement with the QPH-3015 Horizontal Video Projector.

Profile Projector, Optical Comparator

Horizontal Video Projector, Profile Projector, Optical ComparatorHorizontal Video Projector - QPH-3015: Profile Projector and Optical Comparator

High Accuracy, Excellent Quality, Long Using Life




Partial Display

Profile Projector, Optical ComparatorProfile Projector, Optical Comparator



Horizontal Video Projector - QPH-3015 Features

  • - The lifting system utilizes a linear guide rail and precision screw drive, providing smoother and more stable lift operation.
  • - Equipped with a precision toothless rod and a fast movement locking device, ensuring that return error remains within 2 micrometers.
  • - Incorporating a high-accuracy optical scale and a precision working stage, guaranteeing machine accuracy within 3 plus L divided by 200 micrometers.
  • - Features an HD zoom lens and HD color digital camera for clear, distortion-free images.
  • - Includes programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, enabling independent brightness control of each 4-ring 8-division.
  • - Usesa robust iMeasuring software system to enhance control quality.
  • - Offers optional imported contact probes and 3D measuring software, facilitating machine upgrade to a coordinate measuring machine.
  • - Provides optional FexQMS measurement data analysis and real-time monitoring software to improve process control and reduce material consumption.

Horizontal Video Projector - QPH-3015 Technical Specifications

CommodityHorizontal Video Projector - QPH-3015
Working Stage Travel (mm)355*125
X/Y-axis Travel (mm)200*120
Z axis (mm)110
Measurement Accuracy* (um)≤3+L/200(um)
Resolution (mm)0.0005mm
Camera1/2.9" High-Definition Digital Color Camera
Zoom Objective Lens **6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor)
Optical Magnification:0.6X~5.0X; Video Magnification:20X~170X
Illuminating System (Software Control)Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination
Contour: LED Parallel illumination
Working EnvironmentTemperature 20℃±2℃, Temperature change<1℃/Hr; Humidity 30%~80%RH; Vibration<0.02g's, ≤15Hz.
Measuring SoftwareiMeasuring
Operating SystemSupport Latest Windows Operating System
LanguageEnglish, other languages can be added
Power SupplyAC110V/60Hz; 220V/50Hz,600W
Dimension(L×W×H) (mm)1120*720*1100
Weight (Kg)165


Request
Quotation

Back to Main Page

Profile Projectors - Optical Comparators

Related Articles

Displaying 1 - 1 of 1

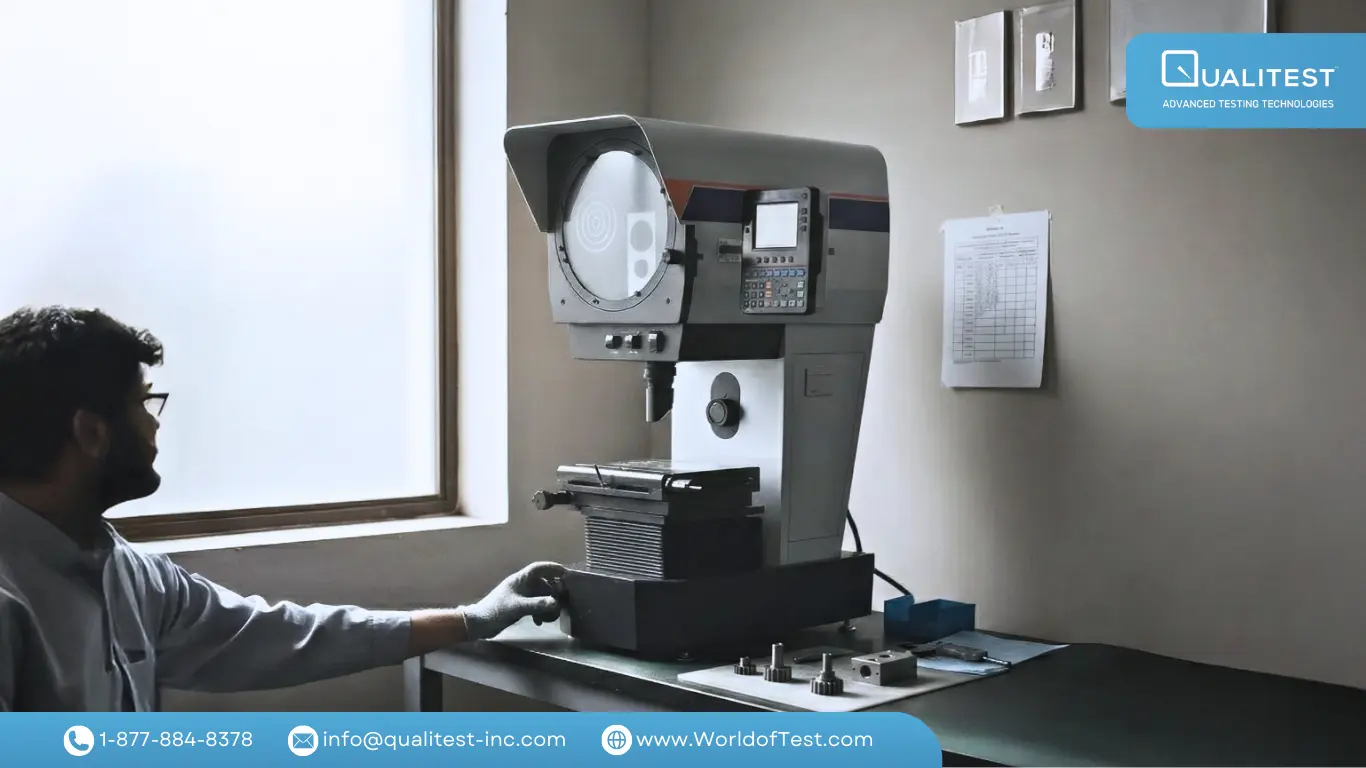

What Is an Optical Comparator? A Complete Guide
