Optical Principles and Hardware Architecture

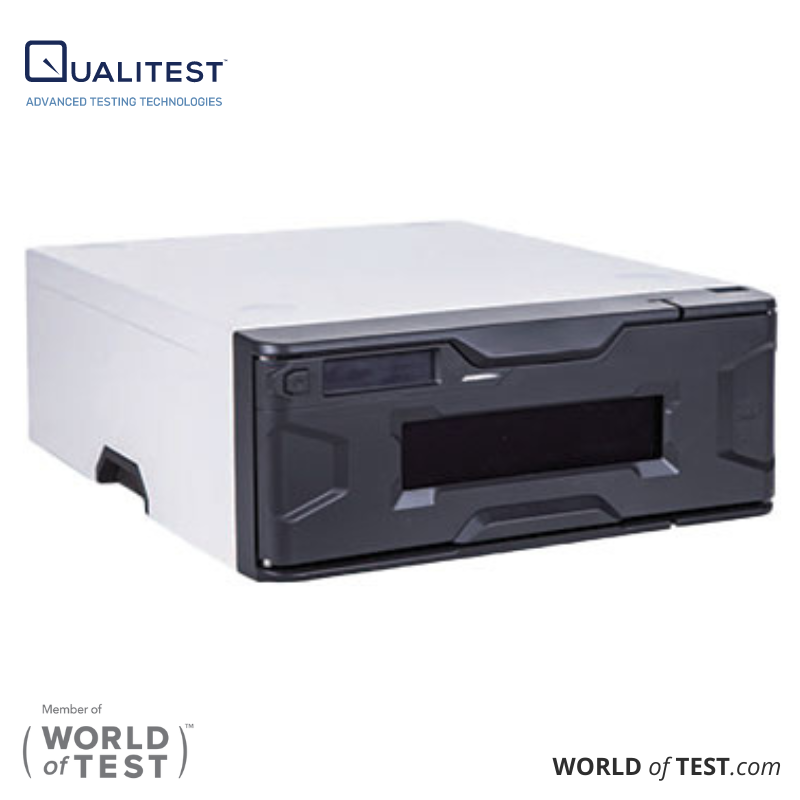

The HPLC Diode Array Detector in the QualiHPLC™-9100 Series operates by continuously acquiring full UV-Vis absorption spectra across a 190 to 800 nm range as eluate passes through the flow cell. Dual light sources, featuring a transmission-type Deuterium lamp for ultraviolet wavelengths and a Tungsten lamp for visible light, shine through the flow cell onto a diffraction grating.
[ Deuterium & Tungsten Lamps ] → [ Flow Cell ] → [ Variable Slit Grating ] → [ Photodiode Array ] → [ 3D Data Signal ]
Adjustable optical slits (1 nm, 2 nm, 4 nm, and 8 nm) control spectral resolution and light throughput before light strikes the array of miniature light-sensitive photodiodes. Because the detector contains no motorized mirrors or moving grating assemblies, it records three-dimensional chromatographic data simultaneously:
- Retention Time along the time axis
- Absorbance Intensity along the signal axis
- Wavelength Spectrum across the optical axis
Internal wavelength calibration utilizes integrated Holmium glass, verifying optical alignment to maintain wavelength accuracy within ±1 nm and wavelength precision within ±0.1 nm, with linear absorbance response exceeding 2.0 AU.
Key Analytical Advantages & Hardware Features
- 12-Channel Real-Time Acquisition: Track up to 12 distinct light wavelengths simultaneously with high-speed sampling rates up to 150 Hz, selecting the exact absorption maximum for every target molecule.
- Peak Purity Determination: Identify overlapping or co-eluting compounds by reviewing light spectra across the front, peak apex, and tail end of a chromatographic band directly inside the workstation.
- High-Sensitivity Mode: Achieves signal-to-noise performance comparable to traditional UVD (Ultraviolet Detectors) when analyzing low-concentration samples down to 1.0 x 10-7 g/mL naphthalene.
- Dual-Use Spectrophotometer Option: Equipped with an optional cuvette holder for rapid sample loading and direct spectral scanning without requiring a separate spectrophotometer.
- Built-in Holmium Glass Calibration: Maintains wavelength accuracy within ±1 nm and precision within ±0.1 nm, with linear response exceeding 2.0 AU.
Chromatographic Method Development and Spectral Analysis
Method development on an HPLC Diode Array Detector leverages multi-channel tracking and real-time spectral mapping to optimize separation conditions without requiring multiple sample injections.
1. 12-Channel Real-Time Acquisition
The detector supports simultaneous data collection across up to 12 distinct wavelengths in real time, with acquisition speeds reaching 150 Hz. This feature allows analysts to monitor different target compounds at their specific absorption maxima (such as 210 nm for organic acids, 254 nm for aromatic amines, 260 nm for pesticides, and 445 nm for carotenoids) during a single chromatographic run.
2. Peak Purity Determination
Spectral similarity algorithms evaluate light absorption spectra across the leading edge, apex, and trailing edge of a single chromatographic peak. If co-eluting impurities or overlapping degradants are present, the spectral profile shifts across the peak profile, confirming co-elution without secondary chromatographic runs.
3. Sensitivity and Resolution Adjustments
Method parameters can be configured depending on analytical priorities:
- High-Sensitivity Mode: Matches the signal-to-noise performance of traditional single-wavelength UV detectors, enabling quantitative detection of trace analytes down to 1.0 x 10-7 g/mL.
- High-Resolution Mode: Utilizes narrower slit settings (1 nm or 2 nm) to resolve fine spectral structures and identify closely related chemical structures.
4. Cuvette Spectrophotometer Functionality
An integrated cuvette holder allows rapid static sample scanning across the 190 to 800 nm range. Analysts can determine unknown absorption maxima and pre-screen sample solutions prior to running chromatographic separations.
Method Performance Specifications
To support method validation under ICH and FDA regulatory frameworks, the HPLC Diode Array Detector operates within defined physical and optical specifications:
| Operational Specification | Instrument Target Value | Method Development Significance |
|---|
| Light Source Configuration | Deuterium (transmission) + Tungsten | Complete UV-Vis coverage from 190 to 800 nm |
| Wavelength Accuracy | ±1 nm | Ensures consistent spectral library matching |
| Wavelength Precision | ±0.1 nm | Guarantees day-to-day retention time and peak ratio repeatability |
| Absorbance Linearity | > 2.0 AU (R² > 0.999) | Allows wide quantitative dynamic range without sample dilution |
| Selectable Slit Widths | 1 nm, 2 nm, 4 nm, 8 nm | Balances optical resolution against signal-to-noise ratio |
| Maximum Sampling Rate | Up to 150 Hz | Accurately reconstructs fast-eluting narrow chromatographic peaks |
| Wavelength Verification | Internal Holmium glass filter | Automated optical self-check during system startup |
