Los Angeles Abrasion Machine – LA Abrasion Tester

Los Angeles Abrasion Machine – LA Abrasion Tester
Parent Product
Abrasion Testers
Product Categories
Rock and Aggregates Testing Equipment
Application
Abrasion Testing
Standards
ASTM C131
CNR NO. 34
UNI 8520-19
UNE 83 114
NF P18-573
EN 1097-2

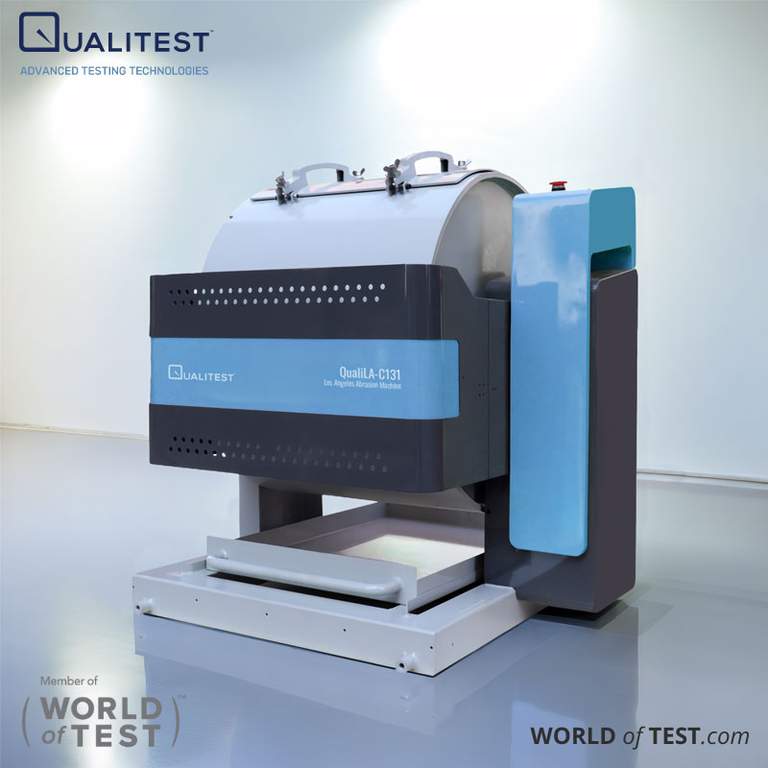

Los Angeles Abrasion Machine – LA Abrasion Tester - QualiLA-C131

Los Angeles Abrasion Machine – LA Abrasion Tester - QualiLA-C131 features a rolled steel drum with a 12mm wall thickness, an internal diameter of 710mm, and a length of 510mm. The drum rotates at a controlled speed of 31 to 33 RPM, powered by an electric motor with a speed reducer. An automatic counter is included, allowing users to set the desired number of drum revolutions. The machine's exterior has a durable powder-coated finish.

Los Angeles Abrasion Machine – LA Abrasion Tester - QualiLA-C131 Los Angeles Abrasion Machine – LA Abrasion Tester - QualiLA-C131

Accessories

  • EN 1097-2
    • Set of 12 abrasive charges: 1.7/8"
  • Spare parts (Need to be ordered separately)
    • Abrasive charges: Set of 12 abrasive charges: 1.13/16” (7 pcs) and 1.7/8” (5 pcs).
    • Noise reduction and safety cabinet 110kg
    • Steel tray for specimen unloading
    • Protect cover

Los Angeles Abrasion Machine – LA Abrasion Tester - QualiLA-C131 Features

  • Digital Counter: Features an automatic digital counter that accurately displays the drum's number of revolutions.
  • Durable Steel Drum: Constructed with a heavy steel cylinder drum, featuring a 12mm wall thickness, and mounted on a robust base frame.
  • Convenient Specimen Handling: Comes with a steel tray designed for easy unloading of specimens.
  • Enhanced Safety and Noise Control: Includes a full-length opening equipped with a protective cover, functioning as both a noise reduction and safety cabinet.

Los Angeles Abrasion Machine – LA Abrasion Tester - QualiLA-C131 Technical Specifications

Specification Details
Internal dimension 710 mm × 510 mm (±5 mm)
Rotate speed 31-33 r.p.m
Outside dimension 942 × 959 × 948 mm
Abrasive charges Set of 12 abrasive charges: 1.13/16” (7 pcs) and 1.7/8” (5 pcs). (ASTM, C.N.R)
Abrasive charges (options) Set of 12 abrasive charges: 1.7/8” (EN)
Voltage AC220V 50HZ/60HZ 750W (110V is also available)
Weight 340 kg
