| Model | QualiCLM-2000 |
|---|
| Standard Compliance | JJG 245, GB/T 7922, GB/T 5700, GB/T 5702, GB/T 24824, GB/T 36979, ANSI C78 377, GB 50034, GB/T 15609 |
|---|

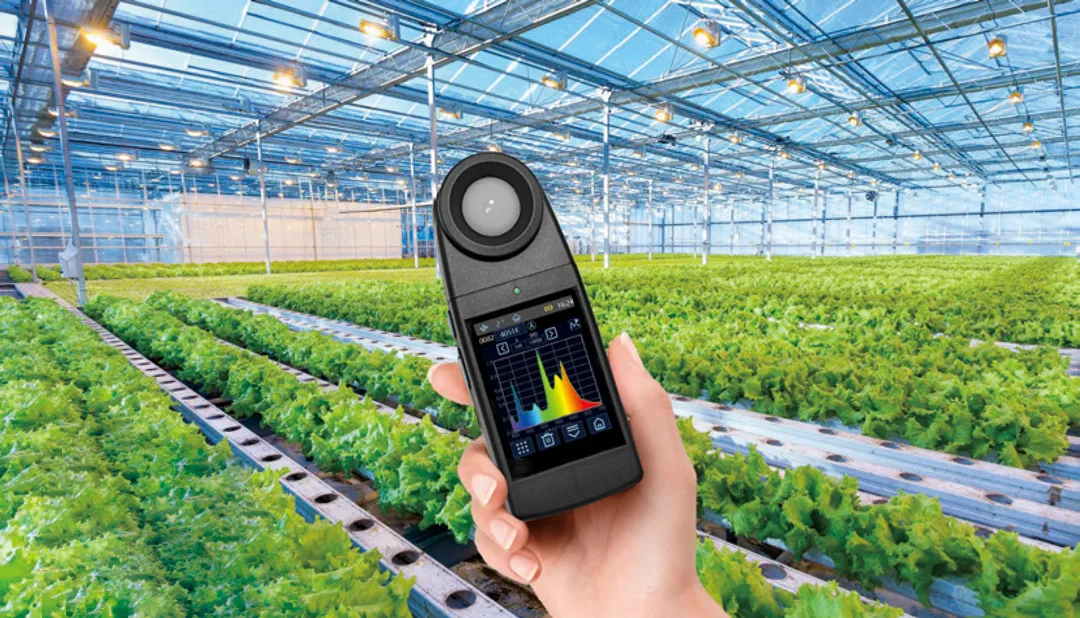

| Features | - Measures and evaluates parameters such as radiation spectrum, illuminance, color temperature, chromaticity coordinates, and color rendering index (CRI) for LED lighting and various lighting modules.
- Ideal for on-site measurement and assessment of lighting environments in locations such as libraries, shopping malls, schools, factories, and street lighting projects.
- Analyzes chromaticity coordinates, color gamut, uniformity, CRI, and radiation spectrum performance of TVs, monitors, and projectors.
- Detects light source performance and white balance parameters in camera products.
- Evaluates the performance of eye-protection lamps and outdoor lighting conditions.

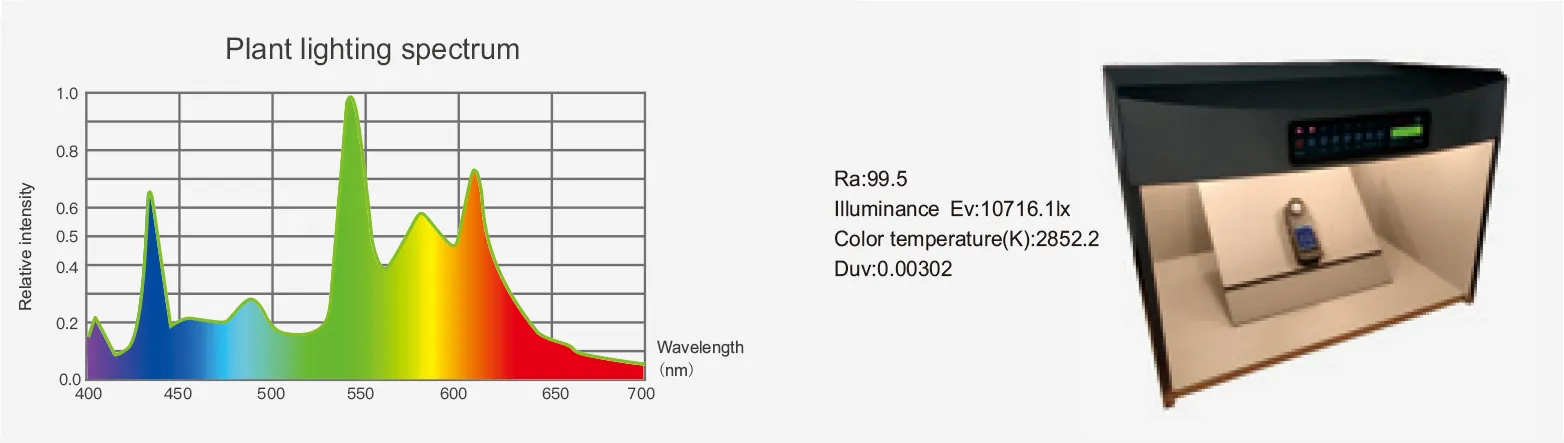

- Assesses uniformity, illuminance, CRI, color temperature, and spectral consistency of lighting sources in standard light boxes.
- Features a 400–700 nm spectral test range with multiple functional parameters, simple operation, stable performance, and excellent cost efficiency.

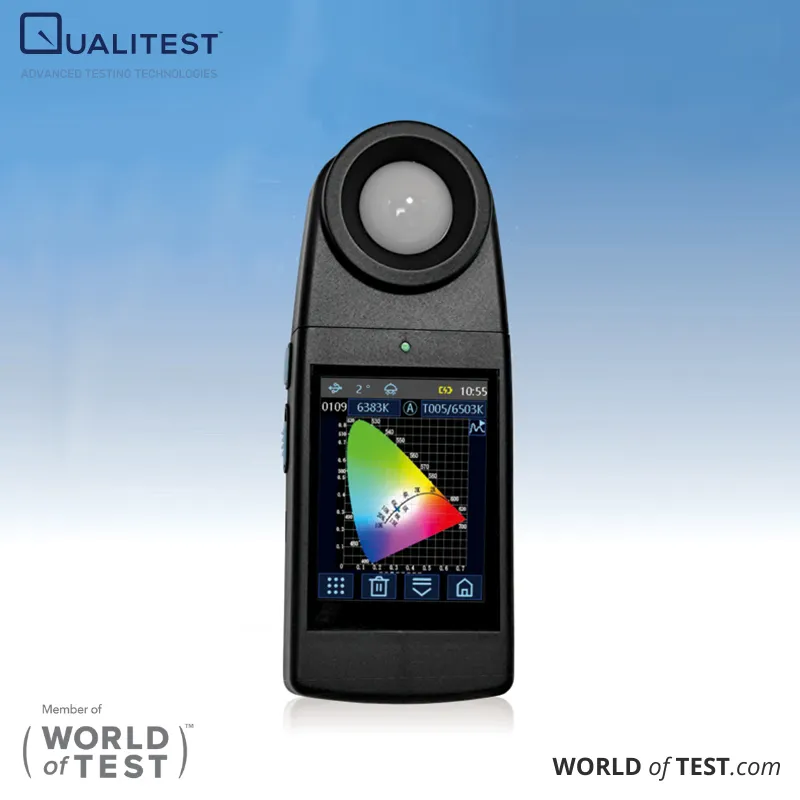

- Compact and portable design with a detachable measurement probe, Type-C and Bluetooth interfaces, and wide application versatility.
- Includes built-in spectra for standard light sources such as D65/A/C/5000K, allowing convenient comparison between test and reference light sources.
- Offers multiple measurement modes—single, average, continuous, and flash—suitable for various testing scenarios.
|
|---|
| Wavelength Range | 400 - 700nm, 910nm (Half - width 100nm) |
|---|
| Wavelength Interval | 1nm |
|---|
| Spectral Splitting Method | Multi - channel filter spectral splitting |
|---|
| Measurement Range | 1 - 200000 lx |
|---|
| Measurement Accuracy (Standard Light Source A) | Ev: ±5% ± 1 digit, xy: ±0.002 (10 - 200000 lx), xy: ±0.0025 (5 - 10 lx) |
|---|
| Repeatability (Standard Light Source A | Ev: 0.5% ± 1 digit, xy: 0.0001 (500 - 200000 lx), xy: 0.002 (100 - 500 lx), xy: 0.003 (20 - 100 lx), xy: 0.005 (5 - 20 lx) |
|---|
| Cosine Response Characteristic | Ev: within 5% |
|---|
| Measurement Modes | Automatic Mode, Flash Mode, Continuous Mode, Average Mode |
|---|
| Measurement Time | Automatic Mode: 0.1 - 10 seconds |
|---|
| Observer Angle | 2° (CIE1931) |
|---|
| Color Spaces | Spectrum, CIE XYZ, Ev xy, Ev u'v' |
|---|
| Functional Parameters | - Illuminance (Ev), Correlated Color Temperature (CCT, in K), Color Rendering Index (CRI); CIE31 x,y; CIE76 u',v'; CIE X,Y,Z; Blackbody Deviation (Duv), Color Difference (SDCM), Scotopic/Photopic Ratio (S/P), White Balance; Peak Wavelength, Central Wavelength, Centroid Wavelength, Half - Width; Dominant Wavelength (λd), Excitation Purity (PE), Color Purity (PC); Radiance (Ee, Eb, Eg, Er, Erb), R(%), G(%), B(%)
- Display Color Gamut Area, Color Gamut Area Coverage, Chromaticity Difference (Δcuv); 5/9 - point Uniformity
- CRI Color Rendering Index (Ra)

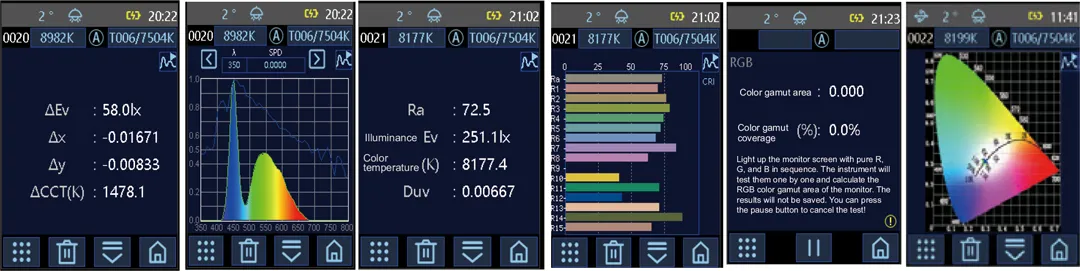

- CIE31 Chromaticity Diagram, CIE76 UCS Diagram, CRI Histogram, CRI Radar Chart, MacAdam Ellipse Diagram for Color Tolerance, White Balance Diagram
|
|---|
| Storage | 5000 samples (including reference color temperature records D65/A/C/5000K) |
|---|
| Dimensions | Length x Width x Height = 154 x 62 x 37mm |
|---|
| Weight | 195g |
|---|
| Voltage | Lithium - ion battery, 3.7V, 4000mAh (8000 times within 24 hours when fully charged) |
|---|
| Display | TFT true - color 2.8 - inch capacitive touchscreen |
|---|
| Interface | Type C USB, Bluetooth |
|---|
| Languages | English and other language |
|---|
| Operating Temperature | -10 - 40°C (Relative humidity below 85% / No condensation) |
|---|
| Storage Temperature | -20 - 50°C (Relative humidity below 85% / No condensation) |
|---|
| Standard Accessories | Power adapter, USB data cable, Instruction manual, Color management software (downloadable), Protective cover, Wrist strap, Cleaning cloth |
|---|
