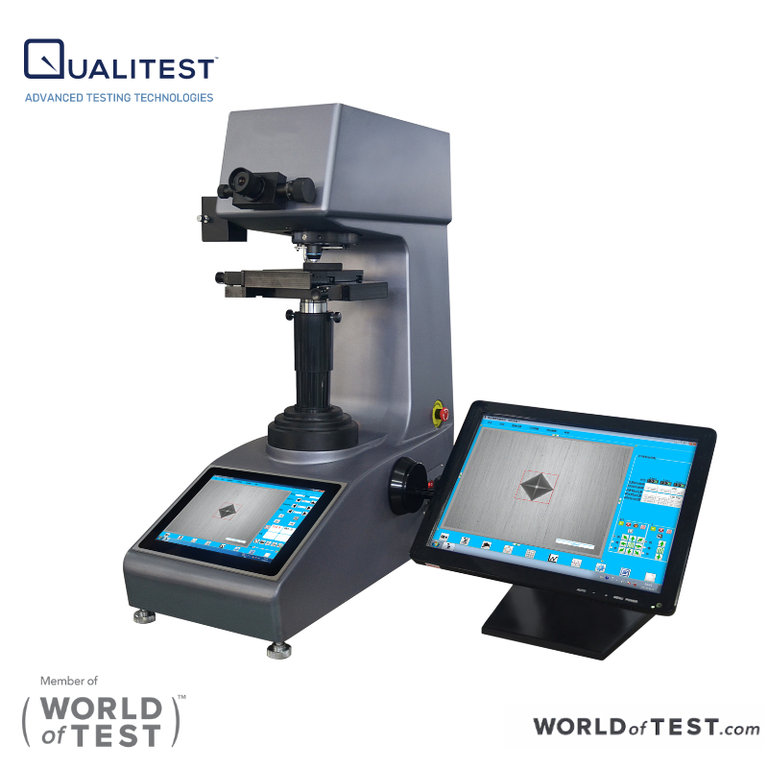

Macro Vickers Hardness Tester QualiVick 10/30/50 Auto - Fully Automatic Series
Parent Product
Vickers Hardness Tester
Standards
ISO 6507
ASTM E92
JIS Z2244
vickers hardness tester, automatic vickers hardness tester, vickers tester

The QualiVick 10/30/50 Fully Automatic Series represents a cutting-edge advancement in Vickers hardness testing. These automatic Macro Vickers hardness tester feature an integrated design with a panel computer operating on the Windows 7 system, combining the functionality of a hardness tester and a computer. The CCD image acquisition system allows for direct display of indentation images on the touchscreen, ensuring efficient and precise hardness value retrieval. The instrument eliminates traditional eyepiece measurement methods, reducing visual strain and fatigue. With a user-friendly touchscreen interface, it offers quick parameter selection and clear displays.

The QualiVick 10/30/50 series supports two languages (English and Chinese) and includes USB, VGA, and LAN interfaces for convenient data transfer and printing. Notably, it automatically saves measurement data, generates hardness-depth curves, and saves results in WORD or EXCEL documents. Featuring a motorized X-Y test table, automatic focusing, and measuring capabilities, it achieves full automation in Vickers hardness testing.

This series is versatile, and suitable for testing the hardness of various materials, including ferrous and non-ferrous metals, IC thin sections, coatings, ply metals, glass, ceramics, agate, precious stones, and thin plastic sections. Its advanced capabilities make it particularly effective in hardness testing on carbonized layers and quench-hardened layers. The QualiVick 10/30/50 Fully Automatic Series is a state-of-the-art solution for accurate and efficient Vickers hardness measurements.

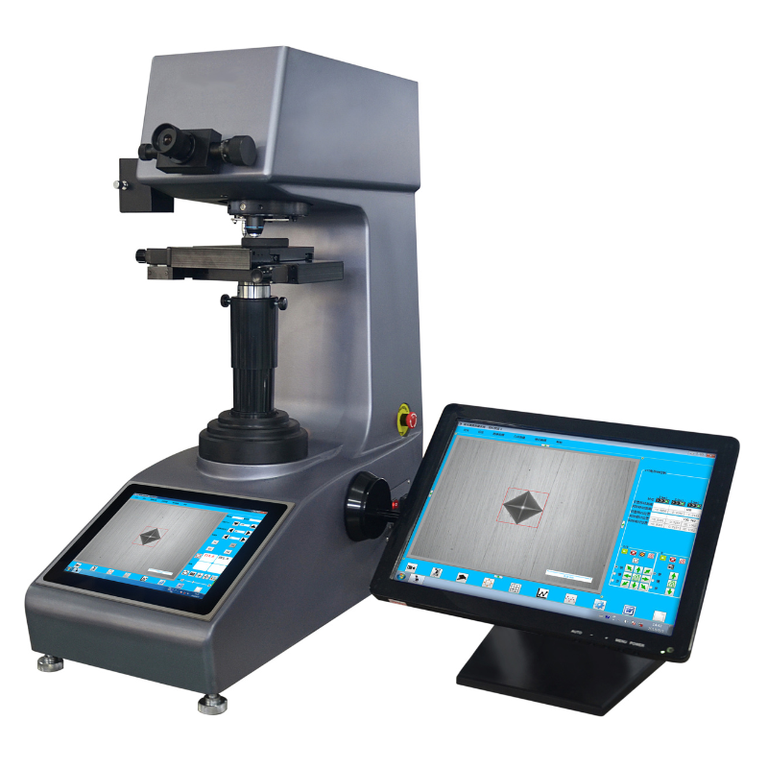

Macro Vickers Hardness Tester QualiVick 10/30/50 Auto - Fully Automatic Series

vickers hardness tester, automatic vickers hardness tester, vickers tester

Main Function:

This instrument represents a new generation of automatic Macro Vickers hardness tester. It features an integrated design combining the hardness tester and a panel computer, operating on the Windows 7 operating system with full computer functionality.

Equipped with a CCD image acquisition system, it showcases the indentation image directly on the touch screen and automatically calculates the Vickers hardness value. Departing from the traditional method of measuring diagonal length through an eyepiece, it eliminates the strain and visual fatigue caused by eyepiece light sources, safeguarding the operator's eyesight. This marks a significant innovation in Vickers hardness testing.

All testing parameters can be selected on the panel computer, providing quick and convenient operation with a clear and intuitive display via the touchscreen. The CCD image acquisition system ensures clear imagery and hardness value retrieval with a simple touch on the screen.

Automatic recognition and shifting between the objective and the indenter allow for the automatic determination of Vickers hardness values. Additionally, it incorporates a hardness scale conversion function.

The system supports two languages: English and Chinese. Its USB, VGA, and LAN interfaces enable hardness measurements to be printed through the USB interface. It also automatically saves measurement data, generates hardness-depth curves, and saves them as WORD or EXCEL documents.

Featuring a motorized X-Y test table, automatic focusing, and automatic measuring, it achieves full automation in Vickers hardness testing.

Application Range:

This instrument is suitable for testing the hardness of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals, as well as glass, ceramics, agate, precious stones, and thin plastic sections. It excels in hardness testing on the depth and trapezium of carbonized layers and quench-hardened layers.

Model

QualiVick 10/30/50 Auto

Test Force

Kgf, N

QualiVick-10 Auto

0.2kgf, 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf
1.96N, 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N

QualiVick-30 Auto

0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf
2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N

QualiVick-50 Auto

0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N

Test Mode

HV/HK

Test Range

1HV~2967HV

Loading Method

Automatic (Loading/Dwell/Unloading)

Turret

Automatic Shifting

Computer

CPU: Intel I5，Memory: 8G，SSD: 240G

CCD Pixel

1.30 Million

Conversion Scale

HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW

Hardness Reading

Indentation Display and Automatic Measuring on Touch Screen

Data Output

WORD or EXCEL Report with Curve Chart

Objective

10×，20×，40×

Effective Field of View

10×：680μm，20×：340μm，40×：170μm

Min. Measuring Unit

10×：0.1μm，20×：0.05μm，40×：0.025μm

Dwell Time

0~60s

Light Source

Halogen Lamp

Motorized X-Y Test Table

Size: 110×110mm; Travel: 50×50mm; Resolution: 0.001mm

Max. Sample Height

170mm

Throat Depth

130mm

Power Supply

AC220V，50Hz
(110V is also available. Please specify when ordering)

Execute Standard

ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2

Dimension

560×335×675mm，

Packing Dimension: 650×380×960mm

Weight

Net Weight: 52kg, Gross Weight: 67kg
Net Weight: 114.64lbs, Gross Weight: 147.71lbs

Standard Configuration

Main Body, External Touch Screen, 10× Eyepiece, 10×、20×、40× Objective, Diamond Vickers Indenter, Motorized X-Y Test Table, Hardness Block 700~800 HV1, Hardness Block 400~500 HV5, Halogen Lamp 12V、20W, Mouse
