A prepainted coil leaves the line in minutes, and an appliance panel reaches assembly within hours. If the bake fell short, nobody notices until a customer wipes the finish with cleaner and the paint softens. Under-cured coatings rarely reveal themselves on the plant floor.
An MEK solvent rub tester in Mexico gives coating labs a fast, numerical answer on cure before product ships. Qualitest supplies the QualiMEK solvent rub resistance tester, designed in accordance with ASTM D4752 and NCCA 11-18, to replace inconsistent hand rubbing with controlled strokes.
Three Mexican Supply Chains That Depend on the Rub Count
Mexico's coatings base is broad and regional. Data México lists 644 paint, coating, and adhesive manufacturing establishments in the 2025 DENUE directory, led by Estado de México, Jalisco, and Guanajuato. Their most demanding customers, however, cluster in three supply chains.
Coil-Coated Steel in Nuevo León
Ternium runs a painting line at its Pesquería industrial center with 120,000 tonnes of annual capacity. The line supplies prepainted galvanized steel for appliances, air conditioners, and electrical cabinets. In 2026, Ternium also started a new galvanizing line and cold-rolling mill at the same site.
Coil lines cure paint in seconds, so the coil coating industry needed a quick cure check. The National Coil Coating Association codified the solvent rub method as NCCA 11-18 in 1980. Buyers may also see it cited as NCCA Technical Bulletin 4.2.11.
Appliance Finishing in the Northeast Corridor
Mexico exported $9.46 billion in home appliances to the United States in 2024, second only to China. Investment continues: Mabe committed $668 million to its 15 Mexican factories through 2027, and BSH opened a $260 million refrigerator plant in Salinas Victoria.
Protective Coatings for Energy Infrastructure
PEMEX surface installations rely on anticorrosion systems specified under NRF-053-PEMEX-2014, which classifies exposure environments using ISO 12944-2. Several systems supplied under that reference start with a self-curing inorganic zinc-rich primer, the primer class ASTM D4752 evaluates.
The table below maps each supply chain to its typical coating and the rub method its labs usually follow.
| Supply Chain | Typical Coating | Common Rub Test Reference |
|---|
| Coil-coated steel | Baked polyester and fluoropolymer topcoats | NCCA 11-18, ASTM D7835 |
| Appliance finishing | Powder and baked liquid coatings | ASTM D5402 or customer specification |
| Energy infrastructure | Ethyl silicate zinc-rich primers | ASTM D4752 |
ASTM D5402 and ASTM D7835 appear here as market references. Therefore, confirm stroke and solvent parameters against your customer's specification before testing.
Humidity and the Topcoating Window on the Gulf Coast
ASTM D4752 exists because ethyl silicate zinc-rich primers cure by reacting with moisture. As relative humidity and temperature change, cure speed changes with them. Meanwhile, the primer still needs a minimum degree of cure before topcoating.
That creates a practical problem across Mexico. A primer applied in humid coastal Tabasco or Veracruz can cure at a different pace than the same product applied in a dry Coahuila shop during winter. Fixed recoat times ignore that difference.
A rub count does not. Fabrication shops can coat test panels alongside production steel, then run those panels on a benchtop tester. As a result, contractors document topcoat release with a measured value instead of a calendar estimate.

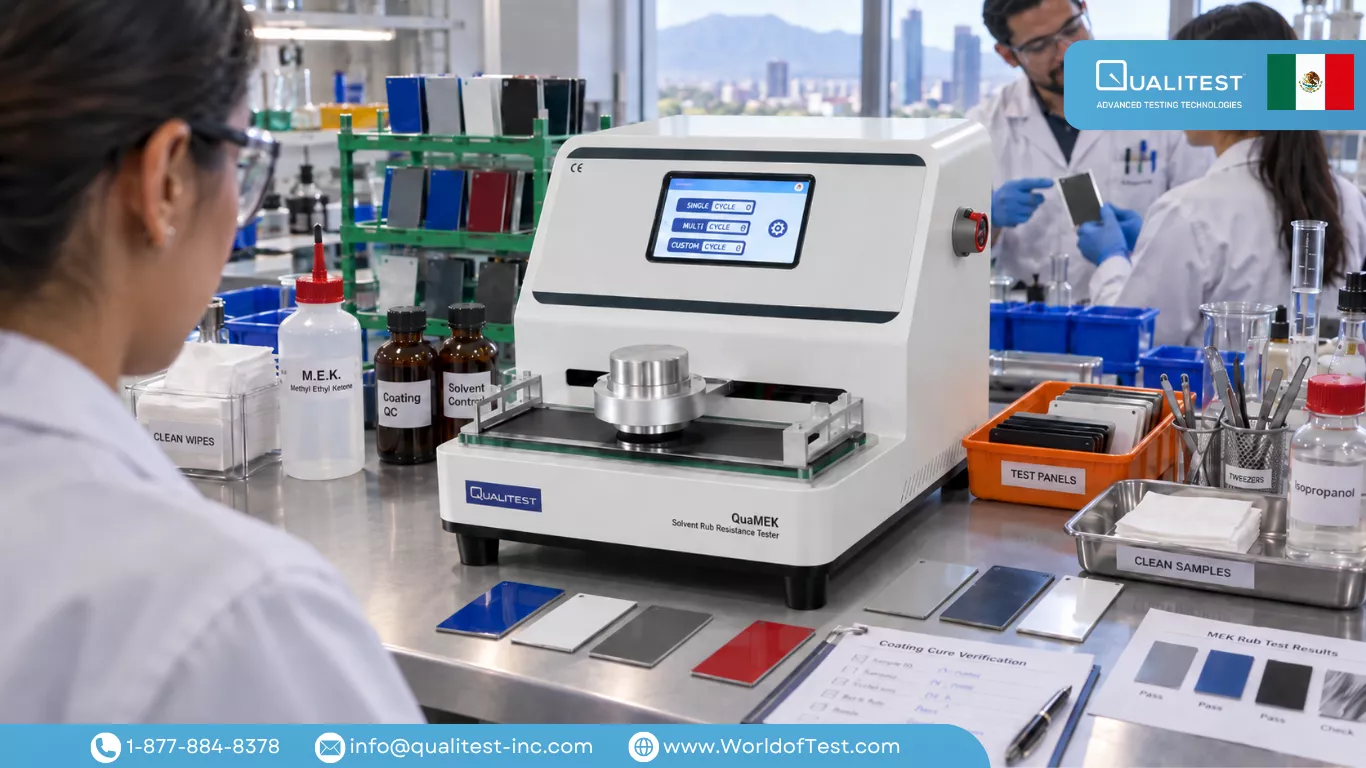

How the QualiMEK Standardizes Rub Testing Between Shifts
Hand rubbing drifts. Operators tire, press harder, or slow down after 100 strokes, so two shifts can report different counts for the same panel. ASTM D7835 notes that a mechanical rubbing machine removes human fatigue from the result.
The QualiMEK controls the parameters that decide repeatability:
- Rubbing load: 1,000 ± 10 g, matching the ASTM D4752 weight
- Speed: stepless regulation from 5 to 95 cycles per minute
- Rubbing head: 14 mm diameter, about 1.5 cm² of contact area
- Stroke distance: 120 mm as standard, with custom lengths available
- Counter: 0 to 99,999 double rubs, with permanent parameter storage
A microcomputer controller and LCD let the operator set speed, cycle count, and stroke once, then recall them for every batch. Engineers can review the full QualiMEK specifications before matching settings to a customer method.
Choosing an MEK Solvent Rub Tester in Mexico: What to Confirm
Selection starts with the method your customer writes into the purchase order, not the catalog. Before requesting a quote, confirm these points:
- Governing method: ASTM D4752 fixes load and cloth for zinc-rich primers, while ASTM D5402 leaves solvent and rub count to the coating specification.
- Rub ceiling: highly crosslinked finishes can survive hundreds of double rubs, so confirm the counter covers your maximum.
- Electrical fit: the product page lists a 110 to 220 V, 50/60 Hz range, so confirm the configuration for your plant power when quoting.
- Accreditation: labs holding ema accreditation should plan periodic checks of the rubbing weight on a calibrated balance.
- Ventilation: MEK vapor counts as a workplace chemical agent under NOM-010-STPS-2014, so place the bench near fume extraction.
Build Rub Counts Your Customers Will Accept
In Mexico, a rub count rarely stays inside one lab. A coil supplier's result travels to an appliance maker, and a primer applicator's result enters a PEMEX inspection file. Those numbers only hold up when both sides test the same way.
Qualitest helps coating teams configure an MEK solvent rub tester in Mexico around the stroke speed, stroke distance, and cloth setup their customer specifies. That alignment lets supplier and customer labs compare double rub results. The MEK tester then stores those settings, so every shift recalls the same method.
Contact Qualitest with your coating type, governing method, and expected rub range. Our team will recommend a QualiMEK setup that fits your Mexican plant, lab, or fabrication shop.
