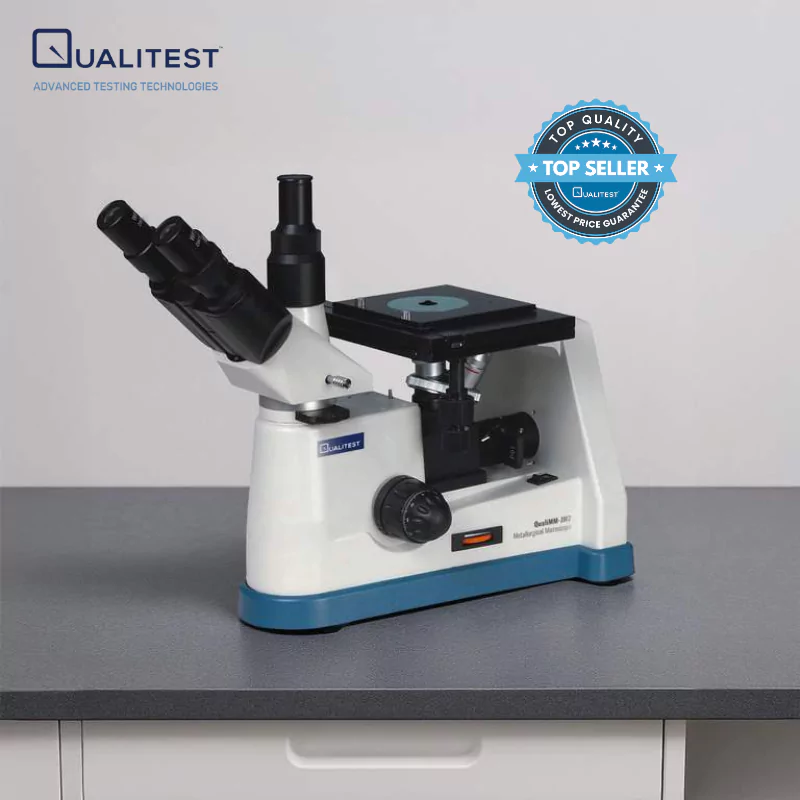

Metallurgical Microscope QualiMM™ JM2

QualiMM™ JM2 Metallurgical Microscope Key Features

• Advanced Trinocular Viewing Head
  Equipped with a compensation-free trinocular head inclined at 45°, providing comfortable and efficient viewing and imaging.
• High-Quality Eyepieces
  Includes WF10×/18mm eyepieces, with an optional version featuring a 0.1mm crosshair reticule for measurement and calibration tasks.
• Plan Metallurgical Objectives
  Standard DIN Plan objectives offer sharp, flat-field imaging across magnifications:
  • 4× (0.1, 25mm W.D.)
  • 10× (0.25, 11mm W.D.)
  • 20× (0.4, 9mm W.D.)
  • 40× (0.6, 3.8mm W.D.)
    Optional objectives up to 100× available.
• Precision Stage and Focusing
  Double-layer mechanical stage (172×142mm) with 30×30mm movement range and coaxial coarse/fine focus knobs (fine adjustment: 0.002mm), ensuring smooth and accurate specimen control.
• Versatile Illumination System
  Integrated 12V/20W halogen lamp with adjustable brightness, aperture and field diaphragms. Includes green, blue, and yellow insert filters for contrast enhancement.
• Integrated Polarizing System
  Features a 360° rotatable analyzer and removable polarizer/analyzer for advanced contrast techniques in material analysis.
• Optional Add-ons for Enhanced Functionality
  • Metallurgical image analysis software
  • CMOS digital eyepiece cameras (1.3MP to 5.0MP)
  • Photography and CCD adapters
  • Simple darkfield kit
  • High-resolution CCD camera (520 TV lines)
