Reflected-Light Epi-Illumination Mechanics
Inspecting opaque metal alloy specimens requires reflected-light optics (epi-illumination) rather than transmitted light used in biological scopes. Because solid metals block light, high-intensity light beams travel directly through objective lenses, bounce off the polished metal face, and return to the optics with crisp visual clarity.
Total visual magnification gets calculated by multiplying the objective lens rating, the eyepiece visual scale, and the internal optical tube factor:
Total Visual Magnification = Objective Lens Rating × Eyepiece Scale × Tube Factor
Qualitest optical instruments offer visual ranges spanning 40× up to 1000× magnification. Digital imaging setups measure true visual scale by aligning calibrated stage micrometers directly beside physical gauge blocks at a standard twenty-five centimeter reference distance.
Industrial labs choose between two core mechanical configurations:
- Upright Metallurgical Microscopes: Platforms like the QualiMM™ M2, QualiMM™ JM2 (featuring 0.002 mm fine-focus adjustment), and QM900 inspect polished sample tops using precision mechanical stages (such as 180 × 155 mm or 172 × 142 mm work surfaces).

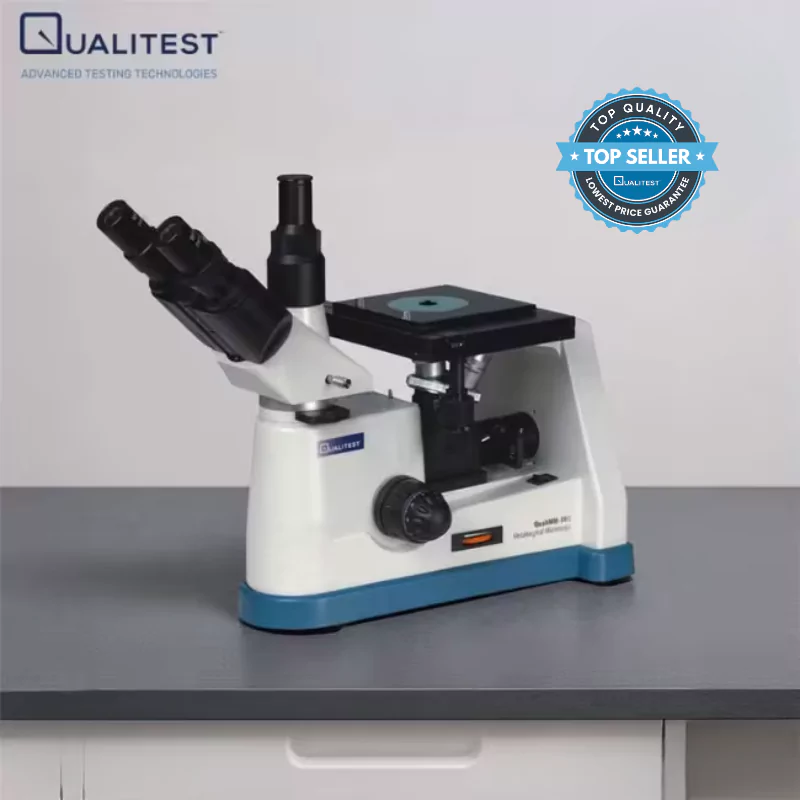

- Inverted Metallurgical Microscopes: Heavy-duty platforms like the QIM900, QualiMM™ 6A, and QualiMM™ 2000 Series mount specimens upside-down on expansive stage plates (up to 340 × 230 mm on the QIM900, which supports heavy industrial components weighing up to 30 kg).
Advanced platforms feature our proprietary NIS45 Infinite Optical System (equipped on the QM900, QIM900, and QX1000). This projects parallel light paths inside the housing, keeping image field borders flat while allowing technical teams to slot in DIC prisms or polarizing components without creating optical blur.
Four Illumination Modes & Contrast Methods
To reveal hidden microstructural details across complex alloys, Qualitest scopes utilize specialized nosepiece turrets (such as quintuple or sextuplet nosepieces on the QualiMM™ 41 and QM900) to shift between four reflected-light illumination methods:
| Lighting Mode | How Light Rays Travel | Ideal Material Inspection Job | Model Integration |
|---|
| Bright-Field | Light shines straight down; flat surfaces bounce light right back into the lens (appearing bright), while angled features scatter light away (appearing dark). | Checking primary alloy phases and identifying boundary lines between individual grains. | QualiMM™ M2 / JM2 |
| Dark-Field | Light hits from steep outer angles; mirror-smooth surface zones reflect light away (appearing dark), while tiny surface bumps scatter light straight back into the lens. | Identifying microscopic surface cracks, open pores, and non-metallic inclusions. | QualiMM™ 41 / QM900 |
| Polarized Light | Filtered light passes through twin polarizing plates set at 90-degree angles; anisotropic crystal structures shift the light path to reveal vivid color contrast. | Inspecting grain arrangements in directional metals like titanium or zirconium. | QualiMM™ 6A / JM2 |
| Differential Interference Contrast (DIC / Nomarski) | Twin-split light waves generate subtle shadow contrast across minute height variations, building a realistic three-dimensional surface height profile. | Viewing micro-topography, subtle chemical etch steps, and thin coating layers. | QX1000 / QIM900 |
Standard Specimen Preparation Procedure
Viewing authentic microstructures under a reflected-light microscope requires a disciplined four-step preparation method: slicing, encasing, sanding, buffing, and chemical treating to prevent artificial surface marks.
- Cool-Slicing (Sectioning): Extract a representative sample using an abrasive cutting wheel (like our QualiCut series). Flood the cut zone with liquid coolant to prevent heat damage (heat-sensitive alloy testers know exactly how critical this is!).
- Encasing (Mounting): Encapsulate raw metal specimens inside solid resin cylinders (using our QualiMount series). This provides a secure grip for handling and protects outer specimen edges from rounding off during buffing.
- Progressive Sanding & Buffing: Work through increasingly fine abrasive papers (starting coarse and moving down to fine silicon carbide sheets) to smooth out deep cutting marks. Finish with soft polishing cloths soaked in fine diamond suspension until the sample face turns into a mirror-bright reflective surface.
- Chemical Etching: Treat the polished face with mild chemical reagents to eat away at grain boundary lines faster than primary metal phases. That slight chemical reaction creates satisfyingly spot-on optical contrast under reflected illumination.
Quantitative Microstructural Analysis & Camera Software
Beyond qualitative visual inspection, reflected-light microscopes measure exact volume fractions, average grain sizes, and constituent spacing using standardized count routines. Integrated camera systems combined with MaterialQ+™ Metallurgical Image Analysis Software or our QX1000 Software Suite replace slow manual counting with automated digital measurement:
- Automated Grain Sizing (ASTM E112 / ISO 643): Instant calculation of average grain diameters and distribution curves across polished steel or aluminum samples.
- Phase Volume Fraction (ASTM E562): Automated percentage counts comparing ferrite, pearlite, austenite, or martensite constituent phases.
- Inclusion Rating (ASTM E45): Automated classification and sorting of non-metallic sulfides, oxides, and silicates.
- Advanced Image Capture: Multi-focus z-stacking, High Dynamic Range (HDR) capture, and large-area image stitching (standard on QX1000 systems with 1 μm fine-tuning precision).
