Metallurgical Microscope QualiMM-M2

Metallurgical Microscope QualiMM™ M2
Parent Product
Metallurgical Microscope
Metallurgical Microscope QualiMM-M2

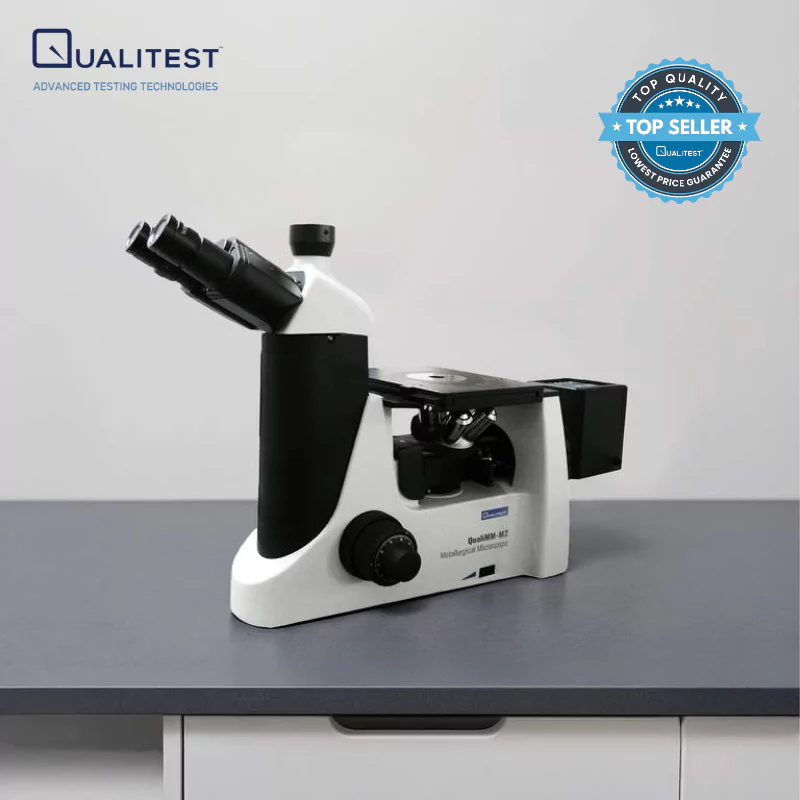

QualiMM™ M2 Metallurgical Microscope

Metallurgical Microscope QualiMM™ M2 is a professional-grade metallurgical microscope designed for precision analysis in materials science, quality control, and industrial inspection. Featuring a durable frame, high-performance optics, and ergonomic design, the QualiMM™ M2 delivers outstanding clarity, accuracy, and usability.

Metallurgical Microscope QualiMM-M2Metallurgical Microscope QualiMM-M2

Included Accessories

  • Drop specimen holder (φ110 mm)
  • Standard specimen holder
  • Osram 12V 50W halogen lamp
  • Electrical power unit and fuses
  • Polarizing components and optical filters

Optional Accessories (Available Separately)

  • Additional eyepieces (WF10X/22mm, reticule variants)
  • C-mount adapters (0.25X / 0.5X / 0.65X / 1X)
  • 100X oil immersion objective
  • Metallurgical micrometer (1/100 mm)

QualiMM™ M2 Metallurgical Microscope Key Features

Trinocular Viewing Head
Comfortable 30° inclined viewing with adjustable interpupillary distance (52–75 mm). The trinocular port supports camera integration for digital imaging and documentation.

High-Eyepoint Widefield Eyepieces

  • Dual WF10X/20mm plan eyepieces with 21 mm high eye-point for relaxed viewing
  • One WF10X/18mm reticule eyepiece for measurement applications

Infinity Plan Achromatic Objectives
Includes long working distance objectives:

  • 10X
  • 20X (spring-loaded)
  • 50X (spring-loaded)
  • 80X (spring-loaded)
    Delivers flat, distortion-free images across the entire field.

Precision Mechanical Stage

  • Stage size: 180 mm x 155 mm
  • Movement range: 80 mm x 50 mm
  • Low-position X/Y coaxial knobs for smooth, precise control

Powerful Halogen Illumination

  • 100W halogen lamp house with reflected illumination
  • Integrated polarizer and analyzer for enhanced material contrast
  • Includes blue, yellow, and green filters for visual optimization

Quintuple Nosepiece
Supports quick switching between five objectives for seamless workflow.

QualiMM™ M2 Metallurgical Microscope Technical Specifications

Order No.SpecificationQualiMM™ M2
QualiMM™ M2Microscope Frame●
MS3Binocular Tube, Interpupillary distance 52-75mm, 30° inclined diopter adjustable○
MT3Trinocular Tube, Interpupillary distance 52-75mm, 30° inclined diopter adjustable●
E1020PBWF10X/20mm Plan Eyepiece, High eye-point up to 21mm●●
E1018RAWF10X/18mm Reticule Eyepiece, High eye-point up to 21mm●
MS2Binocular Tube, Interpupillary distance 52-75mm, 30° inclined diopter adjustable (For WF10X/22mm eyepieces)○
MT2Trinocular Tube, Interpupillary distance 52-75mm, 30° inclined diopter adjustable (For WF10X/22mm eyepieces)○
E1020PAWF10X/20mm Plan Eyepiece, High eye-point up to 21mm○○
E1022PCWF10X/22mm Plan Eyepiece, High eye-point up to 21mm○○
E1020RAWF10X/20mm Reticule Eyepiece, High eye-point up to 21mm○
WM-P5AInfinity Long WD Plan Achromatic Objective 5X○
WM-L10AInfinity Long WD Plan Achromatic Objective 10X●
WM-L20AInfinity Long WD Plan Achromatic Objective 20X(S)●
WM-P50AInfinity Long WD Plan Achromatic Objective 50X(S)●
WM-P80BInfinity Long WD Plan Achromatic Objective 80X(S)●
WM-P100AInfinity Plan Achromatic Objective 100X(S)/(Oil)○
ZT5BMechanical Stage, 180mmx155mm; movement range: 80mmx50mm; with low-positioned X/Y coaxial control knob●
ZT5B-1000Drop specimen holder(ø110)●
ZT5-2000Specimen holder●
ZQ580AQuintuple Revolving Nosepiece●
DX10A100W Halogen Lamp House●
JX11Metallurgical Reflected Illuminator●
JX10Metallurgical Reflected Illuminator○
PQ9Polarizer●
PY9Analyzer●
LA9Blue Filter(ø32)●
LH9Yellow Filter(ø32)●
LU9Green Filter(ø32)●
LB9White Filter(ø32)○
SX20.5X C Mount○
SX31X C Mount○
SX40.25X C Mount○
SX50.65X C Mount
OMMMMetallurgical Micrometer(1/100mm)○
BZ-0022E12V50W Osram Halogen●
BZ-0023A250V/5A ø5X20 Fuse●●●
DQ5CElectrics for 12V50W Halogen●

Note: “●” indicates a standard attachment, while “○” represents optional accessories.
Design Updates: To stay aligned with advancing technology, we reserve the right to modify designs or make changes without prior notice.
