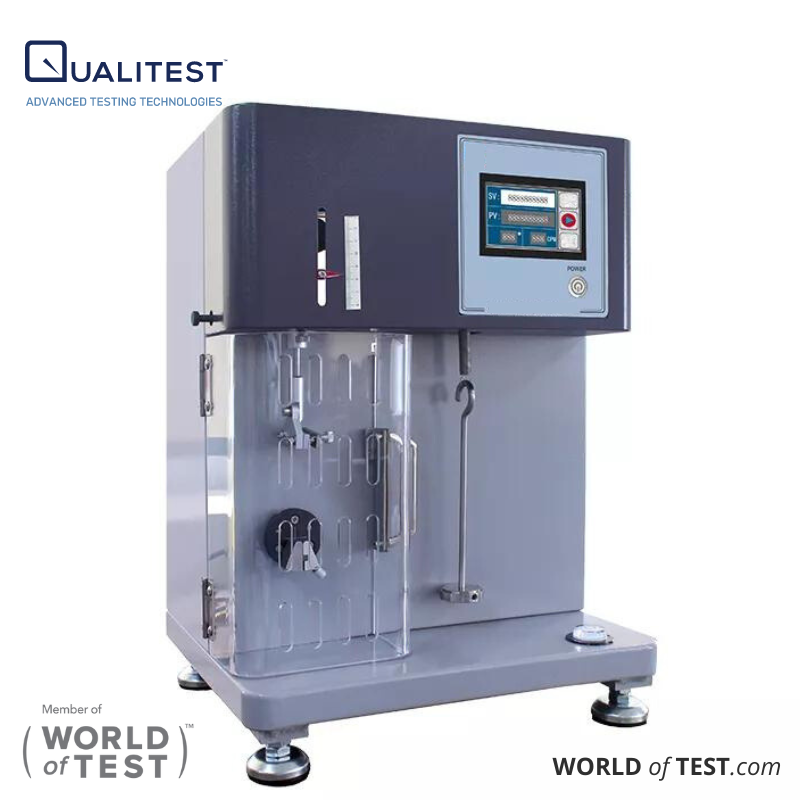

MIT Folding Endurance Tester

MIT Folding Endurance Tester

Test Application
Packaging Testing Instruments
Cardboard & Paper Testing
Standards
TAPPI-T423PM
ASTM-D2176
JIS-P8115

Best Application: To measure folding endurance strength of paper

Applications

This tester is used for determining the folding endurance strength of paper and paper board, using hang type weight method (QT-6014-A). The specimen is clamped by upper and lower grips. Exert the specified load onto the upper grip to have the specimen bear a certain tension. The specimen is vertically placed against the ground surface and is folded to two sides by lower grip. Record the numbers of folding after the specimen breaks.

Technical Specifications

Specimen

15×150mm

Load Method

500g×3,255g×3(optional)(Hang type weight) (Can select weight as per requirements)

Counter

LCD,0~999,999

Load precision

±0.5%

Folding angle

135±0.5°, 90±0.5°

Speed

175±10cpm

Width of folding head

19 ± 1mm

Arc radius of folding surface

0.25±0.02 mm, 0.38±0.02 mm, 3.5±0.02 mm

Clamping thickness of folding head

0.25, 0.5, 0.75, 1.0, 1.25 mm 0.25, 0.5, 0.75, 1.0, 1.25 mm

Dimension(W×D×H)

45×40×52cm45×40×52cm

Weight(approx.)

40kg

Power

1∮,AC220V,50/60Hz,3A(Please specify if different when ordering)
