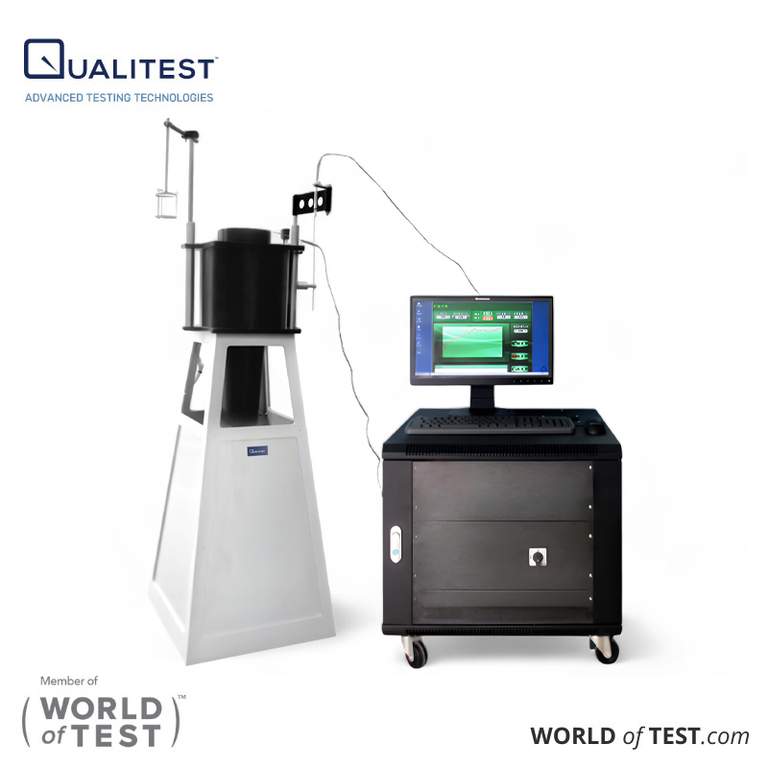

Non-combustibility Test Furnace

Non-combustibility Test Furnace Main Features:

• Automated Precision Temperature Control: Utilizes a sophisticated design with a PID temperature controller and thyristor technology, ensuring precise temperature control and stability throughout testing.
• Enhanced Temperature Balance Mode: Incorporates an improved temperature balance mode, inspired by leading manufacturers of non-combustibility test furnaces. The system automatically switches from PID temperature control to power control mode, eliminating the need for manual intervention and ensuring strict adherence to testing standards.
• High-Quality Radiating Furnace: The radiating furnace is heated to 750±5°C using a resistance band wound around the outer wall of the radiation tube. This resistance band, supplied by Kanthal, Sweden, is known for its durability and extended service life.
• Comprehensive Temperature Monitoring: Equipped with thermocouples at three critical points—inside the furnace, at the specimen center, and on the specimen surface. These thermocouples, provided by OMEGA, USA, offer long-lasting performance and enable precise measurement of temperature rises at each location, ensuring accurate test results.
• Calibratable Internal Thermocouples: The furnace includes internal thermocouples that can be calibrated at various points in line with testing standards. The system features movable measuring instruments to adjust the height of the internal thermocouples as needed. The accompanying software calculates average temperatures at each point to produce a standardized temperature curve.
• Rotatable Thermocouple Scanning Device: A 360-degree rotatable and adjustable thermocouple scanning device allows for accurate calibration of the furnace wall temperature, with the software verifying compliance with standard requirements.
• Corrosion-Resistant Air Stabilizer and Deflector: The stainless steel inverted cone air stabilizer and cylindrical deflector are treated with Teflon to resist erosion caused by test smoke, ensuring longevity.
• Controlled Heating Rate: The heating rate is managed by testing software, enabling staged temperature control and extending the operational life of the radiation furnace.
• Automated Data Analysis and Reporting: The data acquisition and analysis software automatically generates comprehensive test reports, which can be easily exported via computer output.
