How an Orange Peel Meter Works
A wave-scan orange peel meter measures surface waviness by scanning the optical profile of a coating with a focused laser beam. A detector captures the specular reflection (light reflected at the mirror angle) point by point as the instrument moves across the surface. Mathematical filtering then separates the reflected signal into distinct wavelength ranges that correspond to different visual effects.
The Underlying Principle: Specular Reflection and Waviness Detection
On a perfectly flat, high-gloss surface, all light reflects at a single mirror angle. Real painted surfaces contain microscopic undulations, called waviness, with lateral wavelengths ranging from approximately 0.1 mm to 30 mm. Each waviness element tilts the local surface normal by a small angle. That tilt redirects the specular reflection away from the ideal mirror direction, creating the alternating light and dark pattern the eye perceives as orange peel.

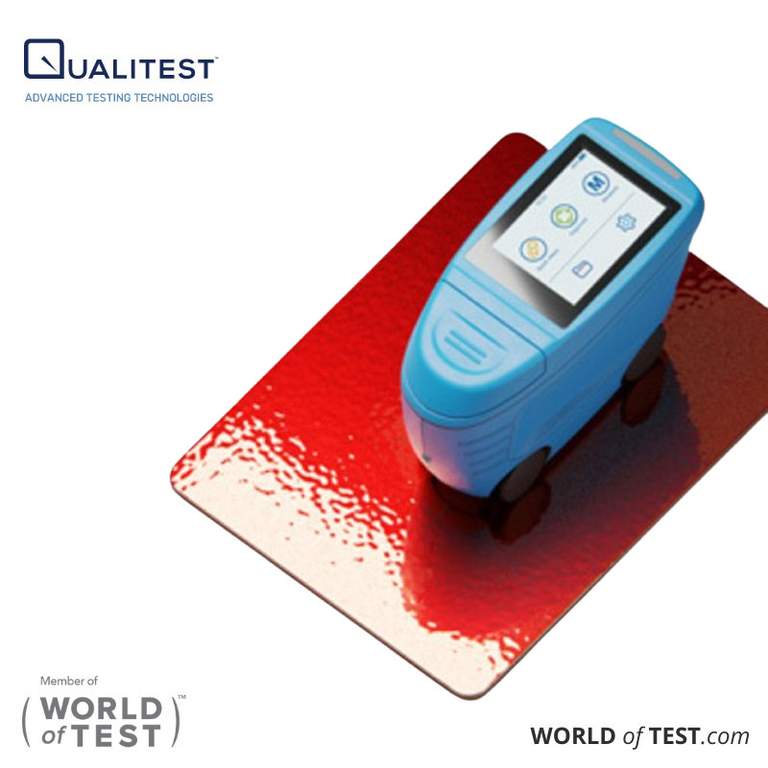

The wave-scan simulates this visual perception. A laser diode illuminates the surface at a 60-degree angle. A photodetector, positioned at the equal but opposite angle, captures the reflected intensity. As the operator rolls the instrument across the coating, the detector records the intensity variation point by point at a resolution of 375 points per centimeter. The result is a continuous optical profile of the surface.
From Optical Profile to Structure Spectrum
The raw optical profile contains waviness information at every scale present on the surface. To make that data actionable, the instrument applies mathematical band-pass filters, including Fast Fourier Transformation (FFT), to decompose the profile into five wavelength bands:
- du: structures smaller than 0.1 mm (cause dullness and reduce image clarity)
- Wa: 0.1 to 0.3 mm (affect DOI at close viewing distance)
- Wb: 0.3 to 1 mm (influence fine surface texture perception)
- Wc: 1 to 3 mm (contribute to visible micro-orange peel)
- Wd: 3 to 10 mm (primary orange peel range at mid-viewing distance)
- We: 10 to 30 mm (long-wave structures visible at approximately 3 meters)
Together these bands form the structure spectrum. Short-wave (SW) values correlate with the appearance at close viewing distance (roughly 30 cm), while long-wave (LW) values correlate with the visual impression at approximately 2 to 3 meters. This separation matters because a surface can score well at one distance and poorly at another.
DOI and Dullness Measurement
Distinctness of Image (DOI) describes how sharply a surface reflects objects. Fine structures below 0.3 mm scatter the reflected light and blur the reflected image. The wave-scan quantifies this effect through the du and Wa bands. Some models add a CCD camera that captures the reflected image directly, providing an independent dullness measurement that accounts for structures smaller than 0.1 mm. ASTM E284 defines orange peel as the appearance of irregularity resembling the skin of an orange, and DOI as the sharpness of a reflected image. The wave-scan addresses both parameters in a single scan.
Key Features and Technical Specifications
The wave-scan family covers four product configurations. Each shares the same laser-based scanning principle but targets a different measurement scenario. Core class-level specifications include:
- Structure spectrum range: 0.1 to 30 mm wavelength (du through We bands)
- Scan length options: 5, 10, or 20 cm (selectable from the menu)
- Scanning resolution: 375 points per centimeter
- Light source: laser diode for high-gloss measurement; infrared high-energy LED added on dual models for semi-gloss surfaces
- Repeatability: standard deviation of 4% or greater than 0.4 units
- Reproducibility: standard deviation of 6% or greater than 0.6 units
- Minimum sample size: 35 mm x 150 mm (standard models)
- Object curvature: radius greater than 50 cm (standard models); the micro-wave-scan handles smaller radii
- Measurement scales: classical LW, SW, and customer-specific or OEM-specific scales
- Data storage: up to 10,000 readings in 1,000 test series
- Connectivity: USB, Wi-Fi (optional), LAN (robotic model)
- Pass/fail display: color-coded results on the instrument display, with limits defined in smart-chart software
Verify exact values against the specific model datasheet. The ranges above describe the Wave-Scan 3 family.
How to Choose the Right Orange Peel Meter
Selecting the correct wave-scan configuration depends on four factors: the surface type, part geometry, production environment, and data workflow.
Surface Gloss Range
If you measure only high-gloss topcoat finishes, the wave-scan 3 covers the full structure spectrum. If you also need to evaluate intermediate process layers with semi-gloss or medium-gloss surfaces (dullness up to 65 units), the wave-scan 3 dual adds an infrared LED light source for that extended capability. Choose the dual model when troubleshooting requires tracing appearance issues back through primer and basecoat layers.
Part Size and Curvature
Standard wave-scan models require a minimum sample size of 35 mm x 150 mm and a surface radius greater than 50 cm. For smaller or highly curved components, the micro-wave-scan 3 provides comparable waviness data in four wavelength bands (Wa through Wd, covering 0.1 to 10 mm) with a compact, one-hand design.
Manual Versus Automated Measurement
Handheld models suit laboratory, incoming inspection, and spot-check workflows. For automated, in-line quality control, the wave-scan 3 robotic mounts on a robotic arm and performs non-contact measurement. It uses LAN connectivity and an interface program for integration into paint shop automation and Industry 4.0 data architectures.
Data Management Needs
All models transfer data to smart-chart software for SPC analysis, documentation, and limit management. If your quality system requires centralized data collection from multiple instruments, confirm connectivity (USB, Wi-Fi, or LAN) matches your IT infrastructure.
Frequently Asked Questions
What Does an Orange Peel Meter Measure?
An orange peel meter measures surface waviness on painted or coated surfaces. It quantifies the intensity of undulations across multiple wavelength bands, from fine structures that affect image clarity to larger structures that create the visible "orange skin" texture. It also measures Distinctness of Image (DOI), which reflects how sharply the surface mirrors objects.
How Does the Wave-Scan Correlate with Visual Perception?
The wave-scan scans the surface with a laser at a 60-degree angle and decomposes the reflected signal into wavelength bands that match how the human eye perceives waviness at different viewing distances. Short-wave bands correlate with close-distance impressions (approximately 30 cm), while long-wave bands correlate with far-distance impressions (approximately 2 to 3 meters). Visual perception studies confirm this correlation.
What Is the Difference Between Orange Peel and DOI?
Orange peel refers to the visible wavy texture on a surface, caused by structures with wavelengths typically between 1 mm and 30 mm. DOI (Distinctness of Image) describes how clearly a surface reflects an image, which structures smaller than approximately 0.3 mm primarily influence. A surface can have low orange peel but poor DOI, or the reverse. The wave-scan measures both in a single pass.
Can the Wave-Scan Measure Semi-Gloss Surfaces?
Yes. The wave-scan 3 dual model adds an infrared high-energy LED that reads the structure spectrum on medium-gloss surfaces (dullness up to 65 units). This capability allows quality engineers to evaluate every paint process step, not just the final topcoat, and identify which layer causes an appearance defect.
What Standards Apply to Orange Peel Measurement?
ASTM E284 defines orange peel and DOI terminology. No single standard prescribes a universal orange peel measurement method, but OEMs have developed company-specific scales and target values based on visual perception studies. The wave-scan calculates these OEM-specific scales directly, making it the de facto standard across the automotive industry for appearance quality control.
How Does the Robotic Version Differ from the Handheld?
The wave-scan 3 robotic mounts on a robotic arm for automated, non-contact measurement at the production line. It uses LAN connectivity and a dedicated interface program for integration into paint shop automation systems. Because the robotic system measures the same areas consistently on every car body, it generates representative SPC data suitable for AI-driven process analysis.
