| Range | Oxygen: - Low Oxygen: 0.1ppm ~ 0.5%
- High Oxygen: 0.5% ~ 20%
Nitrogen:
- Low Nitrogen: 0.1ppm ~ 0.5%
- High Nitrogen: 0.5% ~ 50%
Hydrogen: - Low Hydrogen: 0.1ppm ~ 200ppm
- High Hydrogen: 200ppm ~ 5000ppm
Note: * the measurement range can be changed by changing the measurement quantity. |
|---|
| Sensitivity | Oxygen, Nitrogen, and Hydrogen: |
|---|
| Repeatability | - Oxygen and Nitrogen: 1ppm or 1%
- Hydrogen: 0.2ppm or 2%
|
|---|
| Sample Mass | 1g (Sample mass can be changed according to the content) |
|---|
| Analysis Time | About 3 min |
|---|
| Carrier Gas | High purity helium for O/N, high purity nitrogen for H |
|---|
| Pneumatic Gas | Nitrogen or compressed air |
|---|

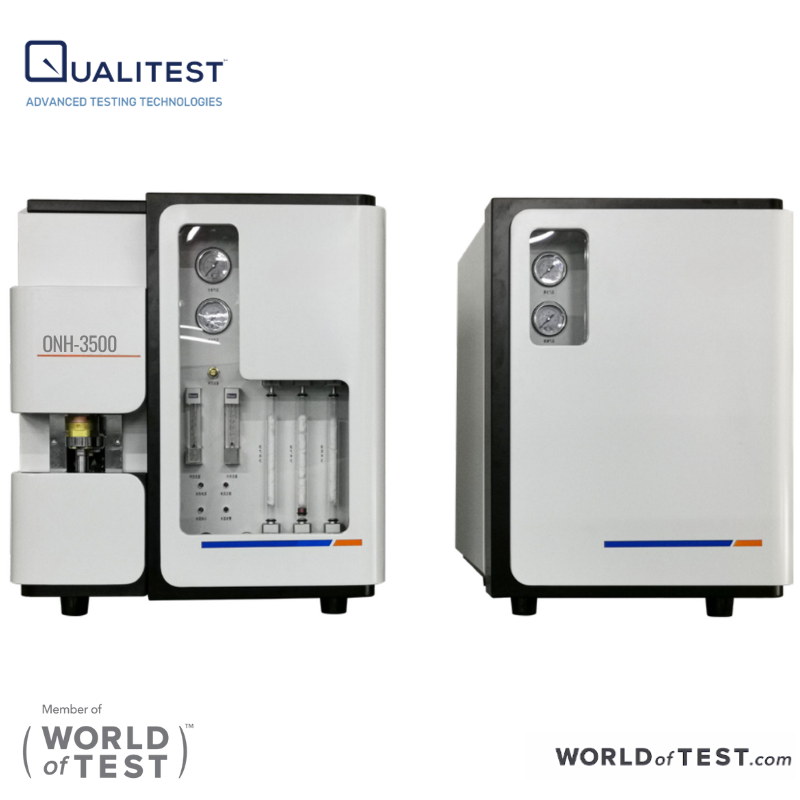

| Structure | - Modular Structure
- Including Analyzer
- Computer
- Electronic Balance
- Printer
- Water Circulate Chillers
Note: * is optional.
|
|---|
| Detection System | A Solid-state Infrared detector is used for Oxygen. Thermo-conductivity detector is used for Nitrogen and hydrogen. - Infrared Cells: Two IR cells are installed in the analyzer. The length of each cell can be customized according to the content of samples
- Detector: Solid-state pyroelectric detector made in Germany
- Motor: Synchronous motor made in Swiss
- Source: Anti-oxide, stable IR emitter made in US
- Temperature control: Keep the constant temperature in the whole infrared unit to make sure the temperature of detected gas is stable and the results are accurate
- Protecting gas: The infrared emitter and the detector are separated from the ambient by nitrogen, which can improve the stability and the accuracy
- Thermo-conductivity (TCD) detecting unit: Anti-oxide NTC thermistor
- Signal processing: A small current control technique is developed to make sure the thermistors can be used without carrier gas
- Reference gas circuit: Low flow control technique is used
|
|---|
| Gas Flow Control | High sensitive and accurate electric flow control technique based on the low-pressure difference is applied, and an Anti-Overshoot System is applied |
|---|
| Pulse Heating Electrode Furnace | - Power: Max.7.5KVA
- Temperature: Max.3000℃
|
|---|
| Calibration | - Fast calibration
- Normal calibration
|
|---|
| Power | 220VAC±10%, 50±1Hz, current max. 50A (Max.10KW) |
|---|
