Pipe Opacity Tester

Pipe Opacity Tester

Parent Product
Plastics Pipe / PVC Testing Equipment
Test Property
Pipe Testing
Standards
ISO 7686:2005
Applications

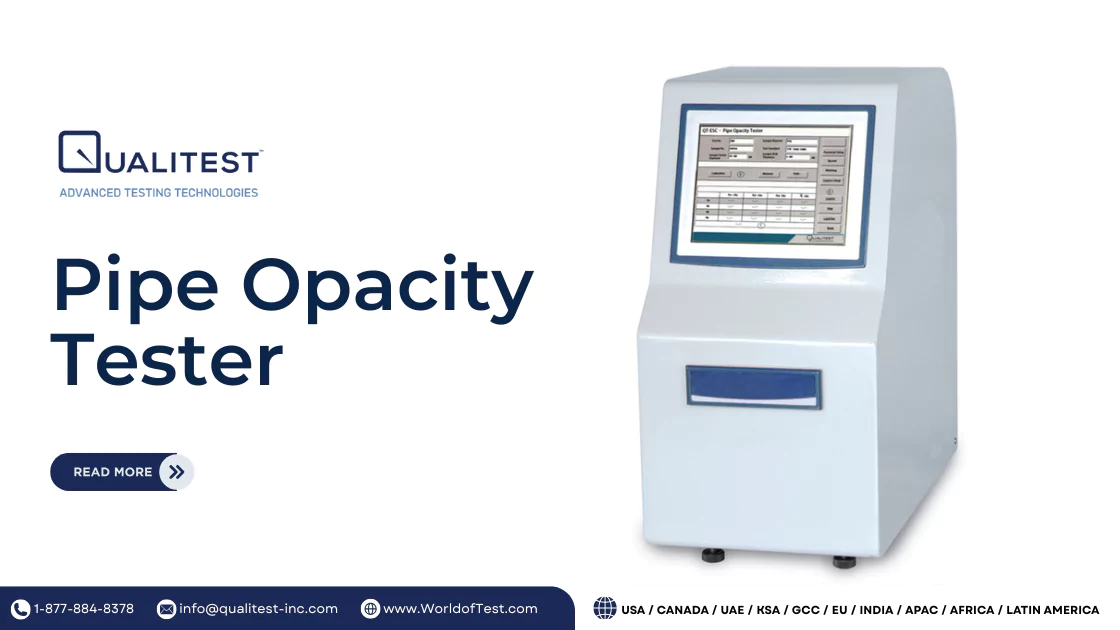

QT-POT Pipe Opacity Tester is used to determine the opacity of pipes and fittings. It is an ideal device for pipe manufacturers, research and inspection institutions. It consists of optical source, Luminous flux collection system and automatic specimen going in/out controlling system, specimen automatic moving device and specimen support.

ISO 7686:2005 Plastics pipes and fittings -- Determination of opacity. The standard specifies a method for the determination of the opacity of plastics pipes and fittings.

Features/Advantages
  • High accurate parallel optical source ensures a stable result.
  • Various sample supports and raster provided for pipes with different diameters.
  • Automatic calibration and three-point measurement.
  • Maximum 1000 groups of test data saved automatically.
  • Reports printed out via a micro-printer.
  • Advanced touch screen operation system with user-friendly interface.
Technical Specifications

Model

QT-POT

Sample Diameter Range

Φ16mm, Φ20mm, Φ25mm, Φ32mm, Φ40mm

Resolution

0.01%

Accuracy

0.05%

Dimensions

460 × 240 × 510mm

Weight

30kg
