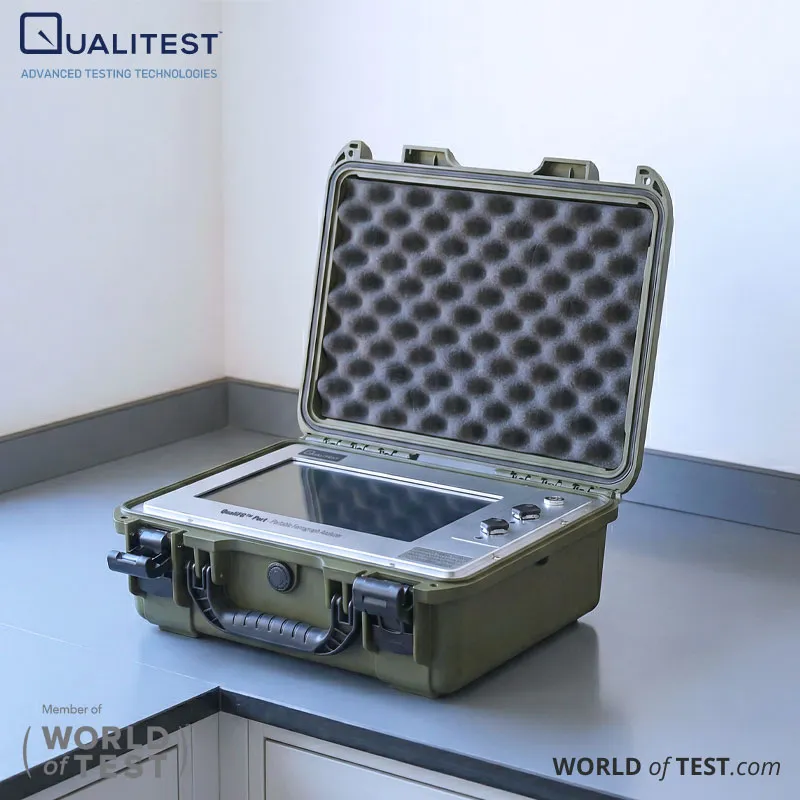

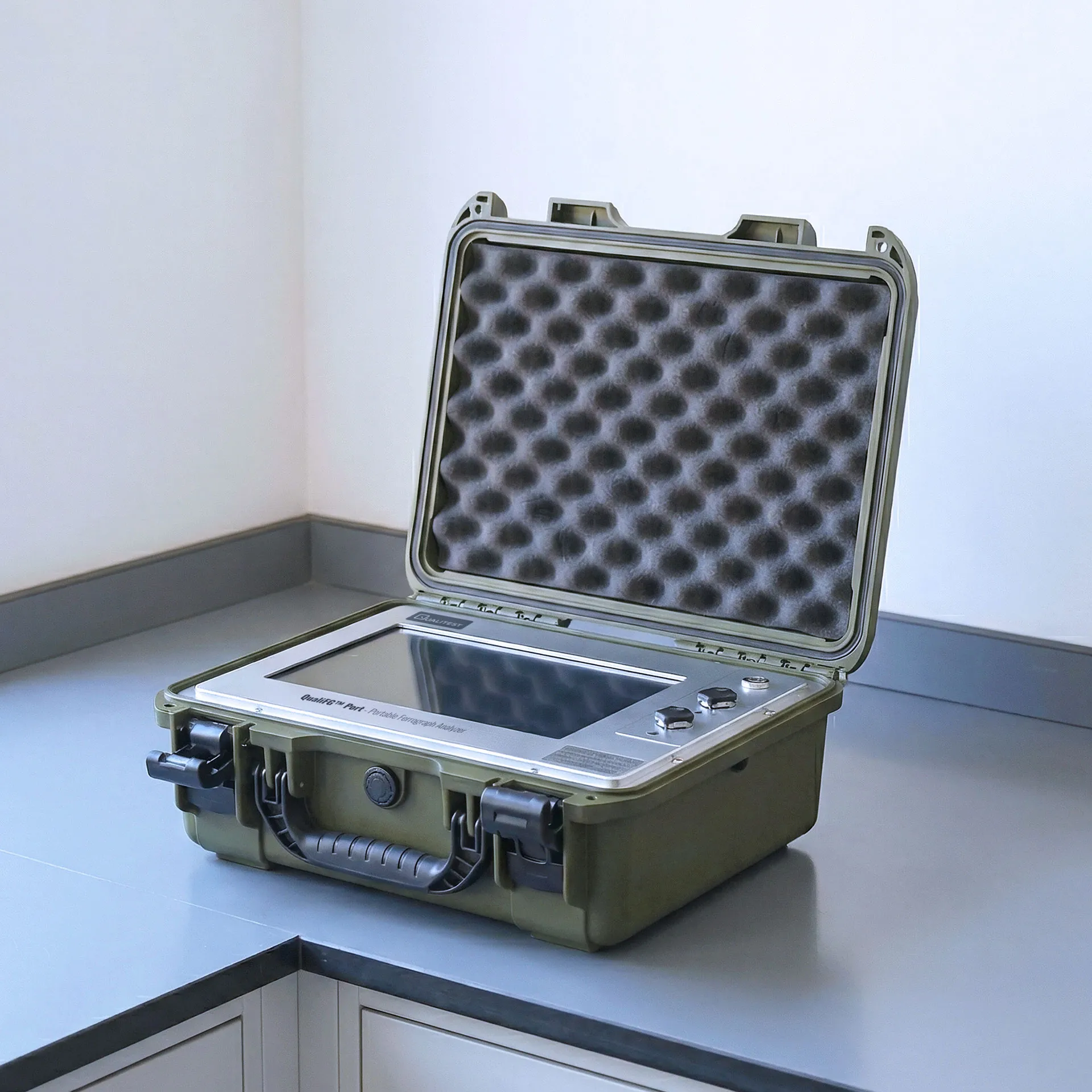

Portable Ferrograph Analyzer – QualiFG™ Port

Portable Ferrograph Analyzer QualiFG™ Port is a compact field-ready Ferrograph designed for fast evaluation of ferromagnetic wear debris in lubricating oil. It combines electromagnetic particle adsorption with image-recognition technology, allowing users to capture wear-particle images, classify wear type, and generate maintenance-focused reports directly from the instrument workflow.

This system is built for reliability teams that need quick screening at the asset location without waiting for a full laboratory ferrography cycle. This Portable Ferrograph Analyzer can be automated sample injection, automated cleaning, trend analysis, automatic early warning, and report generation in a portable housing designed for onsite use.

QualiFG™ Port is a practical fit for field inspections, route-based oil checks, and rapid condition assessments where wear-debris information is needed to support maintenance decisions before failures become more severe.

Portable Ferrograph Analyzer – QualiFG™ Port Applications

  • Field screening for rotating equipment: QualiFG™ Port is suitable for quick checks of ferromagnetic wear debris in gearbox, bearing, hydraulic, and circulating-oil systems. Its short test cycle helps technicians confirm whether a machine is stable or showing abnormal wear signals that need follow-up attention.
  • Trend monitoring and early warning: this Ferrograph supports trend-based maintenance programs through historical report queries, device trend analysis, and wear-particle quantity statistics. That makes it useful for condition-based maintenance workflows where changes over time matter more than a single reading.
  • Wear-type classification for maintenance decisions: QualiFG™ Port can classify ferromagnetic wear particles into four wear types: normal abrasive particles, adhesive wear particles, sliding wear particles, and cutting wear particles. This helps users move beyond simple particle counting and into more actionable wear interpretation.
  • Reporting and maintenance documentation: The system also fits teams that need standardized documentation. The software supports report querying, exporting, wear evaluation, and maintenance recommendations, which helps make inspection results easier to review across sites and teams.

Standards

  • ASTM D7690 – Microscopic characterization of wear and contaminant particles deposited on ferrograms (widely referenced for ferrogram microscopy workflows).
  • ASTM D7684 – Guidance/terminology used in microscopic particle identification programs (useful when standardizing wear particle descriptions in reports).

Portable Ferrograph Analyzer – QualiFG™ Port Key Features

  • Portable field-ready design: QualiFG™ Port uses a compact, lightweight housing intended for onsite work. This ferrograph is famous for its portability and a structure suitable for field screening rather than fixed-lab-only use.
  • Electromagnetic adsorption and image recognition: the system combines electromagnetic adsorption with image-recognition technology for detection of ferromagnetic wear debris in lubricating oil. This forms the core working principle of the instrument.
  • High-definition optical imaging: QualiFG™ Port uses 6× optical magnification and a 5 MP CMOS industrial camera with 2592 × 1944 resolution to capture wear-particle images clearly enough for automated classification and report generation.
  • Reflective LED illumination: the system uses an LED reflective light source to improve visibility of wear-particle surface texture and color characteristics during image acquisition.
  • Adjustable magnetic field control: the built-in magnetic field can be adjusted steplessly with 256 adjustment levels. This gives users more flexibility for different monitoring needs and particle-loading conditions.
  • Automatic sample injection and cleaning: The instrument supports automatic sample injection and automatic cleaning. Cleaning effectiveness can be monitored in software and that sampling and cleaning durations can be configured.
  • Four wear-type outputs: QualiFG™ Port classifies wear particles into four categories: normal abrasive particles, adhesive wear, sliding wear, and cutting wear. This helps users move from raw particle detection into more useful maintenance interpretation.
  • Automated reporting and trend analysis: The software supports historical data queries, device trend analysis, wear-particle quantity statistics, and automatic report generation with wear evaluation and maintenance advice. This helps standardize condition-monitoring documentation.

Theory and Method

A Ferrograph screening system of this type works by capturing ferromagnetic wear particles from an oil sample and then using optical imaging plus software-based recognition to evaluate particle characteristics. In QualiFG™ Port, electromagnetic adsorption collects ferromagnetic particles onto the inner surface of the detection cell, after which the optical system records the deposited debris for analysis.

The captured particle images are processed through image-recognition methods to estimate size, morphology, and wear type. The QualiFG™ Port is a neural-network-based analysis for real-time monitoring of particle dimensions and morphology, and image recognition and automated report generation built around the same principle.

This method is intended for rapid wear screening rather than full microscopy-based ferrogram interpretation. In practice, it works well as an early-warning and trending tool that helps decide when a machine should receive deeper oil analysis or maintenance intervention.

Portable Ferrograph Analyzer – QualiFG™ Port Technical Specification

ParameterQualiFG™ Port
Product TypePortable Ferrograph Analyzer / Ferrograph
Detection PrincipleElectromagnetic adsorption + image recognition
Detection TargetFerromagnetic particles in lubricating oil
Detection Range5–500 μm
Optical Magnification6×
Camera5 MP CMOS industrial camera
Camera Resolution2592 × 1944
Light SourceLED reflective light source
Wear Type OutputNormal abrasive, adhesive wear, sliding wear, cutting wear
Output IndicatorsTotal wear amount, large/small particle counts, equivalent circle radius, major axis dimension, wear evaluation
Detection DurationLess than 1 minute
Display12.1-inch, 1280 × 800 color LCD touchscreen
CPU8-core 64-bit processor; 4 Cortex-A76 + 4 Cortex-A55
GPUARM Mali-G610
NPUUp to 6 TOPS
Memory16 GB RAM
Storage256 GB eMMC
PortsUSB / RJ45
Working Temperature-20°C to 60°C
PowerDC 24 V or power adapter
Maximum PowerLess than 100 W
MaterialsPP + aluminum alloy
Weight10 ± 0.2 kg
