Ultrasonic Hardness Tester

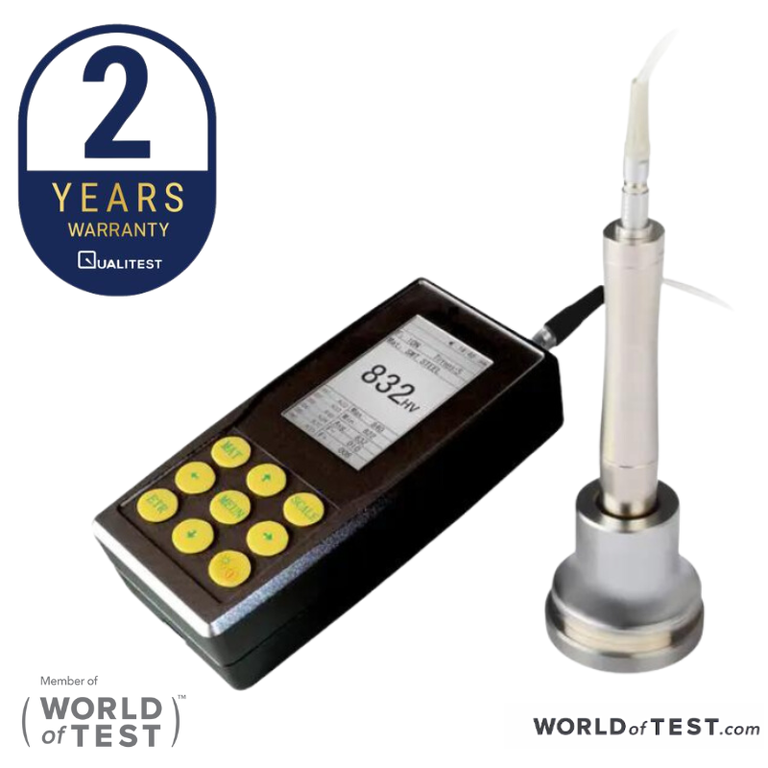

Portable Ultrasonic Durometer - Hardness Tester UCI-1100H
Parent Product
Ultrasonic Portable Hardness Tester UCI Series
Standards
ASTM A1038
DIN 50159
View PDF
Download PDF Brochure
Portable Ultrasonic Durometer - Hardness Tester UCI-1100H (PDF)

Hardness assessments with the Portable Ultrasonic Durometer - Hardness Tester UCI-1100H by Qualitest North America. Designed for accuracy and convenience, this innovative device uses ultrasonic technology, conforming to international standards ASTM A1038-2005 and DIN50159-1-2008.

With microscopic indentation and rapid measurements in just 2 seconds, the UCI-1100H ensures superior working efficiency—60 times higher than conventional testers. Elevate your hardness testing capabilities and invest in innovative technology for reliable and non-destructive results. Rely on the UCI-1100H for unmatched performance and accuracy in the field.

Portable Ultrasonic Durometer - Hardness Tester UCI-1100H Introduction:

The UCI-1100H is an innovative portable ultrasonic durometer - hardness tester featuring the UCI-1100H manual probe, meticulously designed by Qualitest North America. Utilizing the ultrasonic contact independence method, this device enables convenient on-the-spot hardness testing.

Functioning as a Non-Destructive Testing (NDT) hardness tester, the UCI-1100H is ideally suited for evaluating the hardness of finished products such as molds, gears, shafts, rods, screws, rails, etc. Its minimal contact indention is too small to observe, ensuring precise assessments.

Ultrasonic Hardness Tester



This device adheres to international standards, including ASTM A1038-2005, DIN50159-1-2008.

By incorporating these advanced features, the UCI-1100H ensures precise and efficient on-site hardness testing, aligning with global standards for accuracy and reliability. Invest in innovative technology for superior results.

Application

Ultrasonic Hardness Tester



Portable Ultrasonic Durometer - Hardness Tester UCI-1100H Features:

  1. High Accuracy (2.1):
    • HV: ±3% HV
    • HR: ±1.5HR
    • Conforms to internal standards ASTM A1038-2005 and DIN50159-1-2008
  2. Microscopic Indentation (2.2):
    • The indention size of the UCI-1100H matches HV1 of micro hardness testing in one specimen.
    • Too small to observe with the naked eye, offering a non-destructive method for specimen evaluation.
  3. Quick Measurement (2.3):
    • Obtain hardness values in just 2 seconds.
    • Remarkable working efficiency, 60 times higher than conventional bench hardness testers.

Portable Ultrasonic Durometer - Hardness Tester UCI-1100H
T:

Product Name

Portable UCI Durometer

Model

UCI-1100H

Testing force

Manual 10N

Hardness Range

HV 80-1599; HRC 20-70;

Accuracy

±3% HV; HR:±1.5HR

Measuring Scales

HV/HRC

Language

English, Chinese

Data Output

RS232

Data Saving

20-group calibration data, 1000-group measurement data

Working Conditions

Temp: -10℃~50℃; Humidity: 30%~80%

Power Supply

Rechargeable lithium battery, battery 4.2V,4800mAh

Rechargeable Voltage

AC220V/50Hz, 110V/60Hz

Standard delivery

Accessories

Code #

Accessories

Code #

UCI-1100H Main unit

882-110H

10N manual probe

882-241

Rockwell test block

882-641

Probe cable

882-801

USB Recharger

882-851

USB cable

852-810

Toolbox

882-901

Screwdriver

882-951

Operation   manual

UCI-1100H

Warranty   card

UCI-1100H

Quality certificate

UCI-1100H

Packing list

UCI-1100H
