Portable Ultrasonic Hardness Tester - UCI-3000M
Parent Product
Ultrasonic Portable Hardness Tester UCI Series
Standards
ASTM A1038
DIN 50159
Download PDF Brochure
Portable Ultrasonic Hardness Tester - UCI-3000M (PDF)

Elevate your hardness testing with the cutting-edge Portable Ultrasonic Hardness Tester - UCI-3000M. Offering unparalleled precision with ±3% HV, ±1.5HR, ±3%HB accuracy, this device ensures quick results in just 2 seconds. The microscopic indentation feature, observable with a high-power microscope, sets it apart.

With a large LCD display for easy data interpretation, user-friendly operation post-brief training, and a promised 2-year warranty (excluding the probe), the UCI-3000M is a reliable choice. Benefit from mass storage capabilities, saving up to 1000 groups of data, and streamline calibration with the ability to save 20 groups of calibration data. Revolutionize your hardness testing experience and invest in the UCI-3000M for unmatched efficiency and accuracy.

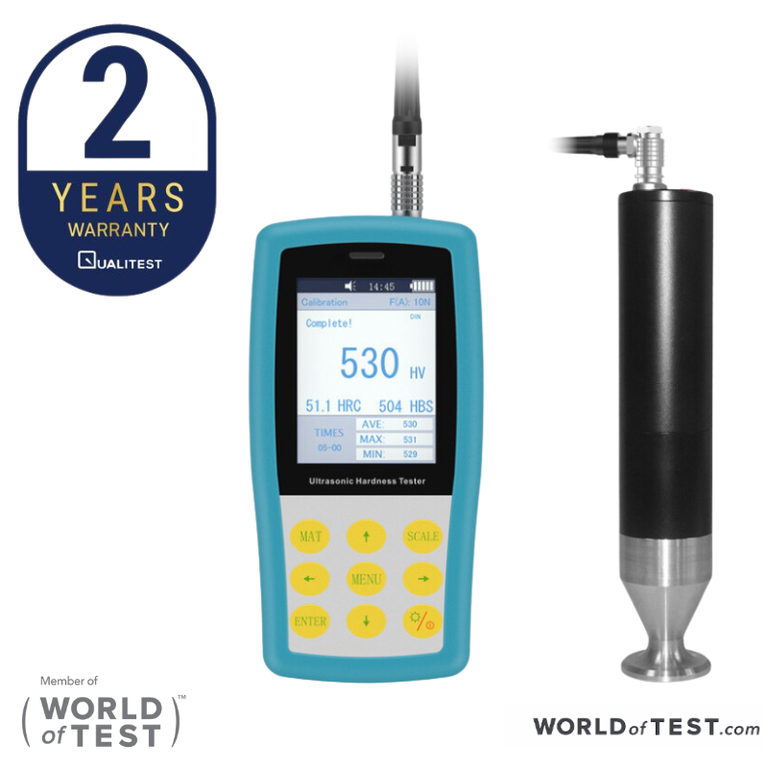

Portable Ultrasonic Hardness Tester - UCI-3000M

Portable Ultrasonic Hardness Tester - UCI-3000M is a sought-after hardness tester manufactured by Qualitest North America, known as the UCI-3000M Portable Ultrasonic Hardness Tester. This portable device utilizes the ultrasonic contact independence method for conducting hardness tests either on-site or in a laboratory setting.

The UCI-3000M proves to be an ideal portable hardness tester for hardness assessments related to coatings and platings. It excels in measuring the hardness of chrome, copper plating, carburized layers, and nitriding layers with precision and efficiency.

Functioning as a Non-Destructive Testing (NDT) hardness tester, the UCI-3000M features an indention so small that it's challenging to observe, making it an excellent solution for testing the hardness of finished products. This includes molds, gears, shafts, rods, screws, rails, and more.

Versatility is a key feature of the UCI-3000M, as it seamlessly accommodates both motorized and manual probes. This flexibility ensures its applicability across various scenarios and surface roughness conditions.

Compliant with international standards, the UCI-3000M adheres to ASTM A1038-2005, DIN standard DIN50159-1-2008. Rely on the UCI-3000M for accurate and dependable hardness testing across diverse applications..

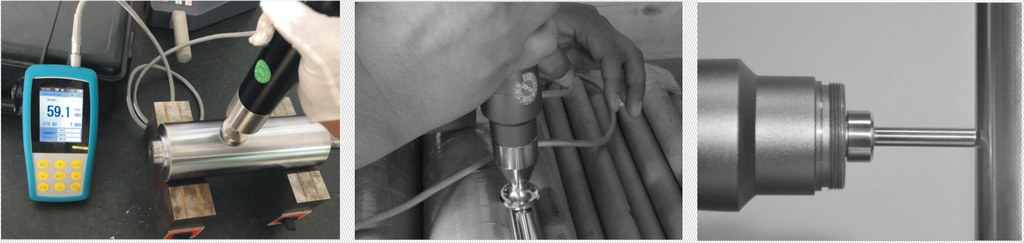

Ultrasonic Hardness Tester



Application:

  • Measure the hardness of flange edges, gear root stampings, molds, sheets, surface-hardened teeth and gear grooves, and taper parts.

  • Conduct hardness measurements on axles, thin-wall pipes, and containers.

  • Measure the hardness of wheels and turbine rotors.

  • Assess the hardness of bit blades.

  • Conduct hardness measurements on welding parts.

  • Measure certain aperture depth, deep dents, convex marks with greater radian, and irregular planes.

  • Determine the hardness of most ferrous metals, nonferrous metals, and other alloys in industrial production.
Ultrasonic Hardness Tester



Portable Ultrasonic Hardness Tester UCI-3000M Features:

  • Perfect Accuracy — Achieve precision with ±3% HV, ±1.5HR, ±3%HB.
  • Microscopic Indentation — Indentations are observable only through a high-power microscope.
  • Quick Measurement — Obtain results in just 2 seconds, ensuring efficiency.
  • Large LCD Display — View measurement results, times count, maximum, minimal, average, and deviation directly on the spacious LCD display.
  • User-Friendly Operation — Easily operate the device with proficiency after minimal training.
  • Promised Warranty — Benefit from a 2-year warranty for the main unit (Probe excluded), ensuring long-term reliability.
  • Mass Storage — Store up to 1000 groups of measurement data for comprehensive record-keeping.
  • Simple Calibration — Save calibration data for up to 20 groups, facilitating efficient calibration processes.

Portable Ultrasonic Hardness Tester - UCI-3000M Technical Specifications:

Product NameMotorized Ultrasonic Hardness Tester
ModelUCI-3000M
Optional probeMotorized Probe：3N、5N、8N、10N;  Manual Probe：10N、20N、49N、98N ;
Measuring RangeHBW:100-650; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm











Measuring Accuracy（%）

Scales﹤250HV250~500HV500~800Hv﹥800HV
HV0.16789
HV0.36789
HV0.85567
HV15567
HV55555
HV105555
Hardness ScalesVickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
LCDColor Screen
Data DisplayLCD Backlight, Adjustable
LanguageEnglish, German, Portugese, Turkish, Chinese
Data OutputRS232 Hyper Terminal/Bluetooth Printer
printBluetooth
Data StorageTo save 1000 groups of measuring data and 20 groups of calibration data
Word inputLetters and numerals
Working EnvironmentTemperature: -10°C to 50°C Humidity :30%-80% R.H.
Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
Recharger VoltageAC220V/50Hz, 110V/60Hz
Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and WeightPacking Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight （Standard Delivery）4.3Kg



Standard Delivery:

Product NameCode #Product NameCode #Product NameCode #
Instrument Main Body882-141M10N Motorized Probe882-251Anti Vibration Case882-901
Standard Rockwell Block882-641Probe Cable882-801Screw882-951
USB Recharger882-851COM Cable882-810Operation ManualUCI-3000M
Qualification CertificateUCI-3000MPacking ListUCI-3000MWarranty CardUCI-3000M
