Material Removal Physics & Preston Mechanics
Preparing a metal specimen demands stripping away every last bit of squished, heat-damaged surface material until the true microstructure stands revealed without a single microscopic scratch. In high-precision units like the QualiGP™ series, material removal relies on spinning platens (φ203 mm, φ250 mm, or φ300 mm wheel sizes) carrying bound or loose grit particles, including hard silicon carbide papers, fine diamond suspensions, or micro-fine alumina slurries.
Material removal occurs through three distinct contact interactions:
- Ploughing: The abrasive particle doesn't cut right away. Instead, it pushes into the metal and shoves material sideways, forming micro-furrows with raised plastic ridges running along the sides.
- Cutting: The grit digs in with a sharp edge, slices right through, and kicks off microscopic curly metal chips.
- Dead Metal Zone Formation: A tiny wedge of jammed metal gets trapped right under the abrasive edge, creating extra friction and heating up the contact zone.
Integrated water flushing channels wash away loose metal swarf constantly, maintaining thermal stability while platens spin up to 1000 or 1400 r/min.
The Preston Removal Equation
Researchers established a clear mathematical formula showing how fast material gets scraped away:
dH / dt = Kp · P · V
The thickness of metal removed per second (dH/dt) comes down to three factors: downward pressure applied (P), linear speed of the disc whizzing underneath (V), and a friction coefficient (Kp) based on grit type and alloy hardness. High-torque variable speed drives, such as the heavy 2.1 kW drive motor on the automated QualiGP™ 4 / 4S or 1.1 kW drives on the QualiGP™ 2 / 3 series, allow operators to adjust linear disc velocity (V) to boost removal rates without deforming the sample face or overloading downward force.
Contact Mechanics & Pneumatic Force Control
When hard diamond particles press against a flexible polishing cloth or resilient pad, the load spreads out over an elliptical contact footprint. Hertzian contact equations demonstrate how flexible pads cushion the specimen to prevent rounding off the sharp outer edges of your metal sample.
Preventing sample distortion requires precise control over applied downward pressure:
- Single-Point Loading (5–60 N): Available across the QualiGP™ 2, 3, and 4 series, single-point pneumatic heads press individual mounts down independently, keeping flat contact across varied sample heights.
- Central Force Loading (20–200 N): Featured on the dual-mode QualiGP™ 4 / 4S, central loading clamps all samples within a rigid holder, locking the entire set into a single flat plane for high-throughput preparation.
- Manual Pressure Sensing (0–60 N): The compact QualiGP™ M-1Pro+ includes real-time digital force monitoring, showing benchtop operators exact applied pressure to maintain repeatable manual grinding.
Sequential Preparation Workflow & Automated Dosing
Specimen preparation follows a structured ladder where each finer grade of grit erases the deeper gashes left by the rougher grit before it:
- Stage 1: Primary Rough Grinding: Flatten mounted specimens against coarse grit paper (P120 to P320) using preset platen speeds (150, 300, or 600 r/min) to remove deep saw marks immediately.
- Stage 2: Fine Grinding Progression: Move through finer paper grades (P400 down to P2400) or structured diamond discs. Rotate the mount ninety degrees between paper swaps to verify that new fine lines replace previous coarse scratches.
- Stage 3: High-Reflectivity Polishing: Switch from paper to smooth woven or velvet pads soaked with diamond fluids (3 micron down to 1 micron). Connecting the QualiGP™ SF5 Slurry Feeder delivers controlled drop-by-drop fluid dosing, preventing friction spikes and eliminating fluid waste.
- Stage 4: Chemical Etching: Apply a gentle etching fluid to reveal grain boundaries and microstructural phases clearly under microscopic examination.
Machine Architectures & Engineering Specifications
Qualitest equipment configurations match specific laboratory testing volumes while strictly conforming to international standards like ASTM E3:
| Machine Model | Wheel Sizes & Drive Specs | Loading Mechanism & Pressure Range | Operational Focus |
|---|
| QualiGP™ M Series (M-1Pro / M-1Pro+) | φ203 mm platen, 0.75 kW motor, variable speed 0–1400 r/min (preset 150/300/700/1400 r/min). | Manual application (0–60 N force display on M-1Pro+). | Benchtop manual preparation, low-volume QA, laboratory instruction. |
| QualiGP™ 2 / 2S (Automatic) | φ250 mm platen std (optional φ203/φ300 mm), 1.1 kW motor, 50–600 or 50–1000 r/min. | Single-point pneumatic loading (5–60 N per sample). | General industrial quality assurance with automated pressure control. |
| QualiGP™ 3 / 3S (Automatic) | φ250 mm platen std (optional φ203/φ300 mm), 1.1 kW motor, 50–600 or 50–1000 r/min. | Single-point pneumatic loading (5–60 N per sample). | High-volume preparation processing multiple mounts concurrently. |

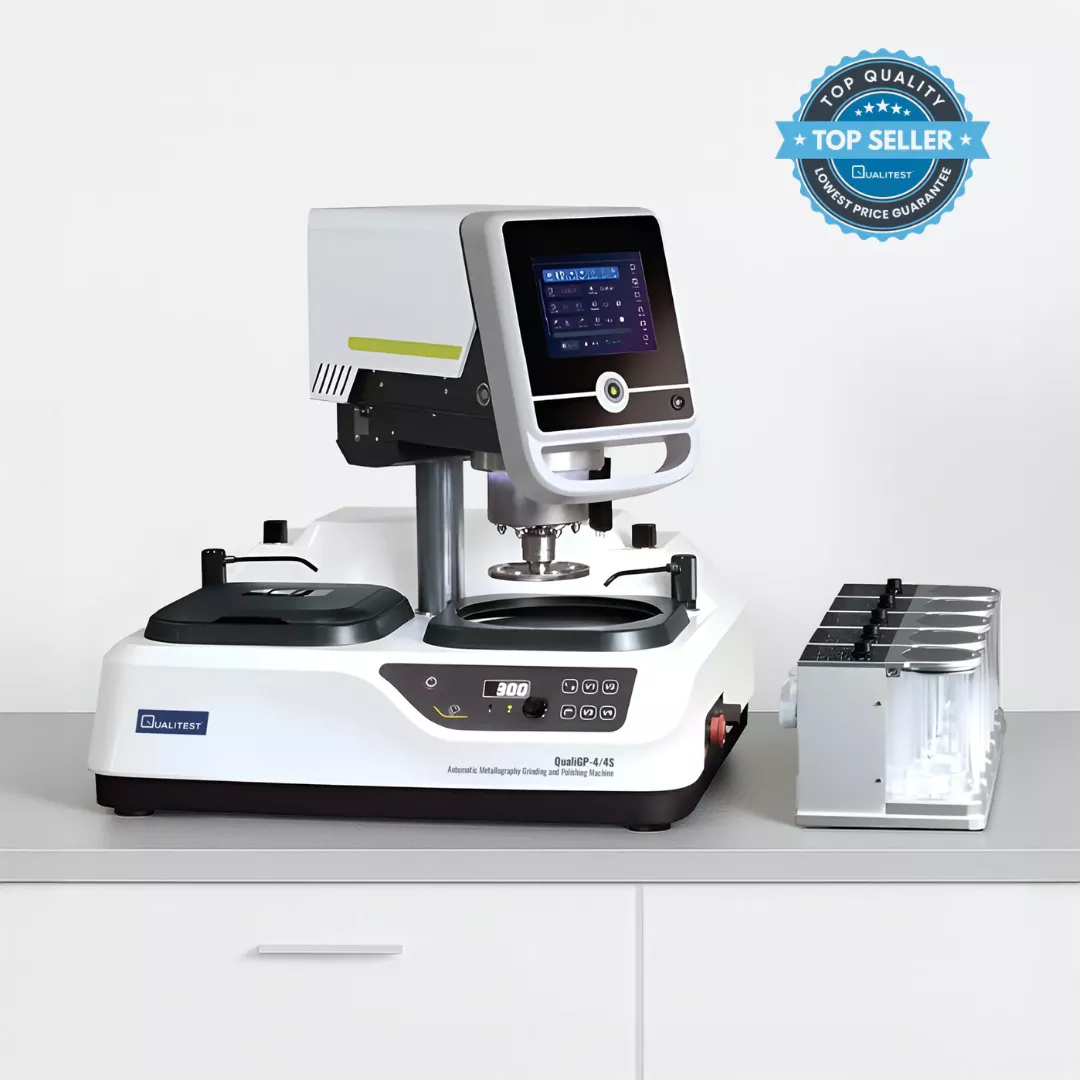

| QualiGP™ 4 / 4S (Automatic Dual-Mode) | φ200/φ250/φ300 mm platens, heavy 2.1 kW motor, 0–1000 r/min. | Dual-mode: single point (5–60 N) & central force loading (20–200 N). | High-throughput industrial testing, failure analysis, aerospace alloys. |
| QualiPol Auto-2CT | Dual φ250 mm platens, independent motors, automated head. | Pneumatic head loading with digital recipe storage. | High-efficiency dual-station grinding and polishing without plate swaps. |
To prevent operational tremors from transferring to your sample as unwanted chatter marks, these machines feature heavy-duty cast bases analyzed with finite element computer modeling to absorb vibrations, accompanied by quick-change magnetic platen systems and integrated flush channels that clear away swarf instantly.
Key Parameters for Surface Quality Optimization
Achieving repeatable surface finishes relies on balancing four primary operational variables:
- Platen RPM & Relative Rotation: Counter-rotation (head spinning opposite to the platen) removes material rapidly, whereas co-rotation produces a gentler micro-finish. Models like the QualiGP™ 4/4S allow step-adjustable speeds from 0 to 1000 r/min.
- Applied Downward Force: Precise pneumatic loading, ranging from 5–60 N single force up to 20–200 N central force on the QualiGP™ 4, prevents sample tilting and sub-surface damage.
- Automated Slurry Dosing: Using automated dispensers like the QualiGP™ SF5 Slurry Feeder maintains steady lubrication across manual, semi-automatic, or fully automated cycles without wasting costly diamond suspensions.
- Z-Axis Load Monitoring: Real-time force sensing continually adjusts applied force, directly controlling over thirty percent of total surface smoothness quality!
